Compact IMU, Light Weight Orientation Meter, Wide Working Temperature Range

AH106B is MEMS inertial measure unit composed of three axis MEMS gyroscope(measure the three directions absolute angular rate of carrier), three axis accelerometer(measure the three directions linear acceleration). It output analog signal, the signal goes through 24digit A/D enhancement, sampling and analog-digital conversion, enters CPU.The aquisition CPU transmits the original code to compensation calculation CUP through serial port. The gyroscope signal is pulse signal, it enter compensation calculation CUP without conversion. The compensation calculation CUP processes calculation first, and temperature compensation, scale factor compensation, gyroscope bias&Incremental calibration bias correction, installation bias compensation, non-linearity compensation, then the angular rate and acceleration data in motion coordinate of carrier are output at last. Digital version AH106B adopts serial port directly, RS232, RS485, RS422 are available. Analog version AH106B output 0-5v or 4-20mA after digit-analog conversion of calibrated data.
Main features
Output three axis linear acceleration, gyroscope

full temp. Compensation

high speed output

Pure dynamic inertial measurement
long service life, high stability

high cost-effective
24 digit A/D sampling

High performance in anti-impact, anti-shock, waterproof
compact and light design

digital/analog type available
DC+9~36V power suppler

wide working temperature
Application
UAV posture control

vessel posture calculation

underwater robot

Agricultural machinery control

Communication vehicle radar

RC Helicopter
Truck - mounted satellite

Industrial Manipulator

robot
3D Virtual Reality

Ships electronic compass bias compensation
Camera Pan&Tilt

GPS combo

Technical index of accelerometer

 technical index of gyro

working condition

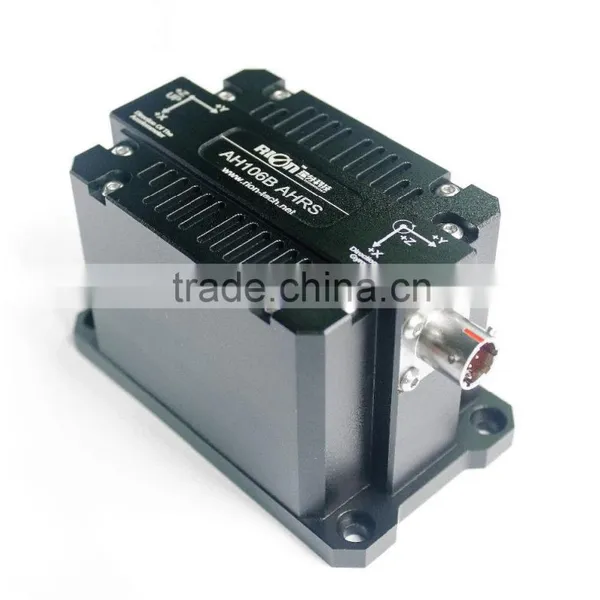

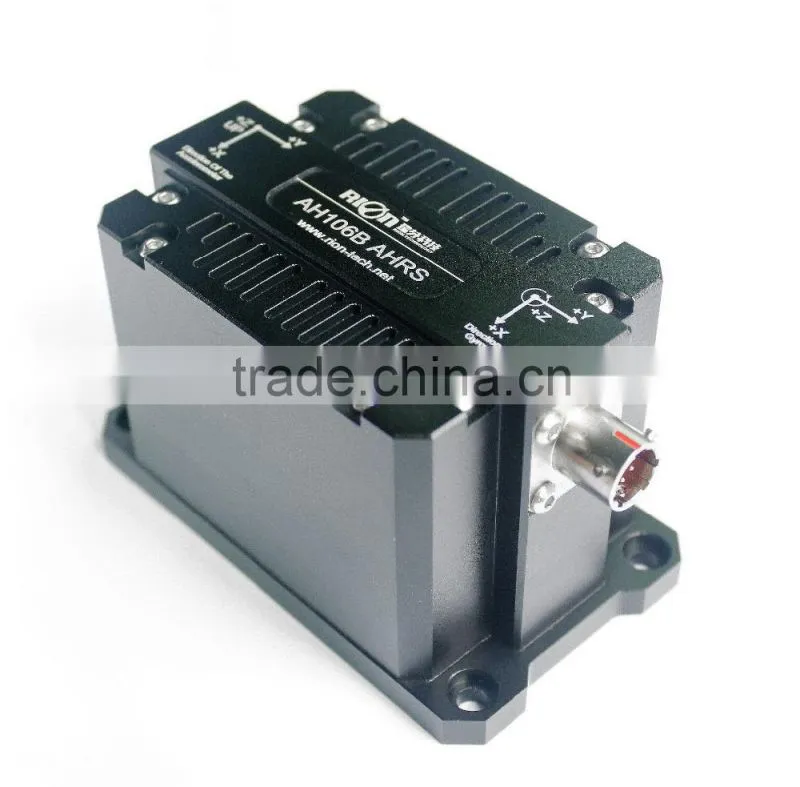

Product Show

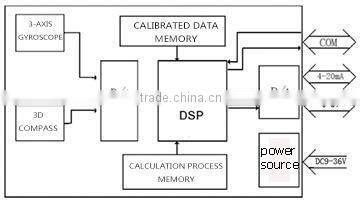

Working Principle

Shell Size Chart

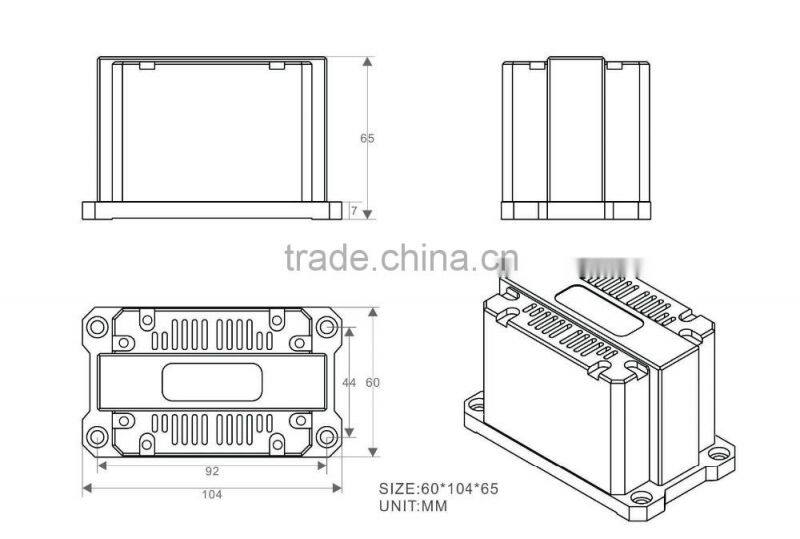

structural rigidity, aperture coupling reduce and electromagnetic shielding are achieved by whole cutting process. The shell groove design makes it beauty, lighter and better heat dissipation(natural cooling, no need of additional cooling equipment) without compromise of structural rigidity, outline drawing as below:

Size : L104mm *W60mm *H65mm

Installation precautions
Make sure correct installation, wrong installation may cause error, pay attention to one surface, two lines:
1)The Sensor mounting surface and the measured surface must be fixed closely, smoothly, stable, if mounting surface uneven likely to cause the sensor to measure the angle error.
2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible.

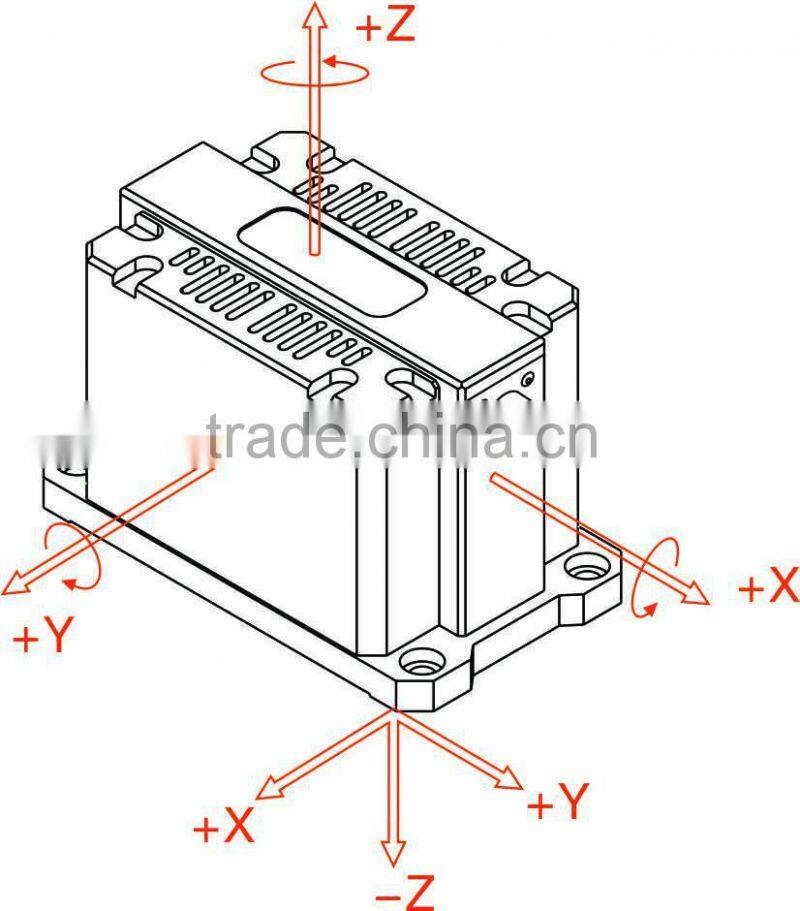

Measuring direction

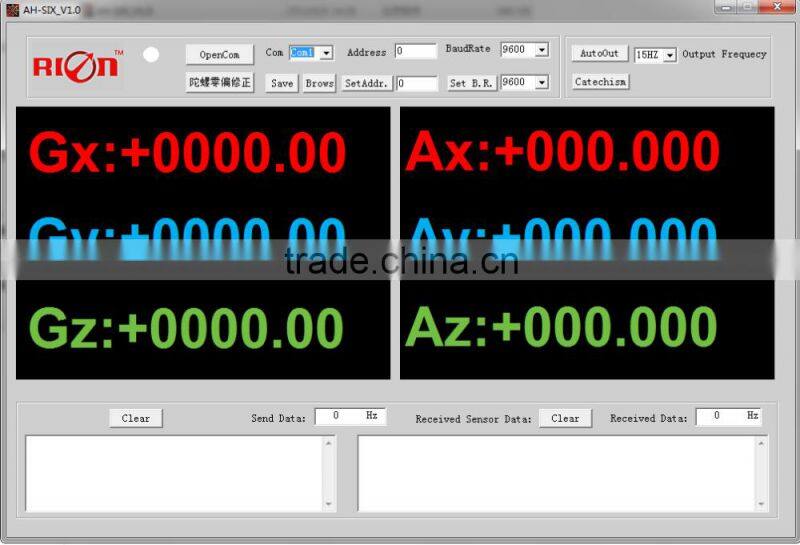

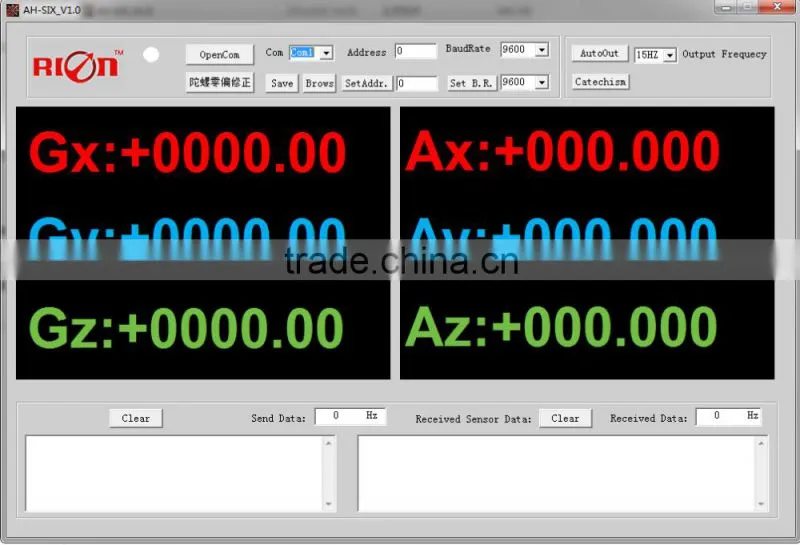

RION’s products software debug
AH106B would be equipped with professional RION’s serial port debug software. The software. In convenience of debug and demonstration, it is designed inspired by INS software experience,software engineering,promoting the reliability, efficiency, stability of product. It is easy to maintain, test. It is used VC language. User could download from Rion’s website or find universal version in other professional websites.
(analog output type do not need the software)
