Specifications
gradiometer, gradient meter1 Measuring method: Accurate pointing/ direct reading
2 Measuring angle range: -90~+90
3 more ea

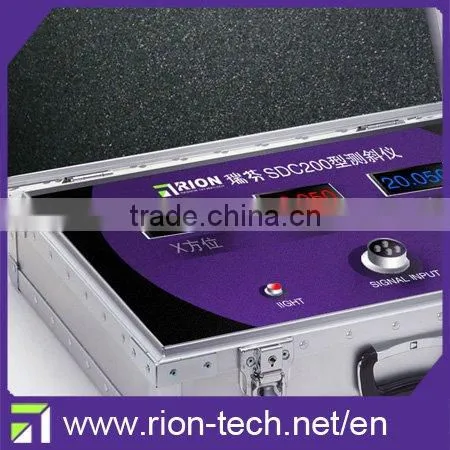

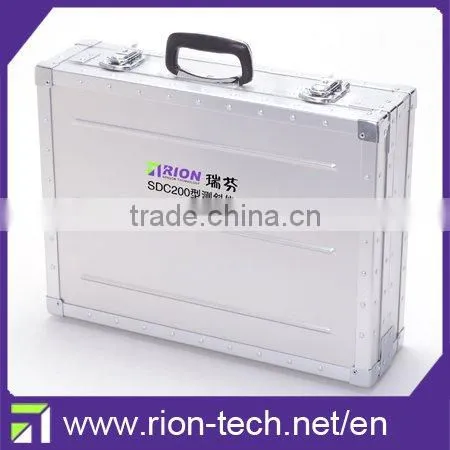

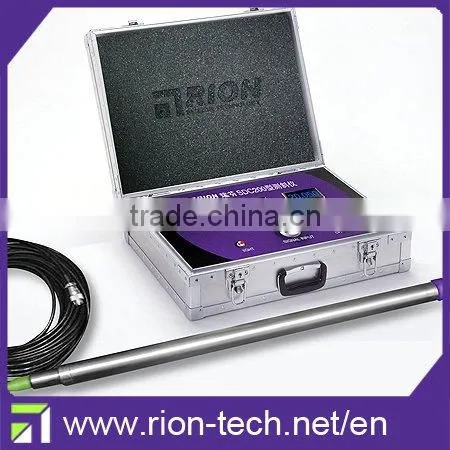

gradiometer, gradient meter Digital incliometer / gradient meter SDC200
Features
1.) In-built solid sensor component,with features of
compact structure,Light weight and high anti-vibration
2.) Capable of monitoring voltage of battery
3.) Multi-group data tested for each measured point,with
function of self-calibration;
4.) Special rechargeable battery cartridge used;
5.) Output results can be save permanently with low cost of
consumables;
In comparison to traditional pointer, SDC200 has the following advantages:
a) SDC200 adopted the 2-Axis inclinometer with high accuracy which successfully applied to defense devices. (Resolution up to0.01°)
b) Optimum design of Downhole instrument structure,Cancelled the oscillating device, which cause an operation to be more easy,and save time, When measurement inclination probe reached to destination
Applications
1. Measuring the attitude parameters of petroleum deflected well engineering;
2. Measuring the bending of geological drilling;
3. Replacing singular shot imaging inclinometer;
4,Mainly used to monitor deep footing groove, side slope, groundsill, pier and so on foundation displacement during observed.
Technical Datas
SDC200Parameters Value Units |
Measuring range of zenith angle |
-90~+90 |
° |
Measuring accuracy of zenith angle |
≤0.05 |
° |
Resolution |
0.01 |
° |
Measuring method |
Accurate pointing/ direct reading |
|
Measuring points |
Arbitrarily |
|
Power supply |
AC 220V±10% |
% |
Frequency |
50Hz±10% |
Hz |
Ground instrument working conditions |
Temperature-10~+50 |
°C |
Humidity |
≤85% |
% |
Downhole instrument working conditions |
0~85 |
°C |
Pressure |
≤25 |
MPa |
Ground instrument size |
280×310×115 |
mm |
Weight |
2.5 |
Kg |
Downhole instrument size |
Φ50×1350mm |
% |
weight |
15 |
Kg |
