Specifications
super high accuracy digital tilt sensor,dual tilt angle sensor1.Resolution 0.001 (degrees)
2.the best accuracy up to 0.003de

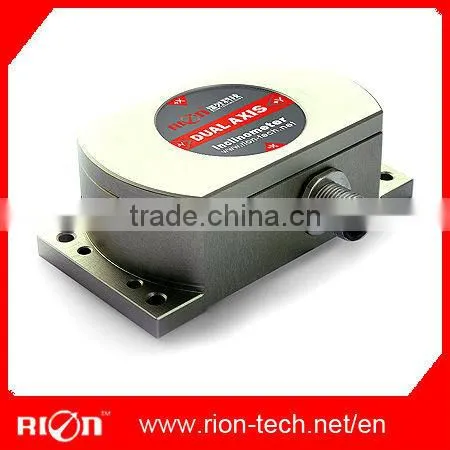

super high accuracy digital tilt sensor,dual tilt angle sensor
General Description:
Model ACA626T product increased the temperature compensation coefficient based on the precision of HCA526T from RION TECH, such as the whole temperature drift<0.08°,higher resolution 0.001,the accuracy up to 0.003°.It is built-in 24bit AD differential converter based on the five order filter and cross angle compensation algorithm. That makes the innovative product have a better stable performance.
RS485,RS232 and TTL interface port are optional.The speed output can be up to 8Hz per second.
Features:
1:dual axis tilt measuring
2:Output RS232,RS485,TTL serial interface
3:small range of precision Measuring :±1-±36(degrees)
5:DC 9~36V wide voltage power supply
6:Wide Temperature-40~+85(degrees celsius)
7:high Shockproof>20000g
8:Resolution 0.001 (degrees)
9: IP68 grade
10:small size(91*40*26mm)
Applications:
1:Satellite positioning Search
2:Rail-mobile monitoring
3:Engineeringmechanical measurement of dip angle
4:Mining mechanism,oil-well drilling equipment
5:Radardetection of vehicle platform
6:Gun Barrel angle measurement in early shooting
