Specifications
inclinometer tilt sensor, tilt sensor1.Dual axis vlotage-type
2.Long term stability<0.002degrees
3.IP68
4.DC 9-36V power su
High presicion 0.001deg voltage output inclinometer ,volatge output tilt sensor

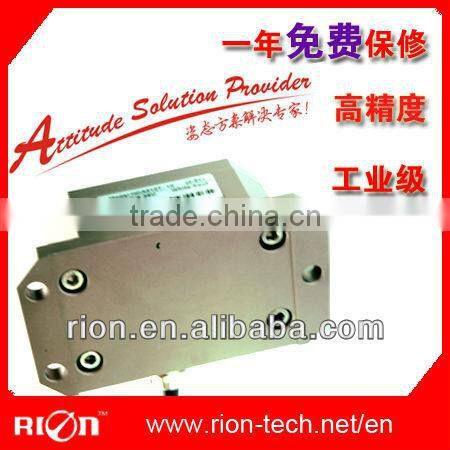

HCA520T is a dual axis inclinometer (tilt sensor,angle sensor) with voltage output. Its theory is measuring the change of Static acceleration of gravity. It used to compute the dip and pitch degree in respect to the horizontal plane. Product adopts the newest MEMS production technology, so it features high accuracy, small dimension and high anti-EM interference capability as well as under strong shock and impact. At present, it gained the consistent favourable comment of customer in the industry.
Features:
1:Dual-axis inclinometer
2:DC 9-36V wide voltage power supply
3:Shockproof>20000g
4:0-5V Output interface
5:Full Metal Jacket,IP68 protection
6:Resolution0.001°
7:Wide Temperature-40-+100(Degrees Celsius)
8:small size(90*45*29mm)
Applications are as follows,
1:Push bench shield machine deviation
2Special vehicles automatic leveling
3:Platform Vehicle,lifter
4:Medical facilities angle control
5:Satellite positioning Search
6:Underground drill posture navigate
