Specifications
HIGH ACCURACY INLINOMETER1.Dual-axis current-type
2.Long term stability<0.02degrees
3.IP67 protect clas
4.DC9-36V power
inclinometer level,current output inclinomete,dual axes inclinometer
Product Description:

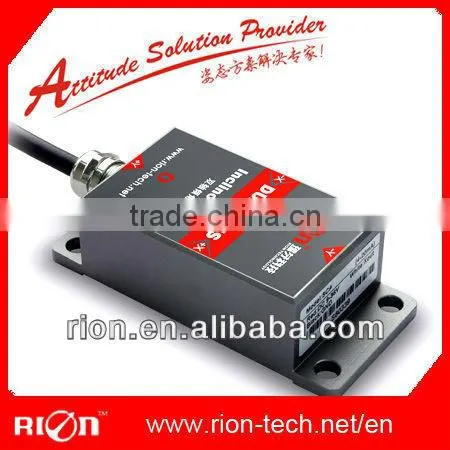

SCA128T is a dual-axis inclinometer(tilt sensor,clinometer) with current output, standard current outputs 4-20 mA. Product adopts the newest MEMS production technology, so it can get the precise compensation and correction for the temperature and nonlinearity error. long term stability less than 0.014°, high accuracy ,small dimension, under strong shock and impact, inner radio frequency immunity and high anti-EM interference capability as well as long distance transmission stability data. In particular, it is suited for underground non-excavation machinery and another adverse industrial circumstances.
Besides technical parameter is the better than common product in the market, it adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.
Features:
1:Dual-Axis inclinometer
2:4-20mA Output interface
3:Measuring range:±1-±85(degrees)
4:Long term stability<0.02(degrees)
5:DC 9~36V wide voltage power supply
6:Wide Temperature-40~+100(degrees celsius)
7:Shockproof>20000g
8:Resolution0.0025(degrees)
9:Full Metal Jacket,IP67 protection class
10:small size(91*40*26mm)
Applications:
1:Push bench shield machine deviation
2Special vehicles automatic leveling
3:Platform Vehicle,lifter
4:Medical facilities angle control
5:Satellite positioning Search
6:Underground drill posture navigate
Technical Data
| Parameters Conditions SCA128T-10 SCA128T-30 SCA128T-60 SCA128T-90 unit |
Measuring range |
|
±10 |
±30 |
±60 |
±90 |
° |
Measuring axis |
|
X,Y |
X,Y |
X,Y |
X,Y |
|
Zero output |
0° output |
12 |
12 |
12 |
12 |
mA |
Resolution |
|
0.0025 |
0.0025 |
0.0025 |
0.0025 |
° |
Absolute accuracy |
|
0.02 |
0.05 |
0.08 |
0.1 |
° |
|
Long term stability |
|
0.05 |
0.05 |
0.05 |
0.05 |
|
|
Zero temperature coefficient |
-40~85° |
±0.006 |
±0.006 |
±0.006 |
±0.006 |
°/°C |
Sensitivity temperature coefficient |
-40~85° |
≤100 |
≤100 |
≤100 |
≤100 |
ppm/°C |
Power on time |
|
0.5 |
0.5 |
0.5 |
0.5 |
S |
Response time |
|
0.05 |
0.05 |
0.05 |
0.05 |
s |
|
Response frequency response frequence |
|
1~20 |
1~20 |
1~20 |
1~20 |
Hz |
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|||||
MTBF |
≥50000hours/times |
|||||
Insulation Resistance |
≥100M |
|||||
Shockproof |
100g@11ms,3Times/Axis(half sinusoid)) |
|||||
Anti-vibration |
10grms,10~1000Hz |
|||||
Protection glass |
IP67 |
|||||
Cables |
Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables4*0.4mm2 |
|||||
Weight |
120g(without cable) |
|||||
* This Technical data only list ± 10 °, ± 30 °, ± 60 °, + 90 ° series for reference, other measuring range please refer to the adjacent parameters
