ACA620T High Precision Two Axis Analog Type Inclinometer With Stable Performance Output Mode Optional

Specifications

ACA620T High Precision Two axis Analog Type Inclinometer With Stable Performance Output Mode Optional

General Description

 ACA620T is a high precision & full temperature compensation dual-axis inclinometer with analog voltage output, high-precision 24bit A / D differential converter inside the product, to ensure the the products output voltage signal linearity, and users no need to do linearity correction by themselves in the future , install then to use, stability and reliability ! In addition, because of ACA620T system integrates high-resolution temperature sensor, with the MCU central processing system secondary temperature compensation, full temperature zero drift can be controlled to 0.0008 °/°C ,normal temperature small measuring range the most accurate up to 0.002 °, in domestic the counterparts products with absolute competitive advantage.

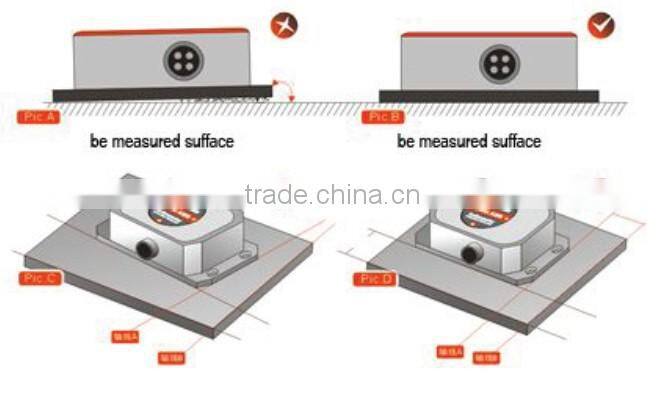

   Non-contact installation features make ACA610T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to operate, easy to install. Newest MEMS high-technology for production , high-precision, small size, with strong ability resistance to external electromagnetic interference and to withstand shock and vibration, has been widely used in the industrial and military fields!

Features

• Dual-Axis Inclinometer
• Measuring Range :±1~±30° optional

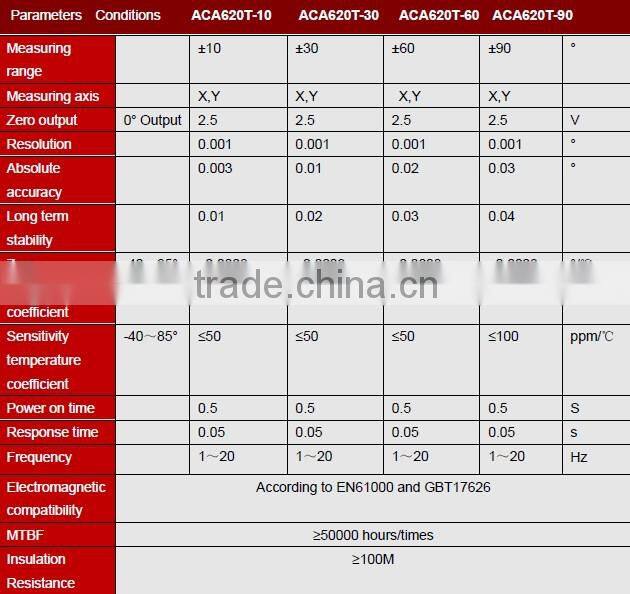

• Accuracy: refer to the technical data

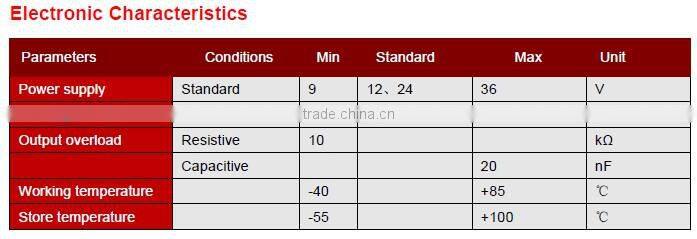

• Wide voltage input: 9~36V
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance >2000g
• High Resolution: 0.001°
• Temperature drift 0.0008°/°C

Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Precise instrument level control
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Based on the angle direction measurement
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
