+/-5V or 0-10V Output High Precision Single axis Inclinometer With IP67 Waterproof
Features
- Single-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Accuracy: refer to the technical data
- Wide voltage input: 9~36V
- Output interface :0~5V
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance >2000g
- High Resolution: 0.001°

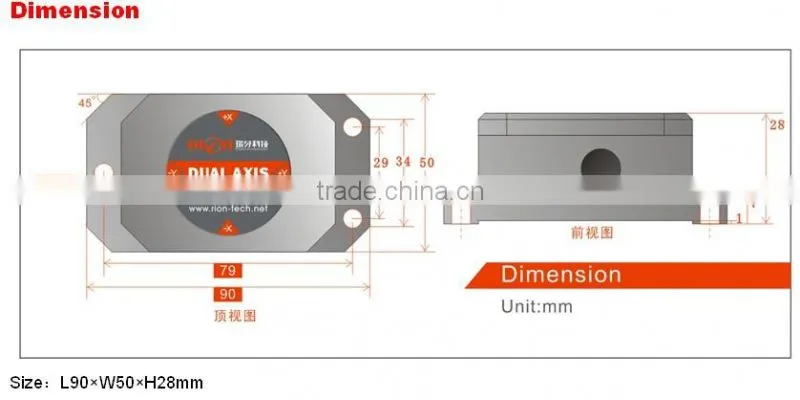

- Small Volume : L90mm×W50mm×H28mm(customized)
Application
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Aerial platform vehicle,lifter safety & protection
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Based on the angle direction measurement
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
- Mining machinary , oil-well drilling equipment
- Equipment level control
- Alignment control , curve control
Parameters :
Measuring range |
|
±10 |
±30 |
±60 |
±90 |
° |
Measuring axis |
|
X |
X |
X |
X |
|
Zero output |
0° Output |
2.5 |
2.5 |
2.5 |
2.5 |
V |
Resolution |
|
0.001 |
0.001 |
0.001 |
0.001 |
° |
Absolute accuracy |
|
0.005 |
0.01 |
0.02 |
0.05 |
° |
|
Long term stability |
|
0.01 |
0.02 |
0.05 |
0.08 |
|
|
Zero temperature coefficient |
-40~85° |
±0.002 |
±0.002 |
±0.002 |
±0.002 |
°/℃ |
Sensitivity temperature coefficient |
-40~85° |
≤50 |
≤50 |
≤50 |
≤100 |
ppm/℃ |
Power on time |
|
0.5 |
0.5 |
0.5 |
0.5 |
S |
Response time |
|
0.05 |
0.05 |
0.05 |
0.05 |
s |
|
Response frequency response frequence |
|
1~20 |
1~20 |
1~20 |
1~20 |
Hz |
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|||||
MTBF |
≥50000 hours/times |
|||||
Insulation Resistance |
≥100M |
|||||
Shockproof |
100g@11ms,3Times/Axis(half sinusoid) |
|||||
Anti-vibration |
10grms,10~1000Hz |
|||||
Protection glass |
IP67 |
|||||
Cables |
Standard 1M length,waterproof,wide temperature, Shielded cables4*0.4mm2 air-plug connector |
|||||
Weight |
150g(without cable) |
|||||
