LCA316T Low Cost Mini Tiltmeter With Digital Output Suitable For Harsh Industry Environment Using

Specifications

 LCA316T Low cost Mini Tiltmeter With Digital Output Suitable For Harsh Industry Environment Using

General Description

LCA316Tseries products which launched by RION company is a new generation digital type small size MEMS inclinometer, Built-in gravity tilt unit, by measuring the static gravity acceleration then convert into the inclination change. Thus can measure the inclinometer output relative to the horizontal tilt or pitch tilt. Output RS232, RS485 or TTL level interface standard optional. Because of built-in MCU control system, that make the sensor output linearity get two amendments, made up the analog type precision drop because of insufficient correction led to .

This product adopts the non-contact measuring principle, can real-time output the current attitude angle, simple to use, no need to find the relative variation of the two surface for mounting. It is a ideal choice for Industrial automation control and platform measuring attitude,strong ability of resisting external electromagnet interference, can be adapted to long-term working in the industry harsh environment. This product is suitable for the static and slow changes dynamic measurement, not suitable for rapid changes dynamic measuring

Features:

• Single-Axis Inclinometer
• Max measuring Range :360deg
• Long-term stability 0.2°
• DC+5V input

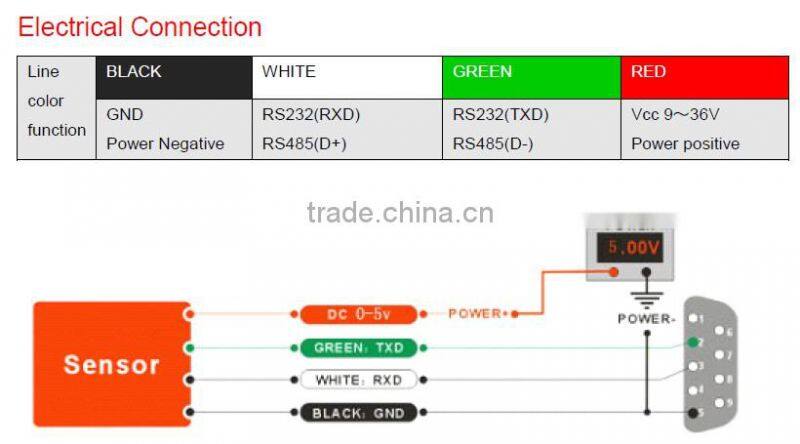

• Output mode RS232/RS485/TTL (optional)
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration perfermance >3500g
• Resolution: 0.05°

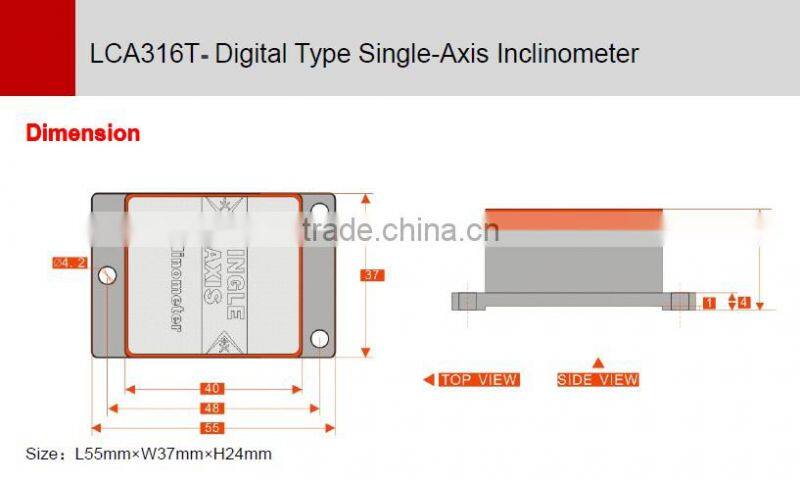

• Small size : 55×37×24mm(customized)

Application:

• Electric blind man chair leveling
• Cloud deck operating monitor
• Satelite antenna positioning
• Medical equipment leveling
• Car Chassis Measurement
• Four - wheeled positioning system
• engineering mechanical measurement of dip angle

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc
