Specifications
High Precision Tiltmeter1.Dual axis digital-type
2.Long term stability<0.003degrees
3.IP68
4.DC 9-36V power
HCA526T High Precision Tiltmeter With 0.002deg Accuracy MADE IN CHINA
HCA526T is a Dual-Axis inclinometer (tilt sensor,angle sensor)which is researched and produced by Shenzhen RION with resolution:0.001degree , The maximum measuring range is±85degree. This series Output through serial interface RS232 ,RS485 or TTL.
As the built-in ADI's high-precision digital temperature sensor, Therefore,the output angle value have been revised again within the working temperature, To ensure high repeatability of products in wide temperature.
Sensor angle response speed is 20Hz, and has five filters. Product belongs to real industral grade and is suited for various of adverse industrial control circumstances it features stable and reliable performance, good expansibility and many kinds of output ways to be chosen.
Features:
1:Dual-Axis inclinometer
2:DC 9-36V wide voltage power supply
3:Shockproof>20000g
4:Output RS232,RS485,TTL serial interface
5:Full Metal Jacket,IP68 protection
6:Resolution0.001°
7:Wide Temperature-40-+85(Degrees Celsius)

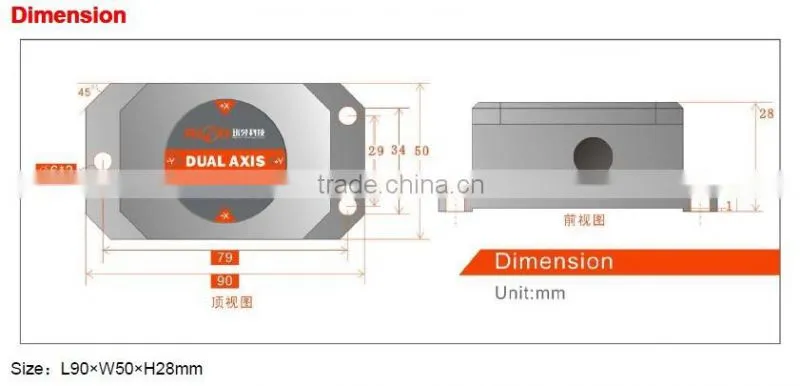

8:small size(90*45*29mm)
Applications:
1:Satellite positioningSearch
2:Rail-mobile monitoring
3:Engineeringmechanical measurement of dip angle
4:Mining mechanism,oil-well drilling equipment
5:Radardetection of vehicle platform
6:Gun Barrel angle measurement in early shooting

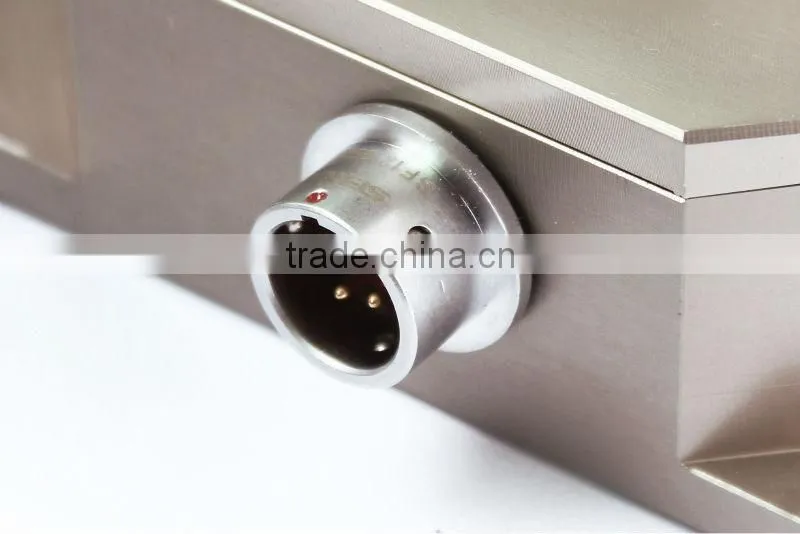

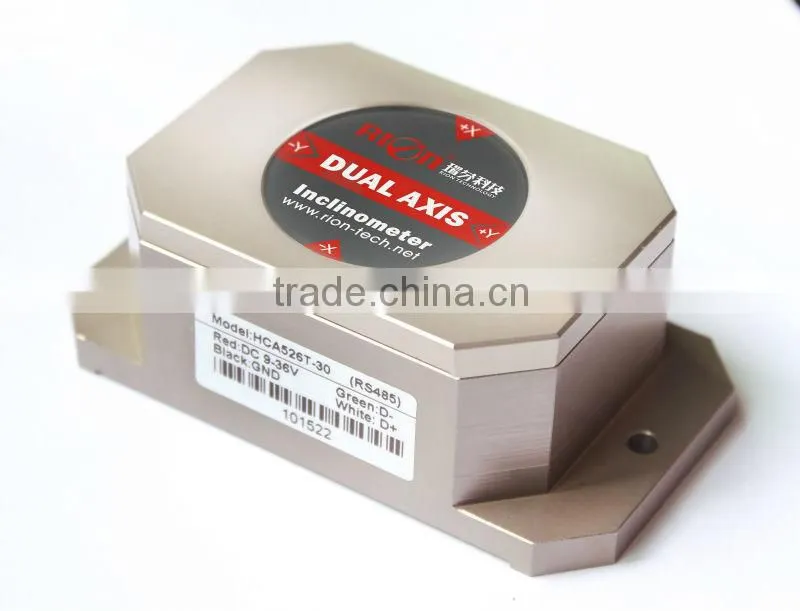

Product photos :
Our Company view :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
