Specifications
1.Dual-Axis Inclinometer2.Measuring Range : +/-1 ~+/-30deg optional
3.IP67 protection class
4.Temperature drift : 0.0008

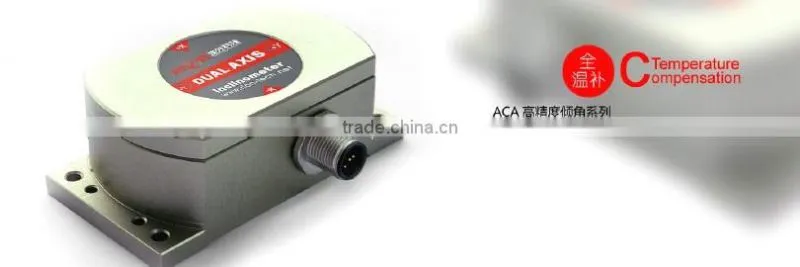

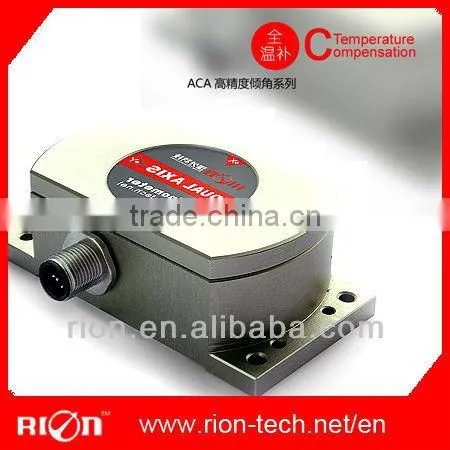

ACA628T Ultra Precision Dual axis 4-20mA Level Sensor More Suitable For Long-term Field Monitoring and Leveling
General Description
ACA628T is a high precision & full temperature compensation dual-axis inclinometer with analog current output,Newest MEMS high-technology for production, high-precision 24bit A / D differential converter inside the product, to ensure the the products output current signal linearity, and users no need to do linearity correction by themselves in the future , install then to use, stability and reliability ! In addition, because of ACA618T system integrates high-resolution temperature sensor, with the MCU central processing system secondary temperature compensation, full temperature zero drift can be controlled to 0.0008 °/°C ,normal temperature and small measuring range the most accurate up to 0.003 °, built-in miniature solid pendulum, by measuring the static gravity field changes then convert to angle change, the change in output current (4-20mA). Compared to the voltage type inclinometer, ACA628Toutput usingstandard industrial electrical interface4 ~~ 20mA, longer transmission distance up to 2Km.

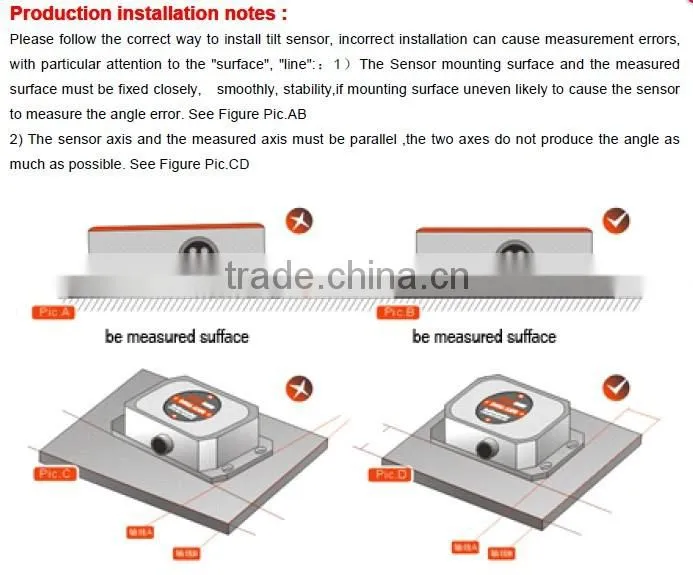

Non-contact installation features make ACA618T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to operate, convenient to install .With strong ability resistance to external electromagnetic interference and to withstand shock and vibration, in domestic the counterparts products with absolute competitive advantage.
Features
- Dual-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Wide voltage input: 9~36V
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance >2000g
- High Resolution: 0.001°
- Out mode: 4~20mA(customized)
- Temperature drift: 0.0008°/°C
Application:
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Laser equipment position
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Precise machine tool level control
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
