MCA Smallest Super Cheap Single /Dual Axis Inclinometer Tilt Sensor With 0-5V/4-20mA/RS232/RS485TTL Output Optional With IP67

MCA Smallest Super Cheap Single /Dual axis Inclinometer Tilt Sensor With 0-5V/4-20mA/RS232/RS485TTL  Output Optional  With IP67

Desc.

MCA426 is a new version of small size digital type MEMS tilt sensor. it measure static gravity by buit-in accelerometer and convert into tilt change, and then it could measure the tilt and pitch relative to horizontal level. output is optional.Due to built-in MCU control system, the output linearity get two endments,ensuring the accuracy.

Features :

Range------------------------ ±10 ±30 ±60 ±90 ° (optional )
Measuring axis ---------X, Y
Resolution ------------------ 0.05 °
Accuracy(@25℃) 0.3 ~ 0.5 °

Zero temp.drift -------------±0.02 °/℃
Starting time ----------------0.2 S
Response time ------------0.01 S
Output rate ------------------5Hz~100Hz (optional)
Output signal----------------0-5V/4-20mA/RS232/RS485TTL (optional )
Working temp--------------- -40~+85℃
Dimension------------------- L61×W35×H21mm
Water proof ------------------IP67

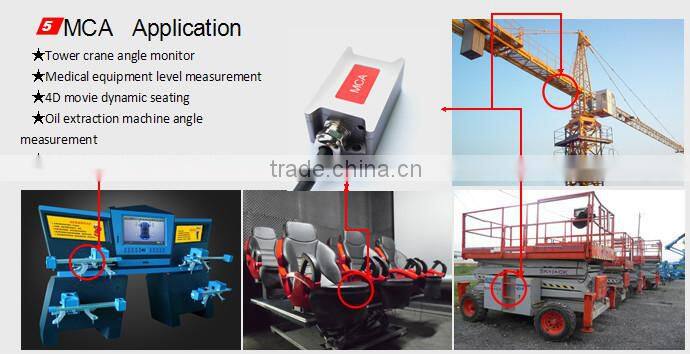

Application :

• Tower crane angle monitor
• Medical equipment level measurement
• 4D movie dynamic seating
• Oil extraction machine angle measurement
• Small machinery vehicle position

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .

Other more information please visit our website :
