HCA520T Industry Used High Accurate Voltage Type Inclinometer Output Optional Inclinometer

Specifications

HCA520T Industry Used High Accurate Voltage type Inclinometer Output Optional  inclinometer

HCA520T is a dual axis inclinometer (tilt sensor,angle sensor) with voltage output. Its theory is measuring the change of Static acceleration of gravity. It used to compute the dip and pitch degree in respect to the horizontal plane. Product adopts the newest MEMS production technology, so it features high accuracy, small dimension and high anti-EM interference capability as well as under strong shock and impact. At present, it gained the consistent  favourable comment of customer in the industry.

Features:
1:Dual-axis inclinometer
2:DC 9-36V wide voltage power supply
3:Shockproof>20000g
4:0-5V Output interface
5:Full Metal Jacket,IP68 protection

6:Resolution0.0025°
7:Wide Temperature-40-+100(Degrees Celsius)
8:small size(90*45*29mm)

Applications

1:Push bench shield machine deviation
2Special vehicles automatic leveling
3:Platform Vehicle,lifter
4:Medical facilities angle control
5:Satellite positioning Search

6:Underground drill posture navigate

Technical Data

* This Technical data only list ± 10 °, ± 30 °, ± 60 °, + 90 ° series for reference, other measuring range please refer to  the adjacent parameters

Electrical Connection

Mechanical Parameters

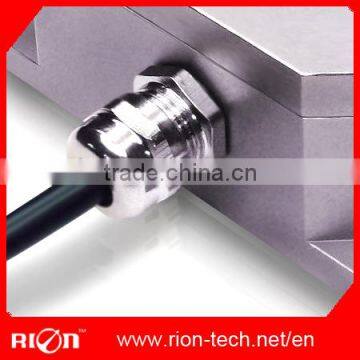

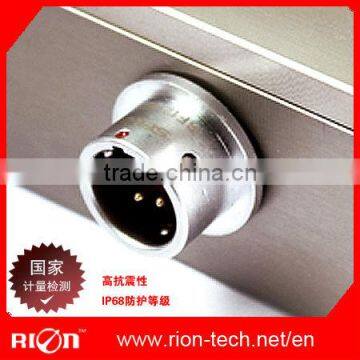

Connectors:1m cable with air-plug connector(customized)

 Protection glass:IP67

 Enclosure material :Aluminum Oxide

 Installation :3*M4 screws
