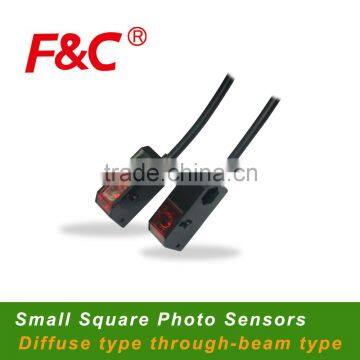

FPJ series photo sensors switches, small rectangle, finger tip size,small infrared sensors

FOB Price

USD $12 - $18 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.

Product Description

Model	FPJ-T21 FPJ-T21/15D FPJ-T22 FPJ-T22/15D	FPJ-D21 / FPJ-D21/15D FPJ-D22 / FPJ-D22/15D
Scanning distance	1500mm	100±10mm
Emitting light	RedLED:630nm
Operating voltage	DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO/N2=NPN.NC P=PNP.NPN/P2=PNP.NC
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C~+45°C(No freezing allowed )
Ambient hunidity	35%~95%RH
Storage temperarure	-10°C~+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ4×2M/3-wires, φ4×2M/2-wires
Protection degree	IP40
Weight	Approx.18.5g

Diagram
