DR18-S500/S1000 Series M18 Photoelectric Sensor, 360 Degrees LED View, Photoelectric Switch Sensor, Through Beam Type.

F&C Sensing Technology (Hunan) Co., Ltd.

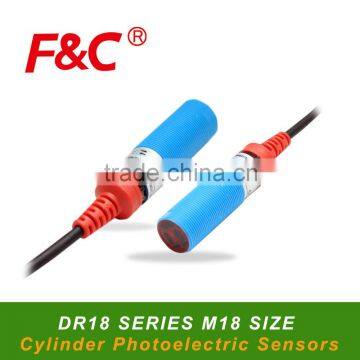

DR18-S500/S1000 Series M18 Photoelectric Sensor, 360 Degrees LED View, Photoelectric Switch Sensor, Through Beam Type. thumbnail-1
DR18-S500/S1000 Series M18 Photoelectric Sensor, 360 Degrees LED View, Photoelectric Switch Sensor, Through Beam Type. photo-1
US$ 15 - 25 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
DR18-S500/S1000 through-beam series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number DR18-S500/S1000 through-beam series
Usage Position Sensor
Theory Optical Sensor
Output Switching Transducer

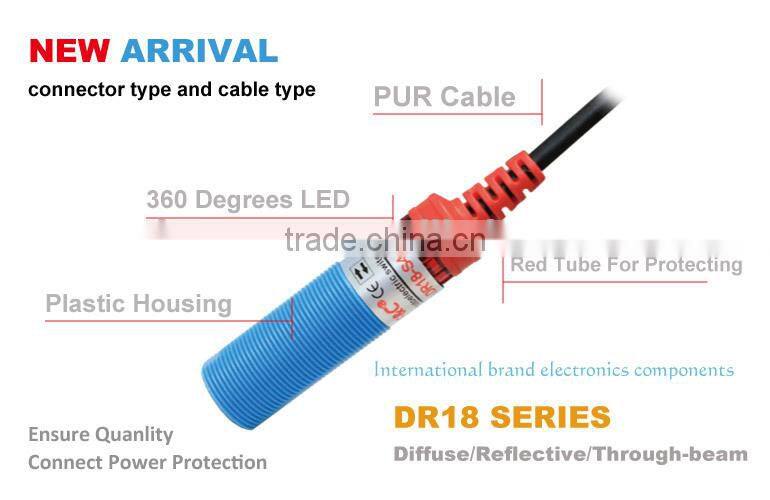

 DR18-S500/S1000 Series M18 Photoelectric Sensor, 360 Degrees LED view, Photoelectric Switch Sensor, Through beam Type.


Product Description




Category

Model

Detection mode

Detection distance

Detectable
objects

Entry cble

 Diffuse typeDR18-S500N
DR18-S500N/15D
DR18-S500Z
DR18-S500ZN/15D		NPN.NO500cmφ3 non-transparentφ4×2M/3-wires
(without "NC")

φ4×2M/4-wires
(with "NC")
DR18-S500N2
DR18-S500N2/15D		NPN.NC
DR18-S500P
DR18-S500P/15D
DR18-S500ZP
DR18-S500ZP/15D		PNP.NO
DR18-S500P2
DR18-S500P2/15D		PNP.NC
DR18-S500NC
DR18-S500NC/15D		NPN.NO.NC
DR18-S500PC
DR18-S500PC/15D		PNP.NO.NC
DR18-S1000N
DR18-S1000N/15D
DR18-S1000Z
DR18-S1000ZN/15D		NPN.NO1000cmφ3 non-transparent
DR18-S1000N2
DR18-S1000N2/15D		NPN.NC
DR18-S1000P
DR18-S1000P/15D
DR18-S1000ZP
DR18-S1000ZP/15D		PNP.NO
DR18-S1000P2
DR18-S1000P2/15D		PNP.NC
DR18-S1000NC
DR18-S1000NC/15D		NPN.NO.NC
DR18-S1000PC
DR18-S1000PC/15D		PNP.NO.NC

note:with"/15D" mean with 150mm cable connector type, "Z" mean anti-sunshine type.

Emitting light
Red LED:630nm
Operating voltage
DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption
15mA Max
Load current
100mA Max at DC 24V
Output type
N=NPN.No/N2=NPN.NC P=PNP.NO/P2=PNP.NC NC=NPN.NO.NC PC=PNP.NO.NC
Protection circuit

Reversed supply ciruit protection,short citcuit protection output

Response time
0.3 ms Max
Insulation resistance
20M Ωmin.(DC500V)
Voltage withstandatility
AC1000V 60Hz for 60 Sec
Operating temperature
-10°C~+45°C(No freezing allowed )
Ambient hunidity
35%~85%RH
Storage temperarure
-10°C~+55°C(No freezing allowed )
Storage hunidity
35%~95%RH
Material
ABS
Wiring method
φ4×2M/3-wires/φ4×2M/2-wires/φ4×2M/4-wires
Protection degree
IP66
Weight
Approx.20g

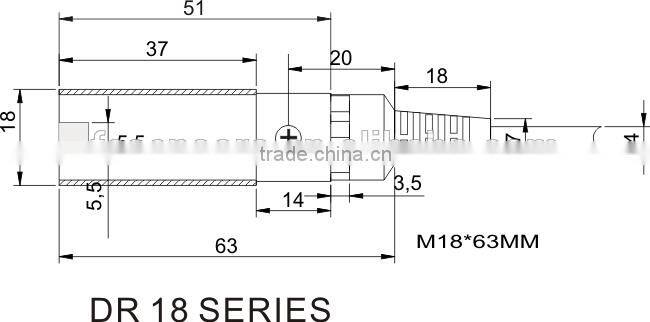

Diagram


 DR18-S500/S1000 Series M18 Photoelectric Sensor, 360 Degrees LED view, Photoelectric Switch Sensor, Through beam Type.DR18-S500/S1000 Series M18 Photoelectric Sensor, 360 Degrees LED view, Photoelectric Switch Sensor, Through beam Type.
