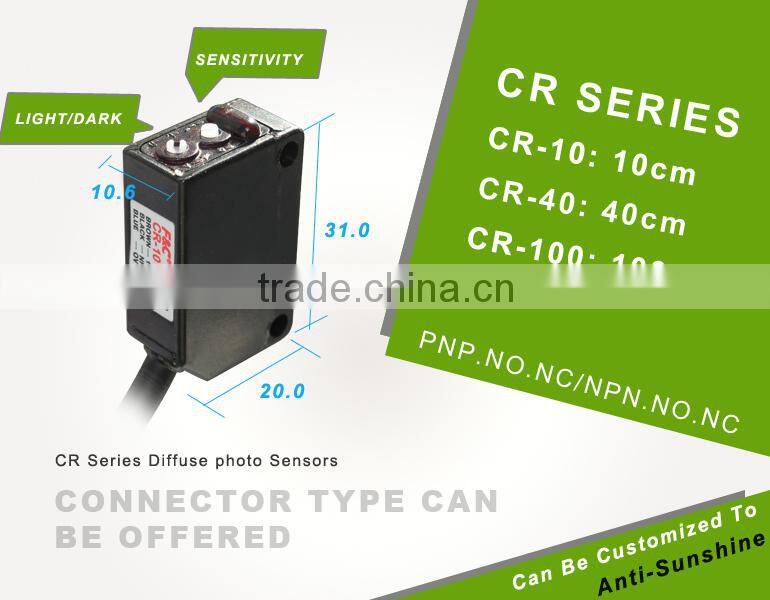

CR-10/40/100 series rectangular photoelectirc sensors, 10cm/40cm/100cm diffuse photoelectric switches
USD $12 - $18
/ Piece
5 Pieces(Min.Order)
- 20000 Box / Boxes per Month
- Guangzhou Shenzhen
- Credit Card
You May Like
-
Transparent Film Or Glass Bottle Detection, YS3F-T100N Series photo Sensor, With a Reflector Type.
-
FC-spx315, U Shape Photo Sensors Switches, 15mm sensing slot, Fork Sensor, Slot Sensor.
-
5vDC Can Be Offered, 5mm Slot, Circuit Protected, 12~24VDC U Shape Sensor, NO/NC Together
-
F&C With Tube For Protecting 4-wire, 2m Cable, NPN/PNP Together, FC-spx305 Series, Groove Sensor.
-
5mm Slot photoelectric Sensor, 4-wire, 2m Cable,12~24VDC , FC-spx304 Series, NPN/PNP Output.
-
U photoelectric Sensor, Bubble Detection, Position Detection, FC-SPX306 series 2M 4-Wire PUR cable, NPN/PNP Offered.
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | CR diffuse series | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Switching Transducer |
Product Description
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description
| Category | Model | Detection mode | Detection distance | smallest objects | Entry cable |
| Diffuse | CR-10 CR-10/15D | NPN.NO.NC | 10cm | 10mm*10mm white paper | φ4×2M/3-wires)+φ4×2M/2-wires |
| CR-10P CR-10P/15D | PNP.NO.NC | ||||
| CR-40 CR-40/15D | NPN.NO.NC | 40cm | 10mm*10mm white paper | φ4×2M/3-wires)+φ4×2M/2-wires | |
| CR-40P CR-40P/15D | PNP.NO,NC | ||||
| CR-100 CR-100/15D | NPN.NO.NC | 100m | 10mm*10mm white paper | φ4×2M/3-wires | |
| CR-100P CR-100P/15D | PNP.NO.NC |
| Emitting light | Red LED:630nm |
| Operating voltage | DC:10~30VDC±10%(Ripple P-P:10%Max) |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC 24V |
| Output type | N=NPN.NO.NC P=PNP.NO.NC |
| Protection circuit | Reversed supply ciruit protection,short citcuit protection output |
| Response time | 0.3 ms Max |
| Insulation resistance | 20M Ωmin.(DC500V) |
| Voltage withstandatility | AC1000V 60Hz for 60 Sec |
| Operating temperature | -10°C~+45°C(No freezing allowed ) |
| Ambient hunidity | 35%~85%RH |
| Storage temperarure | -10°C~+55°C(No freezing allowed ) |
| Storage hunidity | 35%~95%RH |
| Material | ABS |
| Wiring method | φ4×2M/3-wires/φ4×2M/2-wires |
| Protection degree | IP64 can customied IP67 |
| Weight | Approx.20g |

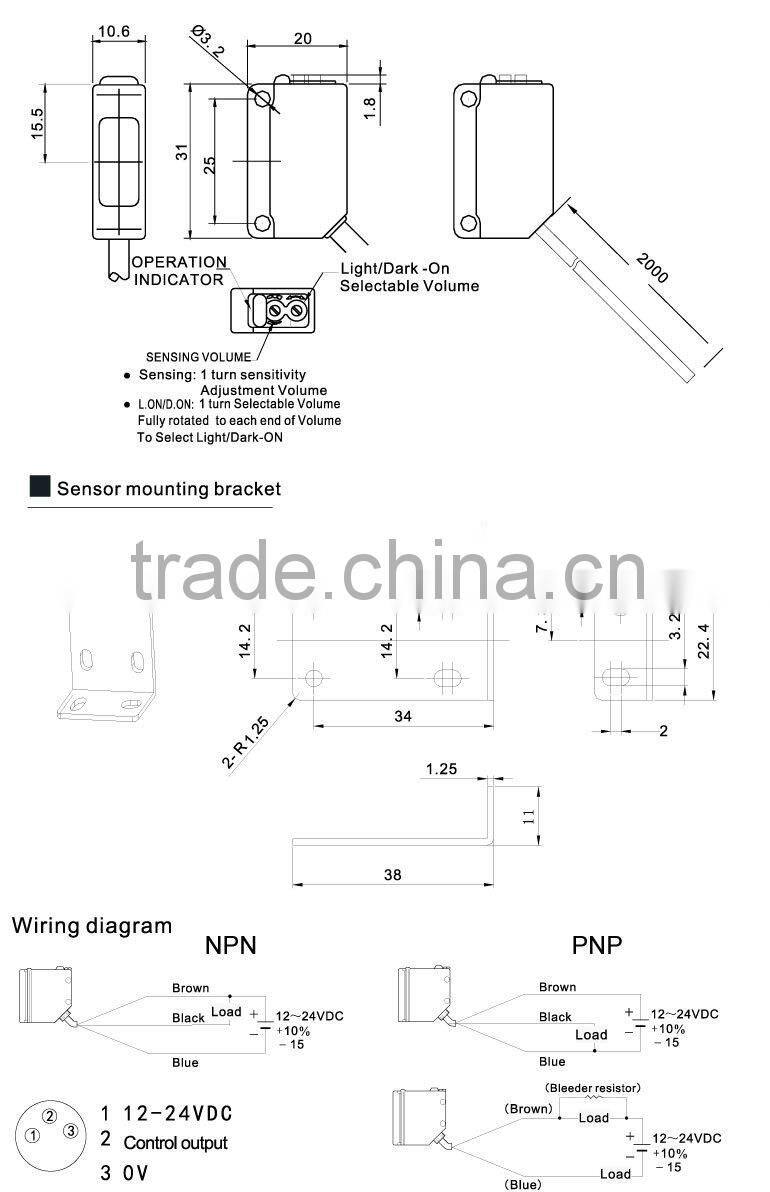

Diagram
