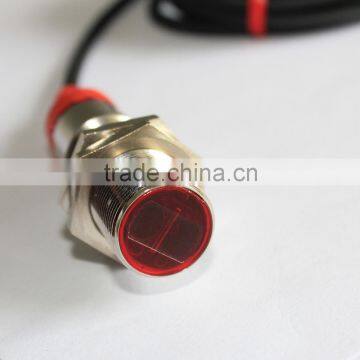

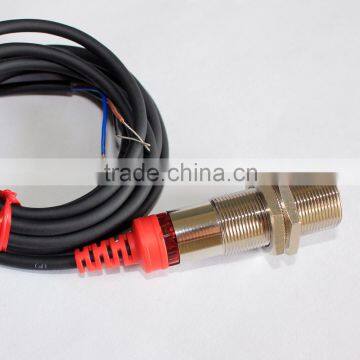

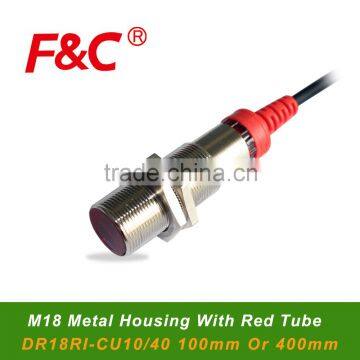

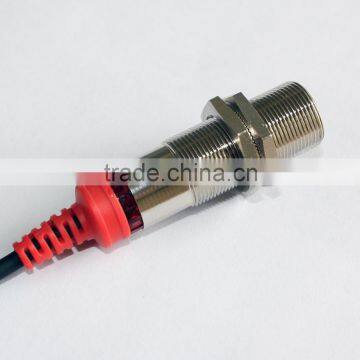

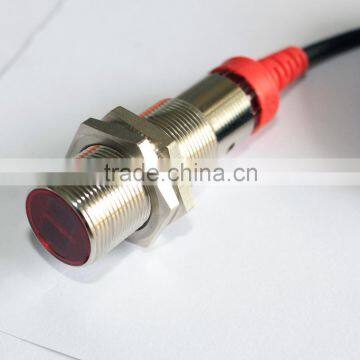

DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor

F&C Sensing Technology (Hunan) Co., Ltd.
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor thumbnail-1
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor thumbnail-2
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor thumbnail-3
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor thumbnail-4
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor thumbnail-5
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor photo-1
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor photo-2
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor photo-3
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor photo-4
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor photo-5
US$ 10 - 25 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
DR18-RI-CU10/40
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number DR18-RI-CU10/40
Usage Position Sensor
Theory Optical Sensor
Output Switching Transducer



Product Description




Category

Model

Detection mode

Detection distance

Detectable
objects

Entry cble

 Diffuse typeDR18RI-CU10N R2M
DR18RI-CU10N/15D R2M		NPN.NO10cm10*10 mm
white paper		φ4×2M/3-wires
DR18RI-CU10N2 R2M
DR18RI-CU10N2/15D R2M		NPN.NC
DR18RI-CU10P R2M
DR18RI-CU10P/15D R2M		PNP.NO
DR18RI-CU10P2 R2M
DR18RI-CU10P2/15D R2M		PNP.NC
DR18RI-CU40N R2M
DR18RI-CU40N/15D R2M		NPN.NO40cm10*10 mm
white paper
DR18RI-CU40N2 R2M
DR18RI-CU40N2/15D R2M		NPN.NC
DR18RI-CU40P R2M
DR18RI-CU40P/15D R2M		PNP.NO
DR18RI-CU40P2 R2M
DR18RI-CU40P2/15D R2M		PNP.NC

note:with"/15D" mean with 150mm cable connector type, "Z" mean anti-sunshine type.

Emitting light
Red LED:630nm
Operating voltage
DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption
15mA Max
Load current
100mA Max at DC 24V
Output type
N=NPN.No/N2=NPN.NC P=PNP.NO/P2=PNP.NC NC=NPN.NO.NC PC=PNP.NO.NC
Protection circuit

Reversed supply ciruit protection,short citcuit protection output

Response time
0.3 ms Max
Insulation resistance
20M Ωmin.(DC500V)
Voltage withstandatility
AC1000V 60Hz for 60 Sec
Operating temperature
-10°C~+45°C(No freezing allowed )
Ambient hunidity
35%~85%RH
Storage temperarure
-10°C~+55°C(No freezing allowed )
Storage hunidity
35%~95%RH
Material
ABS

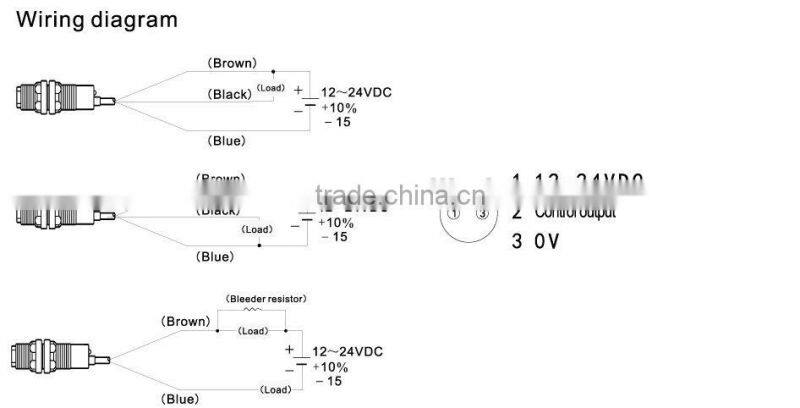

Wiring method
φ4×2M/3-wires/φ4×2M/2-wires/φ4×2M/4-wires
Protection degree
IP66
Weight
Approx.20g

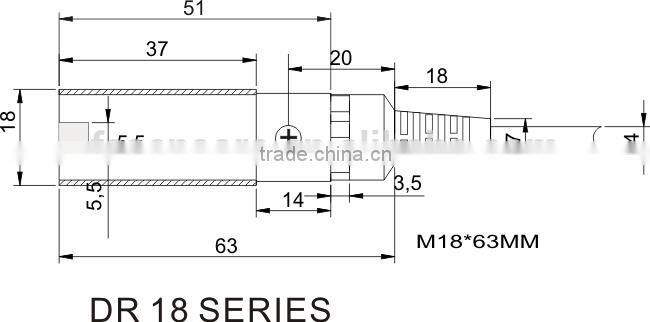

Diagram


 DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo SensorDR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo Sensor
