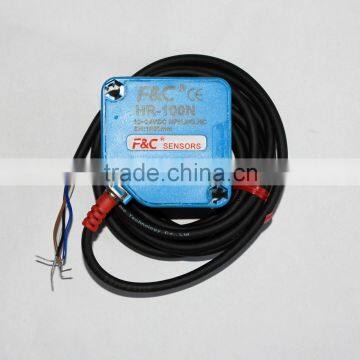

HR Series Rectangular Shape Photoelectric Sensor, DIffuse/Retro Reflective/Through-beam Photo Sensor

F&C Sensing Technology (Hunan) Co., Ltd.

US$ 18 - 25 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

F&C

Model Number:

CR500/1000 throgh-beam series

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name F&C

Model Number CR500/1000 throgh-beam series

Usage Position Sensor

Theory Optical Sensor

Output Switching Transducer

PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.

Product Description

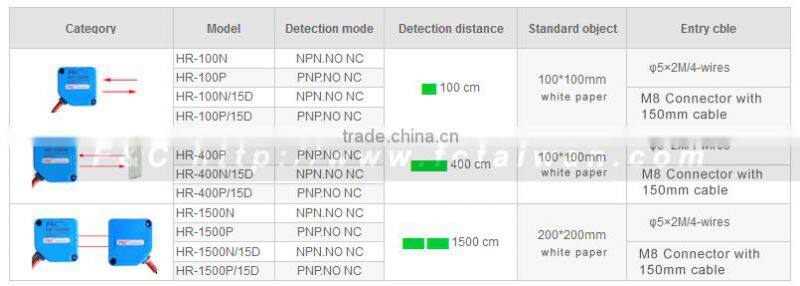

Specifications	Diffuse	Retro Reflective	Through-beam
Model	HR-100N HR-100N/15D HR-100P HR-100P/15D	HR-400N HR-400N/15D HR-400P HR-400P/15D	HR-1500N HR-1500N/15D HR-1500P HR-1500P/15D
Scanning Distance	100cm	400cm	1500cm
Emitting light	850mm infrared
Operating voltage	DC:12~24VDC±10%(Ripple P-P:10%Max)
Current consumption	25mA Max
Load currents	100mA Max at DC 24V
Output type	N=NPN.No.NC OR P=PNP.NO.NC
Response time	below 1ms
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-25°C~+55°C(No freezing allowed )
Ambient hunidity	35%~85%RH
Storage temperarure	-25°C~+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ5×2M/4-wires
Protection degree	IP54
Protection circuit	Power supply reverse polarity protection and short circuit protection
Weight	Approx.100g
