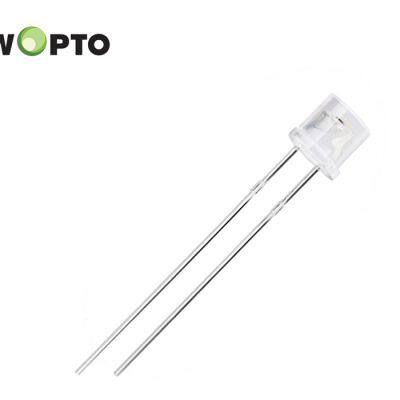

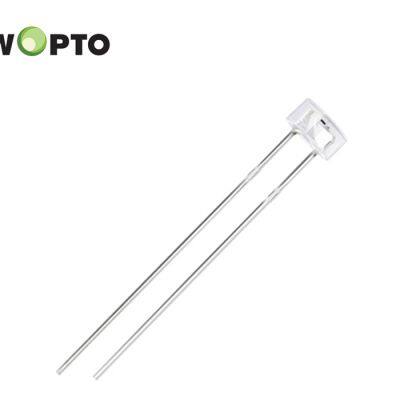

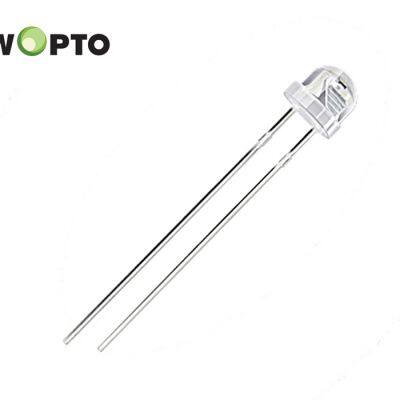

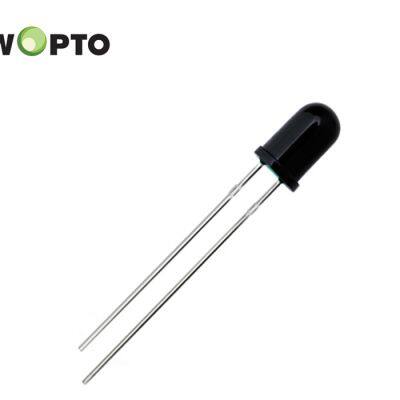

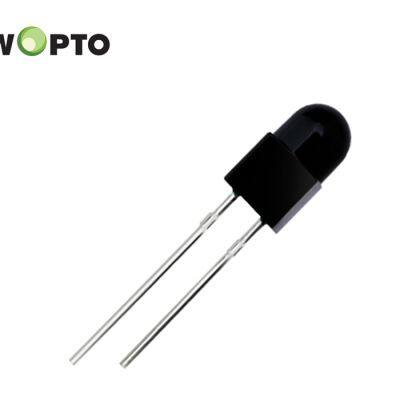

5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm

5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm thumbnail-1
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm thumbnail-2
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm thumbnail-3
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm thumbnail-4
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm thumbnail-5
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm photo-1
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm photo-2
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm photo-3
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm photo-4
5mm DIP Light Sensor, Phototransistor, Photodiode, Photo Sensor CDS Replacement, 520nm 550nm 560nm 850nm 940nm photo-5
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Newopto
Model Number:
XYC-PT5E850AC-A1
Output:
Other, photo sensor
Contact Supplier Request Quote Chat Now
Huizhou Newopto Electronic Products Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Huizhou
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Newopto
Model Number XYC-PT5E850AC-A1
Output Other, photo sensor

Catalog of Light Sensor Series

1. SMD 1206 Digital Light Sensor

2. SMD 0603 Light Sensor

3. SMD 0805 Light Sensor

4. SMD 1206 Light Sensor

5. SMD 2835 Light Sensor

6. SMD 1411/3528 Light Sensor

7. SMD 4335 Light Sensor

8. SMD 3527 Dual Wavelength Light Sensor

9. DIP 3mm Light Sensor

10. DIP 5mm Light Sensor




10. DIP 5mm Light Sensor

Model Number Collold Color Dimensions Operating voltage
(Typ.)		 Power dissipation Peak wavelength
(Typ.)		 Light Current (typ)
μA		 Infrared Receiving Current Dark Current (Max) Rise Time
/Fall time

mm Vcc PC λp IL(1)
VCC=5V Ev=10Lux		 IL(2)
VCC=5V Ev=30Lux		 IL(3)
VCC=5V Ev=100Lux		 IIR
IL(4)		 Id Tr/Tf

XYC-PT5E550AC-IC clear 3*5.8*5.3 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 7
Typ. 13
Max. 20		 Min. 21
Typ. 42
Max. 60		 Min. 70
Typ. 130
Max. 200		 / 0.8μA 4.5ms/4.5ms

XYC-PT5E550BC-I6 dark blue 5*5.8*5.3 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 2
Typ. 4
Max. 6		 Min. 6
Typ. 12
Max. 18		 Min. 20
Typ. 40
Max. 60		 Max 0.3μA 0.4μA
 4.5ms/4.5ms

XYC-PT5E550BC-I8 blue 5*5.8*5.3 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 1.4
Typ. 2.5
Max. 4.2		 Min. 4.2
Typ. 7.5
Max. 12.6		 Min. 14
Typ. 25
Max. 42		 Max 0.5μA 0.4μA
 4.5ms/4.5ms

XYC-PT5E550BC-I9 blue 5*5.8*5.3 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 2.0
Typ. 4.0
Max. 6.0		 Min. 6
Typ. 12
Max. 18		 Min. 20
Typ. 40
Max. 60		 Max 0.3μA 0.3μA
 4.5ms/4.5ms

XYC-PT5E550BC-IC blue 5*5.8*5.3 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 2.0
Typ. 4.0
Max. 6.0		 Min. 6.0
Typ. 12
Max. 18		 Min. 20
Typ. 40
Max. 60		 Max 0.3μA 0.8μA
 4.5ms/4.5ms

XYC-PT5J580AC-I6 clear 5*5*5.3 5V
(Min 1V
Max 10V)		 70mW 580nm  Min. 1.5
Typ. 3.5
Max. 6.0		 Min. 4.5
Typ. 10.5
Max. 18		 Min. 15
Typ. 35
Max. 60		 Max 0.3μA 0.4μA
 4.5ms/4.5ms

XYC-PT5J580AC-I8 clear 5*5*5.3 5V
(Min 1V
Max 5V)		 70mW 580nm  Min. 1.4
Typ. 2.5
Max. 4.2		 Min. 4.2
Typ. 7.5
Max. 12.6		 Min. 14
Typ. 25
Max. 42		 Max 0.5μA 0.4μA
 4.5ms/4.5ms

XYC-PT5J580AC-IC clear 5*5*5.3 5V
(Min 1V
Max 10V)		 70mW 580nm  Min. 1.5
Typ. 3.0
Max. 5.0		 Min. 4.5
Typ. 9
Max. 15		 Min. 15
Typ. 30
Max. 50		 Max 0.3μA 0.8μA
 4.5ms/4.5ms

XYC-PT5P520HBC-I6 dark green 5*5.8*5.3 5V
(Min 1V
Max 10V)		 70mW 520nm  Min. 2.0
Typ. 3.5
Max. 6.0		 Min. 6
Typ. 10.5
Max. 18		 Min. 20
Typ. 35
Max. 60		 Max 0.3μA 0.4μA
 4.5ms/4.5ms

XYC-PT5P580AC-I6 clear 5*5.8*5.3 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 3
Typ. 6
Max. 9		 Min. 9
Typ. 18
Max. 27		 Min. 30
Typ. 60
Max. 90		 Max. 0.8μA 0.4μA
 4.5ms/4.5ms

XYC-PTFM520HBC-I6 dark green 5*5*3.2 5V
(Min 1V
Max 10V)		 70mW 520nm  Min. 2.5
Typ. 5
Max. 7.5		 Min. 7.5
Typ. 15
Max. 22.5		 Min. 25
Typ. 50
Max. 75		 Max. 1μA 0.4μA
 4.5ms/4.5ms

XYC-PTFM520HBC-IC dark green 5*5*3.2 5V
(Min 1V
Max 10V)		 70mW 520nm  Min. 2.5
Typ. 5
Max. 7.5		 Min. 7.5
Typ. 15
Max. 22.5		 Min. 25
Typ. 50
Max. 75		 Max. 1μA 0.8μA
 4.5ms/4.5ms

XYC-PTTL520HBC-I6 dark green 5*5*3.2 5V
(Min 1V
Max 10V)		 70mW 520nm  Min. 4
Typ. 8
Max. 12		 Min. 12
Typ. 24
Max. 36		 Min. 40
Typ. 80
Max. 120		 Max. 0.8μA 0.4μA
 4.5ms/4.5ms

XYC-PTFM550BC-I6 dark 5*5*3.2 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 2
Typ. 3.5
Max. 6		 Min. 6
Typ. 10.5
Max. 18		 Min. 20
Typ. 35
Max. 60		 Max 0.3μA 0.4μA
 4.5ms/4.5ms

XYC-PTFM550BC-IC dark 5*5*3.2 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 2
Typ. 3.5
Max. 6		 Min. 6
Typ. 10.5
Max. 18		 Min. 20
Typ. 35
Max. 60		 Max 0.3μA 0.8μA
 4.5ms/4.5ms

XYC-PTLQ580AC-I6 clear 5*5*7 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 3
Typ. 6
Max. 12		 Min. 9
Typ. 18
Max. 36		 Min. 30
Typ. 60
Max. 120		 Max 0.3μA 0.8μA
 4.5ms/4.5ms

XYC-PTLQ580AC-I8 clear 5*5*7 5V
(Min 1V
Max 5V)		 70mW 550nm  Min. 2.7
Typ. 5
Max. 8		 Min. 8.1
Typ. 15
Max. 24		 Min. 27
Typ. 50
Max. 80		 Max 0.5μA 0.4μA
 4.5ms/4.5ms

XYC-PTTL580AC-IC clear 5*5*7 5V
(Min 1V
Max 10V)		 70mW 550nm  Min. 4
Typ. 8
Max. 12		 Min. 12
Typ. 24
Max. 36		 Min. 40
Typ. 80
Max. 120		 Max 0.3μA 0.8μA
 4.5ms/4.5ms

Model Number Collold Color Dimensions Collector-emitter Breakdown Voltage Emitter-Collector Breakdown Voltage Power dissipation Peak wavelength
(Typ.)		 Collector- Emitter saturation voltage Light Current (typ)
(μA)		 Infrared Receiving Current
(μA)		 Dark Current
(μA)		 Opening Time
/Closing Time
mm VCEO VECO PC λp Vce
(sat)		 IL(1)
VCC=5V Ev=10Lux		 IL(2)
VCC=5V Ev=30Lux		 IL(3)
VCC=5V Ev=100Lux		 IL(4) ICEO Tr/Tf
XYC-PT5B580AC-A6 clear 3*5.8*8.7 60V 7V 70mW 550nm Max. 1V Min. 15
Typ. 40
Max. 60		 Min. 45
Typ. 120
Max. 180		 Min. 150
Typ. 400
Max. 600		 Max. 0.3 Max. 6μA 40us /60us
XYC-PT5E560BC-A6 dark blue 5*5.8*5.3 60V 7V 70mW 560nm Max. 1V Min. 3
Typ. 6.5
Max. 9.5		 Min. 9
Typ. 19.5
Max. 28.5		 Min. 30
Typ. 65
Max. 95		 Max. 0.5 Max. 6μA 40us /60us
XYC-PT5E560BC-A9 dark blue 5*5.8*5.3 60V 7V 70mW 560nm Max. 1V Min. 6
Typ. 11
Max. 16		 Min. 18
Typ. 19.5
Max. 48		 Min. 60
Typ. 65
Max. 160		 Max. 0.3 Typ. 15μA 40us /60us
XYC-PT5I560AC-A6 clear 5*5*2.5 60V 7V 70mW 560nm Max. 1V Min. 40
Typ. 70
Max. 120		 Min. 120
Typ. 210
Max. 360		 Min. 400
Typ. 700
Max. 1200		 / (Id)
Max. 0.2 μA
@VCE=5V Ev=0Lux 		 40us /60us
XYC-PT5I560AC-A9 clear 5*5*2.5 60V 7V 70mW 550nm Max. 1V Min. 120
Typ. 200
Max. 360		 Min. 360
Typ. 600
Max. 1080		 Min. 1200
Typ. 2000
Max. 3600		 / (Id)
Max. 0.2 μA
@VCE=5V Ev=0Lux 		 40us /60us
XYC-PT5J560BC-A6 dark blue 5*5*5.3 60V 7V 70mW 560nm Max. 1V Min. 3
Typ. 6.5
Max. 9.5		 Min. 9
Typ. 19.5
Max. 28.5		 Min. 30
Typ. 65
Max. 95		 Max. 0.5 Max. 6μA 40us /60us
XYC-PT5J580AC-A6 clear 5*5*5.3 60V 7V 70mW 550nm Max. 1V Min. 2.5
Typ. 6
Max. 10		 Min. 7.5
Typ. 18
Max. 30		 Min. 25
Typ. 60
Max. 100		 Max. 0.3 Max. 6μA 40us /60us
XYC-PT5J580AC-A9 clear 5*5*5.3 60V 7V 70mW 550nm Max. 1V Min. 6
Typ. 11
Max. 18		 Min. 18
Typ. 19.5
Max. 54		 Min. 60
Typ. 65
Max. 180		 Max. 0.3 Typ. 15μA 40us /60us
XYC-PT5P560GC-A6 dark green 5*5.8*5.3 60V 7V 70mW 560nm Max. 1V Min. 3
Typ. 6.5
Max. 9.5		 Min. 9
Typ. 19.5
Max. 28.5		 Min. 30
Typ. 65
Max. 95		 Max. 0.5 Max. 6μA 40us /60us
XYC-PTLQ580AC-A6 clear 5*5*7 60V 7V 70mW 550nm Max. 1V Min. 5
Typ. 12
Max. 20		 Min. 15
Typ. 36
Max. 60		 Min. 50
Typ. 120
Max. 200		 Max. 0.5 Max. 6μA 40us /60us
XYC-PTLQ580AC-A9 clear 5*5*7 60V 7V 70mW 550nm Max. 1V Min. 17
Typ. 33
Max. 50		 Min. 51
Typ. 99
Max. 150		 Min. 170
Typ. 330
Max. 500		 Max. 0.3 Typ. 15μA 40us /60us
Model Number Collold Color Dimensions Collector-emitter Breakdown Voltage Emitter-Collector Breakdown Voltage Power dissipation Peak wavelength
(Typ.)		 Collector- Emitter saturation voltage Light Current (typ)
(μA)		 Dark Current
(μA)		 Opening Time
/Closing Time
mm VCEO VECO PC λp Vce
(sat)		 IL(1)
VCC=5V Ev=10Lux		 IL(2)
VCC=5V Ev=30Lux		 IL(3)
VCC=5V Ev=100Lux		 ICEO Tr/Tf
XYC-PT5A850AC-A1 clear 5*5.8*8.7 30V 3V 70mW 850nm Max. 0.4V Min. 50
Typ. 100
Max. 150		 Min. 150
Typ. 300
Max. 450		 Min. 500
Typ. 1000
Max. 1500		 Max 0.1μA 15us /15us
XYC-PT5A850AC-A2 clear 5*5.8*8.7 30V 6V 70mW 850nm Max. 0.4V Min. 30
Typ. 60
Max. 90		 Min. 90
Typ. 180
Max. 270		 Min. 300
Typ. 600
Max. 900		 Max 0.1μA 15us /15us
XYC-PT5A850AC-A4 clear 5*5.8*8.7 30V 3V 70mW 850nm Max. 0.4V Min. 80
Typ. 170
Max. 240		 Min. 240
Typ. 510
Max. 720		 Min. 800
Typ. 1700
Max. 2400		 Max 0.1μA 15us /15us
XYC-PT5A850DC-B1 black 5*5.8*8.7 30V 6V 70mW 850nm Max. 0.4V Min. 1.0
Typ. 1.6
Max. 2.4
@VCE=5V Ee=1mW/cm2		 Max 0.1μA 15us /15us
XYC-PT5A850DC-A1 black 5*5.8*8.7 30V 6V 70mW 850nm Max. 0.4V Min. 1.0
Typ. 1.6
Max. 2.4
@VCE=5V Ee=1mW/cm2		 Max 0.1μA 15us /15us
XYC-PT5A940FC-A1 black 5*5.8*8.7 30V 6V 70mW 940nm Max. 0.4V Min. 1.0
Typ. 1.6
Max. 2.4
@VCE=5V Ee=1mW/cm2		 Max 0.1μA 15us /15us
XYC-PT5E850AC-A1 clear 5*5.8*5.3 30V 3V 70mW 850nm Max. 0.4V Min. 3
Typ. 5
Max. 7.5		 Min. 9
Typ. 15
Max. 22.5		 Min. 30
Typ. 50
Max. 75		 Max 0.1μA 15us /15us
XYC-PT5E850AC-A2 clear 5*5.8*5.3 30V 6V 70mW 850nm Max. 0.4V Min. 1.5
Typ. 3
Max. 4.5		 Min. 4.5
Typ. 9
Max. 13.5		 Min. 15
Typ. 30
Max. 45		 Max 0.1μA 15us /15us
XYC-PT5E850DC-A1 black 5*5.8*5.3 30V 3V 70mW 850nm Max. 0.4V Min. 0.4
Typ. 0.6
Max. 0.8
@VCE=5V Ee=1mW/cm2		 Max 0.1μA 15us /15us
XYC-PT5E850DC-A2 black 5*5.8*5.3 30V 5V 70mW 850nm Max. 0.4V Min. 0.2
Typ. 0.3
Max. 0.4
@VCE=5V Ee=1mW/cm2		 Max 0.1μA 15us /15us
XYC-PT5E850DC-M2 black 5*5.8*5.3 30V 6V 70mW 850nm Max. 0.4V Min. 0.2
Typ. 0.3
Max. 0.4
@VCE=5V Ee=1mW/cm2		 Max 0.1μA 15us /15us
XYC-PT5F850AC-A1 clear 5*5.8*5 30V 3V 70mW 850nm Max. 0.4V Min. 4
Typ. 6.5
Max. 10		 Min. 12
Typ. 19.5
Max. 30		 Min. 40
Typ. 65
Max. 100		 Max 0.1μA 15us /15us
XYC-PT5F850DC-A1 dark 4.8*5.8*5 30V 5V 70mW 850nm Max. 0.4V Min. 300
Typ. 400
Max. 500
@VCE=5V Ee=1mW/cm2		 Max 0.1μA 15us /15us
XYC-PT5I850AC-A1 clear 5*5*2.5 30V 3V 70mW 850nm Max. 0.4V Min. 3
Typ. 5
Max. 7.5		 Min. 9
Typ. 15
Max. 22.5		 Min. 30
Typ. 50
Max. 75		 Max 0.1μA 15us /15us
XYC-PT5I850AC-A4 clear 5*5*2.5 30V 3V 70mW 850nm Max. 0.4V Min. 6
Typ. 10
Max. 15		 Min. 18
Typ. 30
Max. 35		 Min. 60
Typ. 100
Max. 150		 Max 0.1μA 15us /15us
XYC-PT5I850AC-C4 clear 5*5*2.5 70V 5V 70mW 850nm Max. 0.2V Min. 1.3
Typ. 2.3
Max. 3.9		 Min. 3.9
Typ. 6.9
Max. 11.7		 Min. 13
Typ. 23
Max. 39		 Max 0.1μA 15us /15us
XYC-PT5J850AC-A1 clear 5*5*5.3 30V 3V 70mW 850nm Max. 0.4V Min. 3
Typ. 5
Max. 7.5		 Min. 9
Typ. 15
Max. 22.5		 Min. 30
Typ. 50
Max. 75		 Max 0.1μA 15us /15us
XYC-PT5J850AC-A2 clear 5*5*5.3 30V 6V 70mW 850nm Max. 0.4V Min. 1.5
Typ. 3
Max. 4.5		 Min. 4.5
Typ. 9
Max. 13.5		 Min. 15
Typ. 30
Max. 45		 Max 0.1μA 15us /15us
XYC-PT5P850AC-A4 clear 5*5.8*5.3 30V 3V 70mW 850nm Max. 0.4V Min. 8
Typ. 12
Max. 16		 Min. 24
Typ. 36
Max. 48		 Min. 80
Typ. 120
Max. 160		 Max 0.1μA 15us /15us
XYC-PTFM850AC-A1 clear 5*5*3.2 30V 3V 70mW 850nm Max. 0.4V Min. 3
Typ. 5
Max. 7.5		 Min. 9
Typ. 15
Max. 22.5		 Min. 30
Typ. 50
Max. 75		 Max 0.1μA 15us /15us



Product Tags: light sensor , phototransistor

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Huizhou Newopto Electronic Products Co.,Ltd.
Verified Business License
Business Type
Manufacturer
Year Established
2017
Factory Size
10,000-30,000 square meters
Annual Export Value
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Flow Sensor Flow Sensor
Infrared Sensor Infrared Sensor
Other Sensors Other Sensors
Load Cell Load Cell
Current Sensor Current Sensor
Temperature & Humidity Sensor Temperature & Humidity Sensor
Gas Sensor Gas Sensor
Ultrasonic Sensor Ultrasonic Sensor
