Home > Products > Magnet Switch > FD Series NPN NO Magnetic Switch sensor with CE certificate Quality Choice

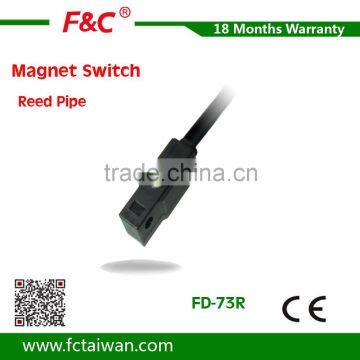

FD Series NPN NO Magnetic Switch sensor with CE certificate Quality Choice
- 10000 Piece / Pieces per Month
- Shenzhen Guangzhou
- Credit Card
You May Like
-
FD-11R 5-120VAC Reed pipe magnetic switch
-
CE certificate Normal open 12-24 VDC magnetic switch for cylinder
-
FD-20R Reed pipe magnetic sensor with CE certificate Quality Choice
-
3wires M12 3 pin or 4 pin female straight or elbow connector
-
FD-21R Reed pipe Magnetic Switch for Cylinderwith CE certificate
-
Magnetic reed switch sensor for cylinder, NPN transistor,LED indicator
Product Details
Place of Origin | Hunan, China | Brand Name | F&C | |
Model Number | FD-73R | Usage | Magnetic Sensor | |
Theory | Inductance Sensor | Output | Switching Transducer |
Product Description
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.
Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Hope you will find that is suitable for your products. If not,pls contact me
skype:lynn_liu123 ,we’ll find solutions for you
F&C Magnetic sensor has many models for your option.
FD Series Magnetic Switch with CE certificate is your best choice !!!
Product Specification:
Model | FD-73R |
Switch Logic | Normal Open |
Switch Type | Reed Pipe |
Operating Voltage | 5-120DC/AC |
Max. Current | 100mA |
Max Contact Capacity | 3.5W |
Internal Current Consumption | No |
Residual Voltage | 2.5V Max @10mA |
Leakage Current | No |
Indicator | Red LED |
Max Switching Frequency | 1000HZ |
Operating Temperature | -10~70℃ |
Impact Resistance | 30G |
Vibration Resistance | 9G |
Waterproof Grade | IP67 |
Short-Circuit Protection | No |
Reverse Polarity Protection | No |
Cable | diameter 2.8, 2C Oil resistance PVC |
Product Dimension Drawing For FD Series Magnetic Switch with CE certificate
Product Wiring Drawing For FD Series Magnetic Switch with CE certificate
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000specification. Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
-------------------------------------------------------------------------------------
1. Customize PU,PUR folding soft wire and towline wire
2. The above information is only reference.
3. Any question, just feel free to let me know.
I can always be reached by cell phone 86-13809275350 and Skype:lynn_liu123
