Product Details
Place of Origin: | Hunan, China | Brand Name: | F&C | Model Number: | HRMR-S400N R2M |
Usage: | Position Sensor | Theory: | Optical Sensor | Output: | Switching Transducer |
Product Description
HR series waterproof retro-reflective photoelectric sensor with reflector
Feature of HR series photoelectric switch sensor
1.Retro-reflective photoelectric sensor detection distance can reach 6m.
2.Through-beam photolectric sensor detection distance can reach 15m.
3.Mannual setting normal open or normal close funcation.
4.Good anti-interference ability.
Product Specification
Model | HRMR-S400NC R2M |
Output Method | NPN NO+NC |
Detection Type | Retro-reflective |
Standard Detection Object | Dia.5mm Opaque Object |
Detection Distance | 4m |
Light Source | 630nm Red modulated light |
Operating Voltage | 12-24 VDC |
Response Time | 0.5ms Max. |
Protection Degree | IP66 |
Operating Temperature | -10℃-50℃ (No Icing) |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Material | ABS |
Wire Method | dia4*2M/-3wires |
Weight | 107g |

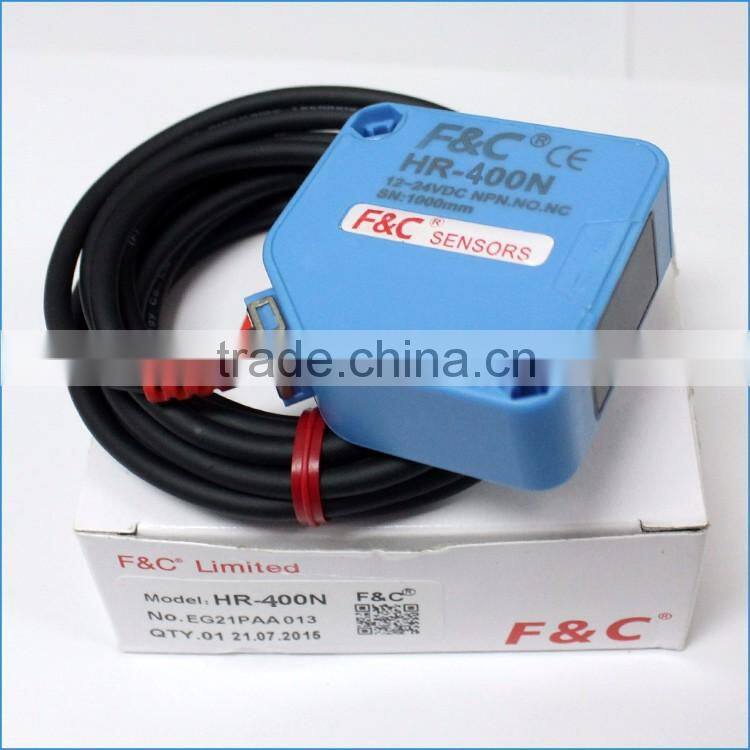

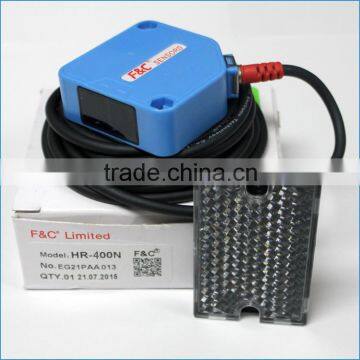

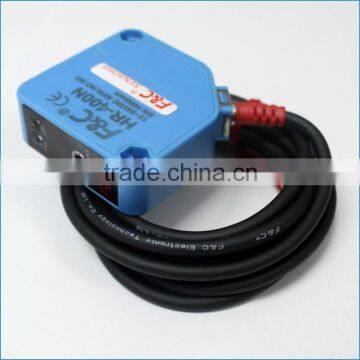

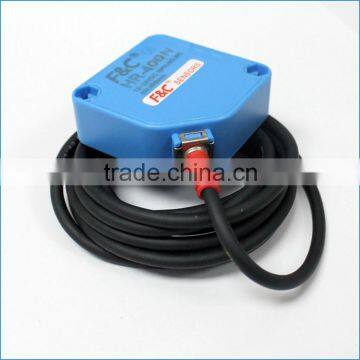

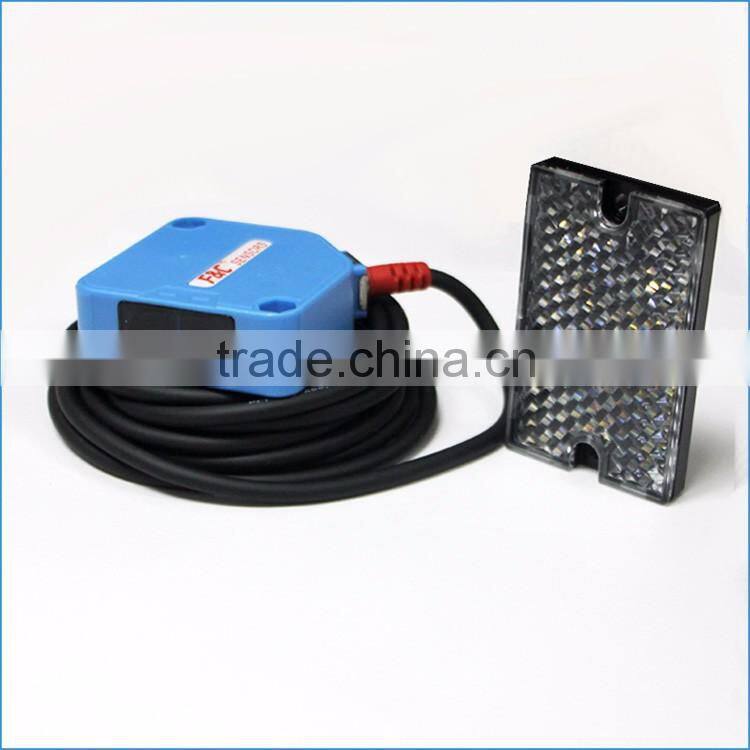

Product display
HR series waterproof retro-reflective photoelectric sensor with reflector

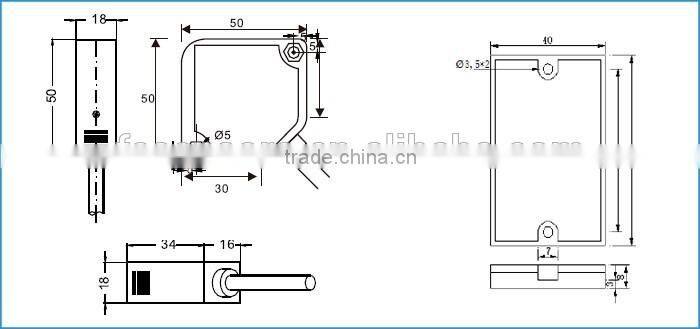

Dimension Drawing
HR series waterproof retro-reflective photoelectric sensor with reflector
Wire Drawing
NPN NO+NC
PNP NO+NC
Our service
About product: All our sensors use high quality material and we accept customization.
About warranty: We promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
Our factory
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006
and factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China and has a variety of sensors
Our main product include Fiber Optic Sensor, Fiber Optic amplifier, Fiber Focus Lens,
Proximity sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Sensor, Female Connector, Laser Sensor, Color Sensor,
Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application.
Our Target is “What you need can be found in F&C Sensing Technology”
