Datasheet-Danfoss-MBS-4010-Pressure-Transmitter
US$ 280
≥1 Units
- CHINA
- T/T
- 7 days
You May Like
-
Danfoss Sensor-pressure 084G4142
-
Danfoss MBS2050/2150/2200/2250/MBS3000
-
DANFOSS SENSOR-PRESSURE MBS3050 MBS3100
-
Danfoss Sensor Temperature MBT113/120/110/100 MBT150
-
Danfoss Fluid Control EVA210A 032H8000 Solenoid Valve, EV210A, Function: NC, G, 1/8, 0.04 M³/h, EPDM
-
Danfoss Thermo. Operated Water Valve, AVTA 10, G, 3/8 003N1132
Product Details
| Material | Stainless Steel | Certification | CE | |
| Measuring Medium | Liquid | Output Signal Type | Digital Type | |
| Production Process | Integration | For | Strain Gauge Pressure Transmitter | |
| Thread Type | NPT | Customized | Non-Customized | |
| Type | Inductive Pressure Sensor | IP Rating | IP65 | |
| Component | SemiConductor Type | Transport Package | 20pcs | |
| Trademark | DANFOSS | Origin | DENMARK |
Product Description

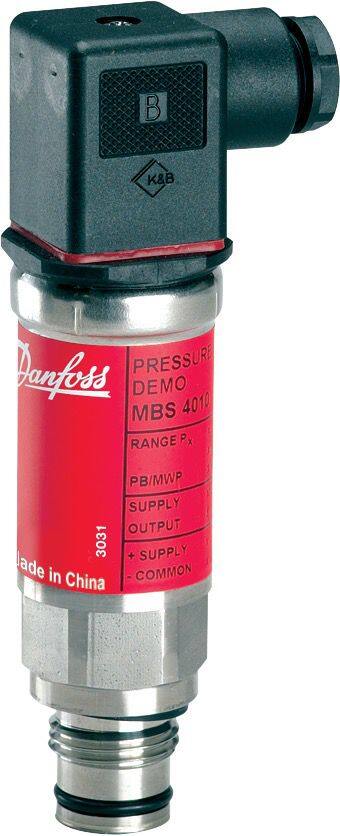

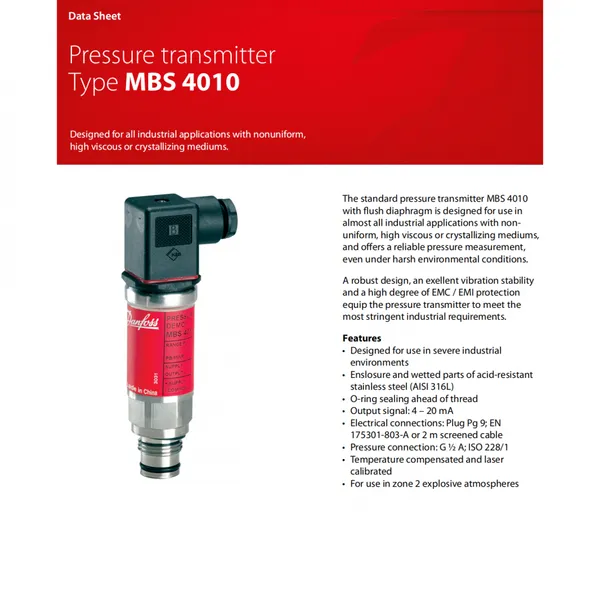

The standard pressure transmitter MBS 4010 with flush diaphragm is designed for use in
almost all industrial applications with non uniform, high viscous or crystallizing mediums,
and offers a reliable pressure measurement, even under harsh environmental conditions.
A robust design, an exellent vibration stability and a high degree of EMC / EMI protection
equip the pressure transmitter to meet the most stringent industrial requirements.
Features
• Designed for use in severe industrial
environments
• Enslosure and wetted parts of acid-resistant
stainless steel (AISI 316L)
• O-ring sealing ahead of thread
• Output signal: 4 – 20 mA
• Electrical connections: Plug Pg 9; EN
175301-803-A or 2 m screened cable
• Pressure connection: G ½ A; ISO 228/1
• Temperature compensated and laser
calibrated
• For use in zone 2 explosive atmospheres
| 060G1222 | MBS 32 | MBS32-1015-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1223 | MBS 32 | MBS32-1215-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1224 | MBS 32 | MBS32-1415-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1225 | MBS 32 | MBS32-1615-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1226 | MBS 32 | MBS32-1815-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1228 | MBS 32 | MBS32-2215-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1229 | MBS 32 | MBS32-2415-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1239 | MBS 32 | MBS32-2615-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1249 | MBS 32 | MBS32-2815-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1259 | MBS 32 | MBS32-3015-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1260 | MBS 32 | MBS32-3215-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1261 | MBS 32 | MBS32-3415-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1262 | MBS 32 | MBS32-3615-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1263 | MBS 32 | MBS32-3815-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1264 | MBS 32 | MBS32-1025-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1267 | MBS 32 | MBS32-1625-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1268 | MBS 32 | MBS32-1825-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1269 | MBS 32 | MBS32-2025-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1270 | MBS 32 | MBS32-2225-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1271 | MBS 32 | MBS32-2425-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1286 | MBS 32 | MBS32-2214-1AB08 | 1 - 6 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1294 | MBS 32 | MBS32-3814-1AB08 | 1 - 6 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G2085 | MBS 32 | MBS32-2015-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3029 | MBS 32 | MBS32-3613-1AB08 | 1 - 5 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3050 | MBS 32 | MBS 32-1225-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3077 | MBS 32 | MBS 32-XX14-1AB04 | 1 - 6 V | DIN 43650-A, plug Pg 9 | G 1/4 EN 837 |
| 060G3607 | MBS 32 | MBS32-XX25-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3608 | MBS 32 | MBS32-3414-1AB04 | 1 - 6 V | DIN 43650-A, plug Pg 9 | G 1/4 EN 837 |
| 060G3798 | MBS 32 | MBS 32-XX15-3AC04 | 0 - 10 V | Screened cable 2 m | 1/4-18 NPT |
| 060G3835 | MBS 32 | MBS 32-2013-1BB04 | 1-5V | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-G Special |
| 060G3953 | MBS 32 | MBS 32-1425-3AC04 | 0 - 10 V | Screened cable 2 m | 1/4-18 NPT |
| 060G4239 | MBS 32 | MBS32-2215-1AB08 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G1347 | MBS 33 | MBS 33-3411-1AD08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 7/16-20 UNF Flare |
| 060G1376 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 DIN3852-E Special |
| 060G1693 | MBS 33 | MBS 33-1011-XAB08 | 4 - 20 mA | Screened cable 15 m | G 1/2 EN 837 |
| 060G1694 | MBS 33 | MBS 33-XX11-XAB08 | 4 - 20 mA | Screened cable 15 m | G 1/2 EN 837 |
| 060G1847 | MBS 33 | MBS 33-3611-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 DIN3852-E |
| 060G2098 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | M22 x 1.5 DIN3852-E Special |
| 060G2099 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | M22 x 1.5 DIN3852-E Special |
| 060G2199 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 DIN3852-E |
| 060G3005 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3006 | MBS 33 | MBS 33-1011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3007 | MBS 33 | MBS 33-1211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3008 | MBS 33 | MBS 33-1411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3009 | MBS 33 | MBS 33-1611-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3010 | MBS 33 | MBS 33-1811-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3011 | MBS 33 | MBS 33-2011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3012 | MBS 33 | MBS 33-2211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3013 | MBS 33 | MBS 33-2411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3014 | MBS 33 | MBS 33-2611-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3015 | MBS 33 | MBS 33-2811-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3016 | MBS 33 | MBS 33-3011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3017 | MBS 33 | MBS 33-3211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3018 | MBS 33 | MBS 33-3411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3019 | MBS 33 | MBS 33-3611-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3020 | MBS 33 | MBS 33-3811-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3036 | MBS 33 | MBS 33-1021-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3037 | MBS 33 | MBS 33-1221-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3038 | MBS 33 | MBS 33-1421-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3039 | MBS 33 | MBS 33-1621-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3040 | MBS 33 | MBS 33-1821-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3041 | MBS 33 | MBS 33-2021-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3042 | MBS 33 | MBS 33-2221-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3043 | MBS 33 | MBS 33-2421-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3060 | MBS 33 | MBS 33-1811-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3061 | MBS 33 | MBS 33-2011-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3062 | MBS 33 | MBS 33-2211-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3064 | MBS 33 | MBS 33-2611-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3067 | MBS 33 | MBS 33-3211-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3076 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3089 | MBS 33 | MBS 33-1621-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3090 | MBS 33 | MBS 33-1821-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3091 | MBS 33 | MBS 33-2021-3AB08 | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3099 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, connector (-plug) | G 1/2 EN 837 |
| 060G3334 | MBS 33 | MBS 33-6011-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G3336 | MBS 33 | MBS 33-6411-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G3338 | MBS 33 | MBS 33-6811-1CA04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G3346 | MBS 33 | MBS 33-5811-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G3356 | MBS 33 | MBS 33-6421-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G3629 | MBS 33 | MBS 33-1411-1BA12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | M18 x 1.5 Special |
| 060G4001 | MBS 33 | MBS 33-2011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4003 | MBS 33 | MBS 33-3411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4017 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | M22 x 1.5 DIN3852-E Special |
| 060G4019 | MBS 33 | MBS 33-2211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4022 | MBS 33 | MBS 33-1421-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4098 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 DIN3852-E |
| 060G4101 | MBS 33 | MBS 33-3411-1AD08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 7/16-20 UNF Flare |
| 060G4136 | MBS 33 | MBS 33-1611-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4137 | MBS 33 | MBS 33-1811-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4172 | MBS 33 | MBS 33-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5640 | MBS 33 | MBS 33-2411-1AC08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/2-14 NPT |
| 060G5641 | MBS 33 | MBS 33-2611-1AC08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/2-14 NPT |
| 060G5647 | MBS 33 | MBS 33-2211-XAB08 | 4 - 20 mA | Screened cable 20 m | G 1/2 EN 837 |
| 060G5848 | MBS 33 | MBS 33-2011-XAB08 | 4 - 20 mA | Screened cable 20 m | G 1/2 EN 837 |
| 060G5888 | MBS 33 | MBS 33-2011-XAB08 | 4 - 20 mA | Screened cable 10 m | G 1/2 EN 837 |
| 060G5856 | MBS 33M | MBS 33M-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3122 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3131 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G1655 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3126 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3141 | MBS 33M | MBS 33-XXXX-XXXXX | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G5867 | MBS 33M | #N/A | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G5807 | MBS 33M | MBS 33M-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3132 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3127 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3735 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 11 | M14 x 1.5 ISO6149-2 Special |
| 060G3121 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3123 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3282 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G2159 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3133 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3128 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3143 | MBS 33M | MBS 33-XXXX-XXXXX | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G3134 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G1654 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3129 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3736 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 11 | 1/8-27 NPT |
| 060G1233 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3124 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3139 | MBS 33M | MBS 33-XXXX-XXXXX | 4 - 20 mA | Screened cable 2 m | G 1/2 EN 837 |
| 060G1220 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug 1/2 NPTF | 1/4-18 NPTF |
| 060G2160 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3130 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G1234 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G1656 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3125 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3928 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 11 | M14 x 1.5 ISO6149-2 Special |
| 060G1705 | MBS 33M | MBS 33M-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G5806 | MBS 33M | MBS 33M-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G5868 | MBS 33M | #N/A | 4 - 20 mA | DIN 43650-A, plug Pg 13.5 | G 1/2 EN 837 |
| 060G3203 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3204 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3205 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3206 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3207 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3211 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3212 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3213 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3214 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3215 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3216 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3217 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 Flush |
| 060G3236 | MBS 4010 | MBS 4010-XXXX-XXXXX | 4 - 20 mA | Screened cable 2 m | G 1/2 Flush |
| 060G5711 | MBS 4010 | MBS 4010-2411-XXXXX | 4 - 20 mA | DIN 72585 bayonet connector | G 1 Flush |
| 060G1348 | MBS 4050 | MBS 4050-2411-1FB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 7/16-20 UNF Flare M5 |
| 060G1461 | MBS 4050 | MBS 4050-3215-1FB04 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-G Special |
| 060G1462 | MBS 4050 | MBS 4050-3615-1FB04 | 0 - 10 V | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-G Special |
| 060G1747 | MBS 4050 | MBS 4050-2211-XEB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G2164 | MBS 4050 | MBS 4050-3411-3FB04 | 4 - 20 mA | Screened cable 2 m | G 1/4 DIN3852-G Special |
| 060G2185 | MBS 4050 | MBS 4050-6611-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT M5 |
| 060G2187 | MBS 4050 | MBS 4050-7011-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT M5 |
| 060G2189 | MBS 4050 | MBS 4050-7411-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT M5 |
| 060G2190 | MBS 4050 | MBS 4050-7611-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT M5 |
| 060G3266 | MBS 4050 | MBS 4050-1611-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3267 | MBS 4050 | MBS 4050-1811-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3268 | MBS 4050 | MBS 4050-2011-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3269 | MBS 4050 | MBS 4050-2211-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3270 | MBS 4050 | MBS 4050-2411-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3271 | MBS 4050 | MBS 4050-2611-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3272 | MBS 4050 | MBS 4050-2811-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3273 | MBS 4050 | MBS 4050-3011-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3274 | MBS 4050 | MBS 4050-3211-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3275 | MBS 4050 | MBS 4050-3411-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3276 | MBS 4050 | MBS 4050-3611-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3277 | MBS 4050 | MBS 4050-3811-1EB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3380 | MBS 4050 | MBS 4050-3211-1FB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-G Special |
| 060G3381 | MBS 4050 | MBS 4050-3411-1FB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-G Special |
| 060G3382 | MBS 4050 | MBS 4050-3611-1FB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-G Special |
| 060G3383 | MBS 4050 | MBS 4050-3811-1FB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-G Special |
| 060G3725 | MBS 4201 | MBS 4201-1411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3882 | MBS 4201 | MBS 4201-1021-3GB04 | 4 - 20 mA | Screened cable 2 m Ex | G 1/4 DIN3852-E |
| 060G4281 | MBS 4201 | MBS 4201-2211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5611 | MBS 4201 | MBS 4201-2211-3AC08 | 4 - 20 mA | Screened cable 2 m Ex | 1/2-14 NPT |
| 060G5616 | MBS 4201 | MBS 4201-1011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5619 | MBS 4201 | MBS 4201-2011-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G5620 | MBS 4201 | MBS 4201-2411-7GB04 | 4 - 20 mA | DIN 72585 bayonet connector | G 1/4 DIN3852-E |
| 060G5633 | MBS 4201 | MBS 4201-2611-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G5634 | MBS 4201 | MBS 4201-1411-3AB08 | 4 - 20 mA | Screened cable 2 m Ex | G 1/2 EN 837 |
| 060G5718 | MBS 4201 | MBS 4201-1611-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5719 | MBS 4201 | MBS 4201-2411-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5774 | MBS 4201 | MBS 4201-2611-7AB08 | 4 - 20 mA | DIN 72585 bayonet connector | G 1/2 EN 837 |
| 060G5775 | MBS 4201 | MBS 4201-2811-7AB08 | 4 - 20 mA | DIN 72585 bayonet connector | G 1/2 EN 837 |
| 060G5851 | MBS 4201 | MBS 4201-2011-XXXXX | 4 - 20 mA | DIN 43650-A, plug Pg 11 | G 1/4 EN 837 |
| 060G3959 | MBS 4251 | MBS 4251-1811-XGB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G3960 | MBS 4251 | MBS 4251-2011-XGB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G3961 | MBS 4251 | MBS 4251-2611-XGB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G4370 | MBS 4251 | MBS 4251-2211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G5697 | MBS 4251 | MBS 4251-XX21-1XXXX | 4 - 20 mA | DIN 43650-A, plug Pg 9 | ISO7/1 R1/4 |
| 060G5720 | MBS 4251 | MBS 4251-3411-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5721 | MBS 4251 | MBS 4251-3611-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G1605 | MBS 4510 | MBS 4510-1221-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G1844 | MBS 4510 | MBS 4510-XX11-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2418 | MBS 4510 | MBS 4510-0411-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2419 | MBS 4510 | MBS 4510-0611-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2420 | MBS 4510 | MBS 4510-0811-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2421 | MBS 4510 | MBS 4510-1011-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2422 | MBS 4510 | MBS 4510-1211-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2423 | MBS 4510 | MBS 4510-1411-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2424 | MBS 4510 | MBS 4510-1611-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2425 | MBS 4510 | MBS 4510-1811-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2426 | MBS 4510 | MBS 4510-2011-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2427 | MBS 4510 | MBS 4510-2211-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2428 | MBS 4510 | MBS 4510-2411-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G2430 | MBS 4510 | MBS 4510-1621-1CB12 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1 Flush |
| 060G3504 | MBS 4701 | MBS 4701-1421-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3588 | MBS 4701 | MBS 4701-2411-1AC08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/2-14 NPT |
| 060G3849 | MBS 4701 | MBS 4701-1411-1AC04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/4-18 NPT |
| 060G4300 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4301 | MBS 4701 | MBS 4701-1621-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4302 | MBS 4701 | MBS 4701-2611-1AC08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | 1/2-14 NPT |
| 060G4303 | MBS 4701 | MBS 4701-1211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4304 | MBS 4701 | MBS 4701-2211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4305 | MBS 4701 | MBS 4701-2811-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4306 | MBS 4701 | MBS 4701-1011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4307 | MBS 4701 | MBS 4701-1411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4308 | MBS 4701 | MBS 4701-1611-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4309 | MBS 4701 | MBS 4701-1811-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4310 | MBS 4701 | MBS 4701-2011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3781 | MBS 4701 | MBS 4701-2411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3949 | MBS 4701 | MBS 4701-2611-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G3951 | MBS 4701 | MBS 4701-3011-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5722 | MBS 4701 | MBS 4701-1611-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5723 | MBS 4701 | MBS 4701-2411-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5783 | MBS 4701 | MBS 4701-3011-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5784 | MBS 4701 | MBS 4701-3411-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5785 | MBS 4701 | MBS 4701-3611-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G5808 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5809 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5810 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5811 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5812 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5813 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5818 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G5821 | MBS 4701 | MBS 4701-XX11-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 |
| 060G4311 | MBS 4751 | MBS 4751-3611-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
| 060G4312 | MBS 4751 | MBS 4751-3211-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G4313 | MBS 4751 | MBS 4751-3411-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G4314 | MBS 4751 | MBS 4751-3611-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G3892 | MBS 4751 | MBS 4751-3811-1AB08 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/2 EN 837 M5 |
| 060G5724 | MBS 4751 | MBS 4751-3411-1GB04 | 4 - 20 mA | DIN 43650-A, plug Pg 9 | G 1/4 DIN3852-E |
Contact Us
- Contranspower Co., Ltd
- Contact nameRona Chat Now
- Phone86-28-60201516
Product Categories
| Solenoid valve | Sensor |
New Products
-
Danfoss Pressure Switch, KP36 060-214466
-
Kaneko 2-way Solenoid Valve - M20C-20-D12PG-TF-03S
-
Kaneko 2-way Solenoid Valve - M22 Series
-
Kaneko 2-way Solenoid Valve - M30D-20-A44-SF12-TF
-
Kaneko 3-way Solenoid Valve-M00U SERIES
-
Kaneko 3-way Solenoid Valve-M55 SERIES
-
Kaneko 4-way Solenoid Valve (SINGLE) -MT16G SERIES
-
Kaneko 4-way Solenoid Valve (SINGLE) -MB15G SERIES
-
Kaneko 4-way Solenoid Valve (SINGLE) -M15G SERIES
-
Kaneko 4-way Solenoid Valve (SINGLE) -MK15G-8N-A12PG-TF-DMI
-
Kaneko 4-way Solenoid Valve (SINGLE) -M80G SERIES
-
Kaneko 4-way Solenoid Valve (DOUBLE)-MK15G-10-D12PG-TF- DMI
-
Kaneko 4-way Solenoid Valve (DOUBLE)-MB15DG SERIES
-
Kaneko 4-way Solenoid Valve (DOUBLE)-M65DG SERIES
-
Kaneko Manual Reset Solenoid Valve - M81RG-8-DE11-22 220V
-
Kaneko Manual Reset Solenoid Valve - M55C-25-DE12PU DC125V
-
Kaneko Manual Reset Solenoid Valve - M51 SERIES
-
Kaneko Manual Reset Solenoid Valve - M31 SERIES
Popular Searches
- hydraulic pump
- hydraulic part
- condensing unit
- temperature control
- ice machine
- hydraulic motor
- hydraulic pump part
- filter drier
- display cooler
- scroll compressor
- piston pump
- piston pump part
- hydraulic piston motor
- hydraulic orbit motor
- hydraulic piston pump
- charger pump
- heating thermostat
- orbit motor
- pizza fridge
- eaton
- cycloid hydraulic motor
- gerotor motor
- ranco
- danfoss replacement
Recommended Products
- OEM/ODM Pressure Sensors for Cars – High Accuracy and Durable Design
- MS4525DO-DS5AI001DP Digital Output Pressure Sensor
- DLVR-L10D-E1BD-I-NI3N Airspeed Sensors, Flight Control Products, Unmanned Aerial Vehicle Pressure Sensors, All Sensors
- Danfoss Pressure Switch, KP36 060-214466
- Danfoss Thermo. Operated Water Valve, AVTA 10, G, 3/8 003N1132
- Danfoss Fluid Control EVA210A 032H8000 Solenoid Valve, EV210A, Function: NC, G, 1/8, 0.04 M³/h, EPDM
- Danfoss Sensor Temperature MBT113/120/110/100 MBT150
- DANFOSS SENSOR-PRESSURE MBS3050 MBS3100
- Danfoss MBS2050/2150/2200/2250/MBS3000
- Danfoss Sensor-pressure 084G4142
- GE Industrial Vibration Transmitter 344A9322G001
- Brand New Original GE Vibration Sensor 344A9322G001
Find Similar Products By Category
- Electrical & Electronics > Sensor > Pressure Sensor
Product Tags:
Contranspower Co., Ltd
Business license
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Contranspower Co., Ltd
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
Rona
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
