Home > Electrical & Electronics > Sensor > Pressure Sensor > 0-5V Voltage Analog Output Diffuse Photoelectric Sensor

0-5V Voltage Analog Output Diffuse Photoelectric Sensor

F&C Sensing Technology (Hunan) Co., Ltd.

0-5V Voltage Analog Output Diffuse Photoelectric Sensor photo-1

US$ 23.52 - 38.81 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

F&C

Model Number:

CR-30V

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name F&C

Model Number CR-30V

Usage Position Sensor

Theory Optical Sensor

Output Switching Transducer

Dear customer,

Welcome to visit our products.

We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.Our Photoelectric switches are divided into HR series, QR series,DR18 Series,DR12series,DR06 Series by the dimension, which can meet different space installation requirement.We also have DR18 metal photoelectric sensors.

Welcome to conact with us for professional solution.

Feature for 0-5V Voltage Analog output Diffuse photoelectric sensor

1. Detection distance:100-300mm.

2. Integerated structure, reach IP66 grade

3. 1-5V Voltage analog output photoelectric switch

Product specification

Model	CR-30V
Detection Type	Diffuse
Standard Detection Object Size	10cm*10cm(White Paper)
Detection Distance	100-300MM
Light Source	630nm Red modulated light
Operating Voltage	12-24 VDC
Response Time	0.5ms Max.
Current Consumption	15mA Max.
Load current	100mA Max at 24 VDC
Insulation Resistance	20M Ohm Min. at 500 VDC
Dielectric strength	60 seconds at 1000VAC 60HZ
Protection Degree	IP66
Operating Temperature	-20℃-60℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	dia4*2M/-3wires

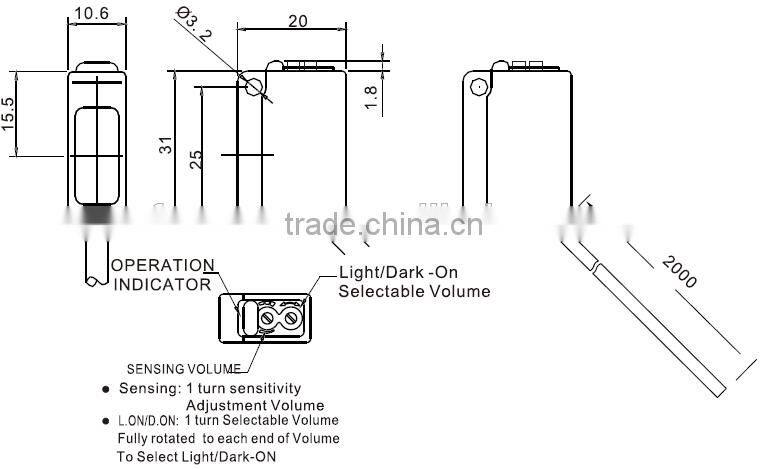

Dimension Drawing

Our service

About product: All our sensors use high quality material and we accept customization of all kinds of sensors
About warranty: we promise replacement within 18 months if any quality problems are found.

About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.

About price: The most favorable price in the same quality products.

Our factory

F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.

F&C has become a famous brand at home and aboard.

Looking into the future, our company will continuously adhere to the quality policy of “Being

innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs”.

F&C Sensing Technology History

F&C Sensing Technology was established in Taiwan in 1996

Establish branch office in Dongguan in 2003.

Establish factory in Dongguan 2006.

Establish factory in Changsha in 2013

Order information

140 kinds of regular sensors have stock, it cut lead time obviously.

Sample is available and welcome.

Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
