hydraulic double layer automatical color metal steel roof step panel cold roll forming marking machine with ce certification

FOB Price

USD $10,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Ningbo / Shanghai
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Tile Forming Machine	Tile Type:	Colored Glaze Steel
Use:	Roof	Production Capacity:	20 m / min	Place of Origin:	Zhejiang, China
Brand Name:	Finding or OEM	Model Number:	FD-roof forming machine	Power(W):	5.5 kw
Voltage:	380 v	Dimension(LWH):	101.51.5 m	Weight:	8 tons
Certification:	CE	Warranty:	1 years, 1 year and provide the technical support for the whole life.	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

Good quality
Comprehensive sevice
Good price
CE certificate
20 years experience

Standard Equipment of Machine :
uncoiler	1 set
Guiding Equipment	1 set
Roll Forming Equipment	1 set
Post Cut Equipment	1 set
Hydraulic Station	1 pc
PLC Control	1 pc
Supporter Table	2 pc

The Technical parameters:
Suitable raw material:	Color steel sheet; Galvanized steel sheet
Thickness of the material:	0.4m to 0.7mm
Yield strength of material:	235Mpa
Uncoiler' s loading capacity:	Max. Capacity: 5000Kgs. (can be increased to be 10 tons)
Forming speed:	About 15-20m/min
Main motor power:	5.5Kw(Depend on final design)
Hydraulic station power:	5.2Kw(Depend on final design)
Controling System:	Mitsubishi PLC & converter
Votage:	380V, 3 phase 60Hz or according to at buyer' s requirment.
The quantity of the roller group:	At lest 15 groups(depend on final design)
Machine dimension:	About 18m1.5m1.4m(depend on final design)
Total weight:	About 10000kgs(depend on final design)

Our advantages :

	our machine	other company 's machine	Influence of the machine
Machine's base	High strength H350 / H400 steel. machine through milling macine after welding.	H270 steel mark, after welding use manual polish.	keep base in the same horizontal line, ensure product standard.
roller material	High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated	normal No. 20 steel with Simple polished and have no coating	Roller will have longer use life and ensure the products have same size, no nick on the surface.
side wall	use high strength16mm thickness steel panel mark	use 12 mm thickness steel panel mark	ensure machine harder to deform, keep the product accurate and stable
Active shaft material	High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatment.	normal No. 45 steel with no surface treatment	improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard.
Electrical elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China	all the elements are made in china	machine become more accurate and more stable
cutter blade	Cr12 mould steel with quenched treatment	normal high strength steel without quenched treatment	stable the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life, ensure product standard.

Design ability:

We have more than 20 years experience,

We have a group of professional engineers,

We have a lot of customer's feedback data,

We can design the machine and product according to your request.

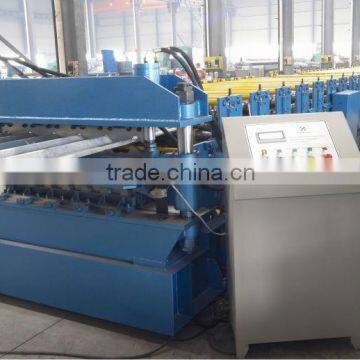

Machine 's photo:

Machine installation picture:

Product 's sample:

Factory photo:

Showroom photo:

PlC control panel :

Container photo:

Customer photo :

If you have interesting please do not hesitate to contact me.
