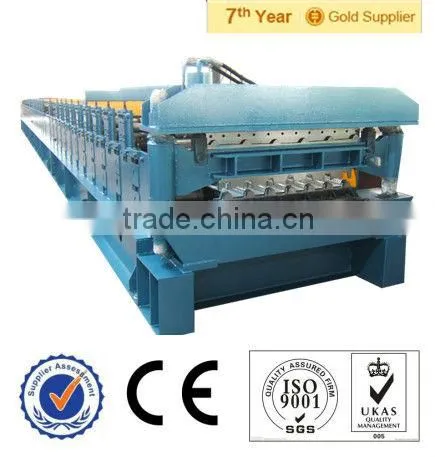

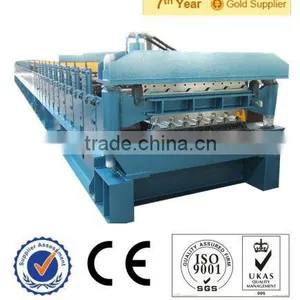

Help CenterDouble Layer Metal Roof Roll Forming Making Machine ,Korea Machine
Related Products
-
Roofing Sheet Making Machine Professional Double Layer Roll Forming Machine With Low Prices Quality ChoiceUS$ 10,000 - 20,000MOQ: 1 Set -
Refrigerator Panel Roof Reinforcing Rib Roll Forming Making MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Full Automatic Machinary FD-0106 Shutter Slat Roll Forming Making Machine Cutting Without StopUS$ 10,000 - 20,000MOQ: 1 Set
-
Highway Guardrail Anda Roof Panel Roll Forming Making Machine Quality ChoiceUS$ 10,000 - 20,000MOQ: 1 Set
-
Building Industry Steel Water Down Pipe Forming MachineNegotiableMOQ: 1 Set
Specifications
Good qualityComprehensive sevice
Good price
CE certificate
20 years experience
Standard Equipment of Machine : | |
uncoiler |
1 set |
Guiding Equipment |
1 set |
Roll Forming Equipment |
1 set |
Post Cut Equipment |
1 set |
Hydraulic Station |
1 pc |
PLC Control |
1 pc |
Supporter Table |
2 pc |
The Technical parameters: | |
Suitable raw material: |
Color steel sheet; Galvanized steel sheet |
Thickness of the material: |
0.4m to 0.7mm |
Yield strength of material: |
235Mpa |
Uncoiler' s loading capacity: |
Max. Capacity: 5000Kgs. (can be increased to be 10 tons) |
Forming speed: |
About 15-20m/min |
Main motor power: |
5.5Kw(Depend on final design) |
Hydraulic station power: |
5.2Kw(Depend on final design) |
Controling System: |
Mitsubishi PLC & converter |
Votage: |
380V, 3 phase 60Hz or according to at buyer' s requirment. |
The quantity of the roller group: |
At lest 15 groups(depend on final design) |
Machine dimension: |
About 18m*1.5m*1.4m(depend on final design) |
Total weight: |
About 10000kgs(depend on final design) |
Our advantages :
|
|
our machine |
other company 's machine | Influence of the machine |
| Machine's base | High strength H350 / H400 steel. machine through milling macine after welding. | H270 steel mark, after welding use manual polish. | keep base in the same horizontal line, ensure product standard. |
| roller material | High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated | normal No. 20 steel with Simple polished and have no coating | Roller will have longer use life and ensure the products have same size, no nick on the surface. |
| side wall | use high strength16mm thickness steel panel mark | use 12 mm thickness steel panel mark | ensure machine harder to deform, keep the product accurate and stable |
| Active shaft material | High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatment. | normal No. 45 steel with no surface treatment | improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard. |
| Electrical elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China | all the elements are made in china | machine become more accurate and more stable |
| cutter blade | Cr12 mould steel with quenched treatment | normal high strength steel without quenched treatment | stable the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life, ensure product standard. |
Design ability:
We have more than 20 years experience,
We have a group of professional engineers,
We have a lot of customer's feedback data,
We can design the machine and product according to your request.
Machine 's photo:
Machine installation picture:
Product 's sample:
Factory photo:
Showroom photo:
PlC control panel :
- Container photo:
