Specifications
Water down pipe forming machine1. CE certification
2. 20 years' experience
3. One Years warranty, lifetime service
Building industry steel water down pipe forming machine

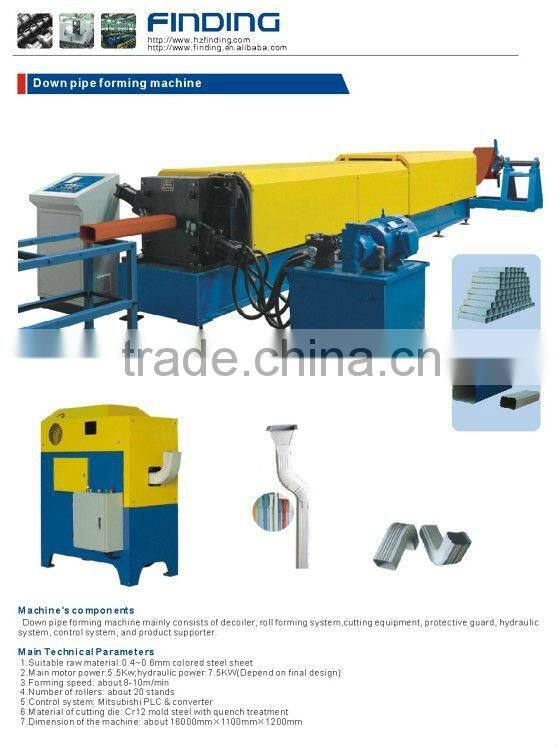

Components for the machine
un-coiler unit, main roll forming system, cutting equipment, protective guard, hydraulic system, PLC control system and run out table.
Main technical parameters
1. Suitable material: color steel sheet
2. Thickness of raw material: 0.4-0.6mm
3. Working speed: about 8~10m/min
4. Power requirement:
Main motor power: 5.5kw (depend on final design)
Hydraulic station power: 7.5kw (depend on final design)
5. Controlling system: Mitsubishi PLC & converter
6. Machine’s size: about16m*1.1m*1.2m (depend on final design)
7. Number of rollers: about 20 stands
8. Material of cutting die: Cr 12 mold steel with quench treatment
Product feature
1. High efficiency: Capable of producing down pipes with any length.
2. Good appearance: The color of down pipe can be in accordance with the house
3. Easy installation and long lifetime.
Working Flow
Decoiling the sheet -- Sheet guiding -- Roll forming -- Measure length -- Cutting the sheet -- Sheets to the run out table

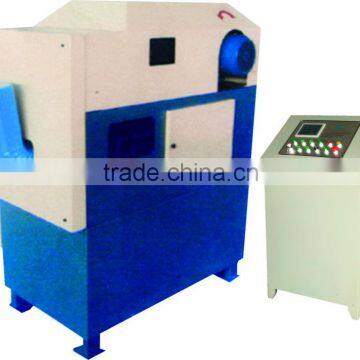

Equipment photos

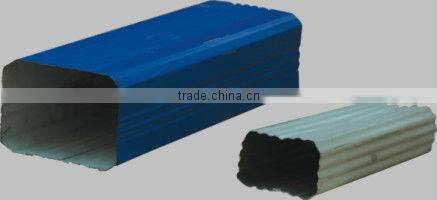

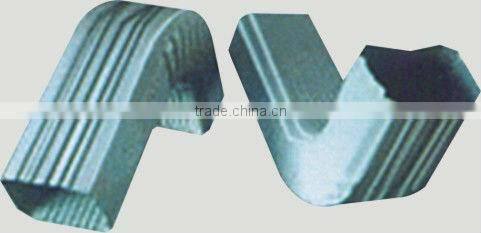

Finished product photos
Company brief
Following the steel construction development, our company has been engaged in manufacturing Roll Forming Machines more than 20 years, we have the ability to produce custom roll formed shapes, and our products already have a well-deserved reputation among our clients.
There are over 20 series of steel roll forming machines we have developed which can meet all requirements of the steel constructions, and we also devoted ourselves to the research & development of various kinds of other products related to steel structure.
