Specifications
hydraform light gauge steel framing machine for sale with hydrolic press1)PLC control
2)high quality good service
3)CE
Detailed Product Description

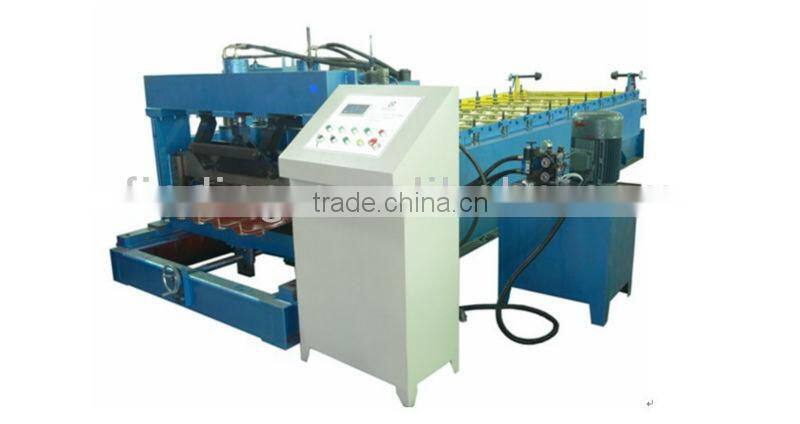

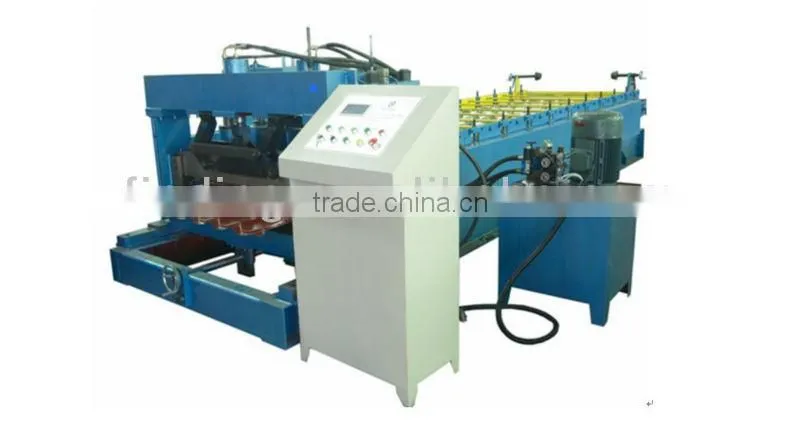

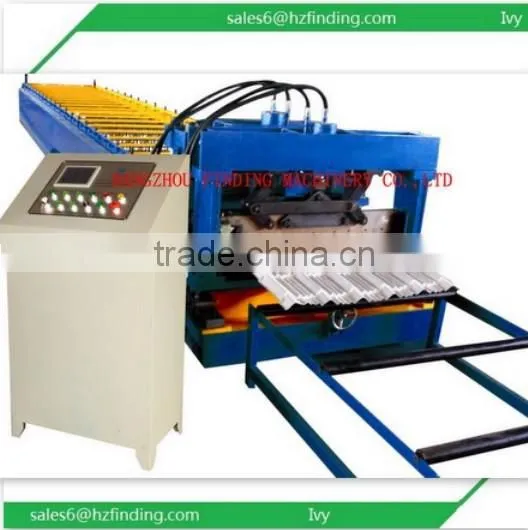

The machine name: hydraform light gauge steel framing machine for sale with hydrolic press
We can supply machines for wall & roof sheet, color steel tile, C & Z & W shape purlin and floor decking sheet as well as production line for all kinds of sandwich panels, curving machine for roof sheets. We also supply production lines of guardrail sheet for expressway, shutter doors, garages doors and downpipe.
Consists: (We can customize machine according to your requirement)
Material of Main Equipment
| Uncoiler and its base | 1PC |
| Coil sheet guiding equipment | 1PC |
| Film covered device (only for tile machine ) | 1PC |
| Roll forming system | 1PC |
Pressing equipment (only for tile machine ) |
1PC |
| Post-cutting equipment | 1PC |
| Hydraulic station | 1PC |
| PLC Controlling system | 1PC |
| Supporter table | 2PCS |
Main technical parameters:
| Suitable material | color steel sheet or galavanized steel sheet |
| Thickness of raw material | 0.5~0.6 mm |
| Yield strength of material | 235 Mpa~ 345Mpa |
| Forming speed | 1.5-2.0 m/min |
| Main moto power | 5.5 KW |
| Hydraulic station power | 2.2 KW |
| Uncoiler loading capacity | Max capacity: 5 tons, (can be increased to be 10 tons) |
| Controlling system | Mitsubishi PLC & converter |
| Machine's size | about 18m * 1.5m* 1.4m |
| Roller Material | High grade No.45 forged steel, with digital-controlled procession, Plated with hard chrome |
| Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. Shaft diameter is 72mm. |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
| Cutter blade | Cr12 mould steel with quenched treatment |
We manufacture roll forming machines that are used for making sections such as Z purlin , C channels, roof panels, crash guards, fenders and any section as per customers specific requirement. Our roll tools are designed by experts and meticulously manufactured which ascertains precise forming of section. We make Cold Roll Forming Lines of input strip width varying from 700mm to 1250mm and thickness ranging from 0.3mm to 3mm. The raw materials that the machine can work with are mild steel, galvanized steel, color coated sheets, aluminum to name a few. Cold Roll Forming is a process that shapes various kinds of sheets or metals passing the raw material through number of roll passes driven by gear drive system. Our machine lines employ a series of paired rollers to progressively shape a flat strip of metal into desired contour such as channel, angle or any other desired shape in the process adding rigidity and strength to the metal. Our Cold Roll Forming Lines find applications in the following industries:
A. Automobile Industry
B. Steel furniture
C. Building and construced
D. Electrical engineering
Advantage:
What's more, equipment can be specially designed and manufactured at customers' requirements. fine quality as well as low price.This new product is to the taste of world market.
Products Warranty:
12 month, and we will provide the technical support for the whole life of the equipment.

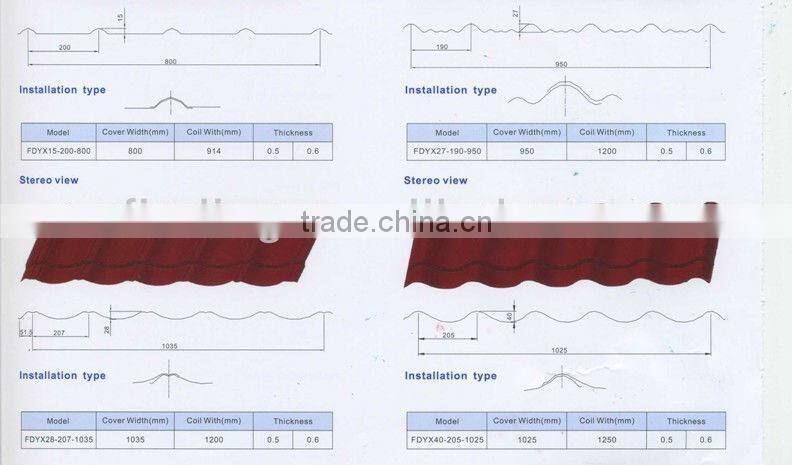

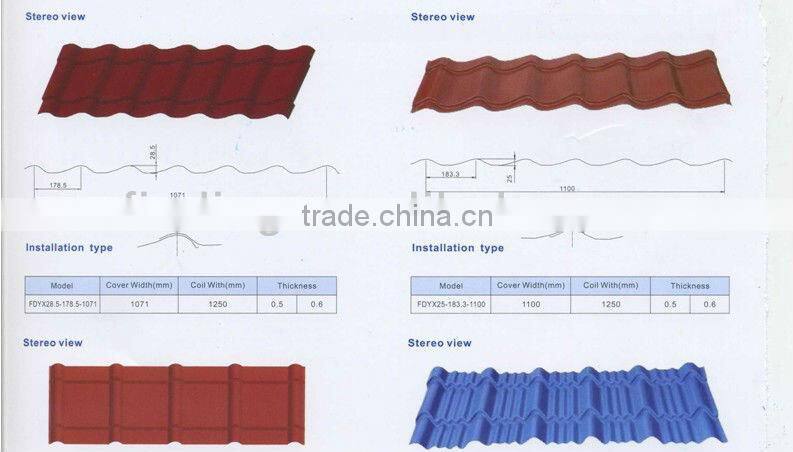

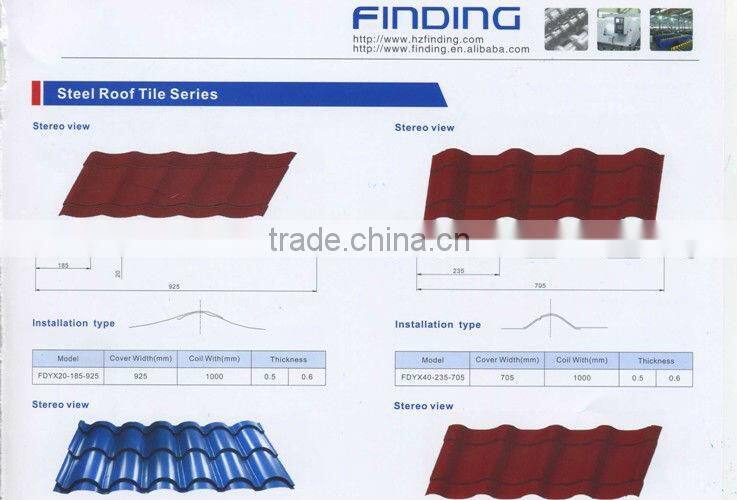

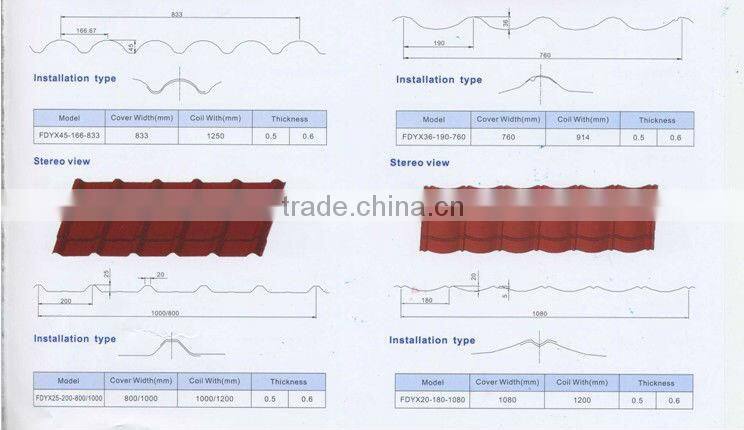

Panel profile for your ref:
Other machine for your choosing
C and Z purlin forming machine
Steel roof / wall forming machine
PU sandwich panel forming machine
Roll shutter door forming machine
Roof tile/ ridge cap forming machine
Floor decking forming machine
Dry wall forming machine
Embossing machine
