Home > Products > YJ62 Shaded Pole Motor > Small Powerful Motors Shaded Pole Motor YJ62-45: High Rpm Electrical Motor, Fan Motor for Nebulizer, Ventilator, Oven
Small Powerful Motors Shaded Pole Motor YJ62-45: High Rpm Electrical Motor, Fan Motor for Nebulizer, Ventilator, Oven
- Shenzhen
- T/T
You May Like
-
Ac Shaded Pole Motor High Rpm Electric Motor YJ62-25: 230v,50hz,2800rpm Motor Manufacurer for Nebulizer, Air Pump,ventilator
-
Air Pump Motor Water Pump Motor Single Phase 2800rpm MotorYJ62-25: 220v ac Electric Motors Small Electric Motors
-
High Torque Low Rpm Electric Motor Electric Fan MotorYJ62-25: 220V, 60hz, CL.B ac Motor Fan Motor UL,VDE,CUL,CE,CCC
-
220v ac Electric Motor Air Pump Motor Shaded Pole Motor YJ62-25: Universal Motor, Small Powerful Electric Motors
-
220v,50hz,Insulation Class B, Single Phase 2800rpm Motor YJ62-25: Motor Electric,ac Electrical Motor for Nebulizer,air Pump
-
Electric AC Motor: SP Exhaust Fan Motor CE/UL/VDE Certified Motor High Speed Low Noise for Device With Pump Assembly
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-45 | |
| Type | Asynchronous Motor | Frequency | 50HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 12--40mm
Size: 62.5*62.5mm
Life: 5000--10000 Hours
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-45
Other assembly:
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:

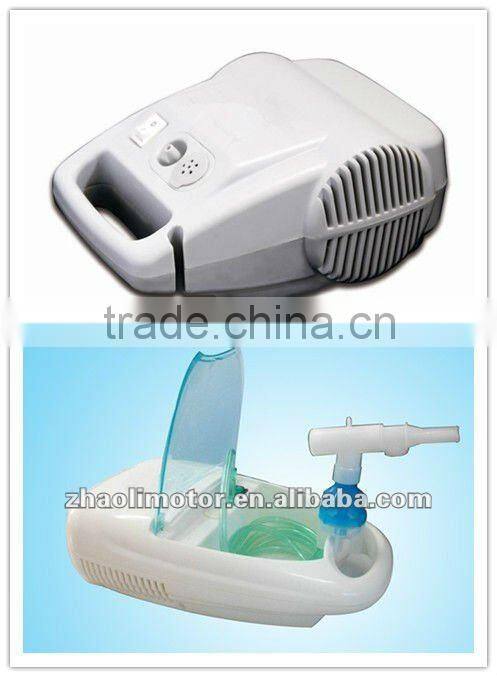

Ventilator, Nebulizer, Vacuum pump, Air pump, Oven
