Help CenterMotor Electric Small Powerful Electric Motors Shaded Pole MotorYJ62-30:120/220v, 50/60hz Low Rpm Electric Motors
Related Products
-
Motor ac Electric Fan Motor Shaded Pole Motor YJ62-30: 100-240v,50/60hz,2500-3000rpm,small Powerful Electric MotorsUS$ 3 - 7MOQ: 1000 Units -
Electrical Motor Air Compressor Nebulizer Motor YJ62-30:air Pump Motor,ventilator Fan Motor,electric MotorUS$ 3 - 7MOQ: 1000 Units
-
220v 50hz 2400-2800rpm Electric Motor Small Electric Motors for Oxygen Machine,nebulizer,air Pump,oven,venilatorUS$ 2.5 - 6MOQ: 1000 Units
-
Motor ac Shaded Pole Motor YJ62-25: 220V,50hz,2500-3000rpm,CL.B Electromotor Electric Motor SpecificationsUS$ 2.5 - 6MOQ: 1000 Units
-
Electric Fan Motor High Torque Low Rpm Shaded Pole MotorYJ62-25 Type:VDE,UL,CE,CCC,CUL Certified High Speed Low NoiseUS$ 3.5 - 6MOQ: 1000 Units
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-30
Motor with pump assembly:
Motor with cross-flow fan assembly:
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:

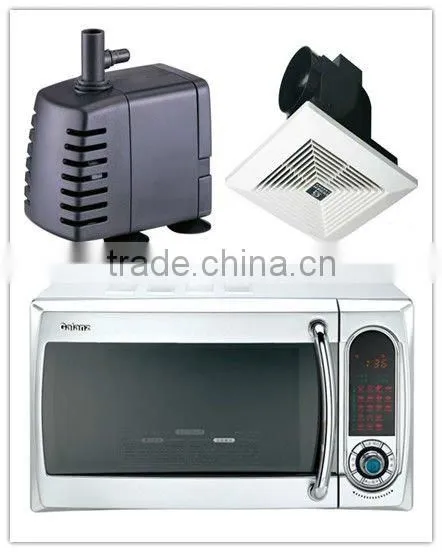

Ventilator, Nebulizer, Vacuum pump, Air pump, Oven, Oxygen machine
