ac Electric Motor 22V 50/60Hz Shaded Pole Motor High Speed Low Noise CE/UL/VDE Certified

ac Electric Motor 22V 50/60Hz Shaded Pole Motor High Speed Low Noise CE/UL/VDE Certified thumbnail-1
ac Electric Motor 22V 50/60Hz Shaded Pole Motor High Speed Low Noise CE/UL/VDE Certified photo-1
US$ 5.4 - 5.65 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Zhaoli Motor
Model Number:
YJ62-30
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Shenzhen Zhaoli Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Zhaoli Motor
Model Number YJ62-30
Type Asynchronous Motor
Frequency 50/60
Output Power 5-100W
Phase Single-phase
Certification CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL
AC Voltage Other, 100-240V
Place of Origin Guangdong, China

Specifications

Characteristics: Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, produceing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.



ac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certified







Application:



Ovens, Microwave ovens, Air-conditioners, Refrigerators, Washing machines, Fan heaters, Ventilators, Humidifiers, Water-pumps, Air-fresheners



ac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certified





Product General Performance Parameters:

Voltage-----------------------100-240VAC

Frequency-------------------50/60HZ

Power-------------------------5-100W

Insulation Class-------------A/E/B/F/H

Noise--------------------------less than 43Db (A

Life----------------------------5000-10000Hours

Core Thickness-------------12-40mm

Size----------------------------62.5*62.5mm

Shaft Diameter(mm)--------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35





More Pictures:

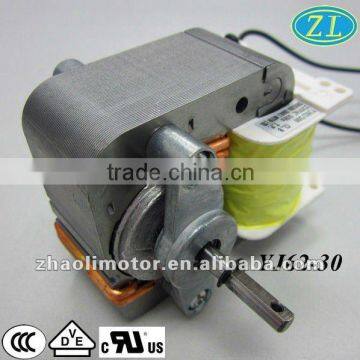

YJ61-30



ac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certifiedac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certifiedac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certifiedac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certifiedac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certified

 Welcome to contact us and visit our factory!







ac electric motor 22V 50/60Hz Shaded pole Motor high speed low noise CE/UL/VDE certified
