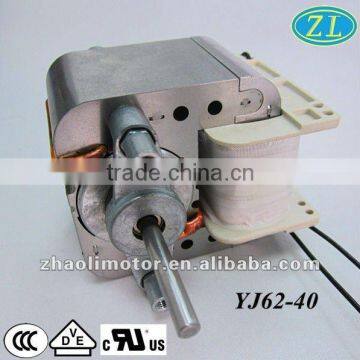

YJ62-40 Shaded Pole Motor
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T
You May Like
-
120V 60Hz High torque low rpm Electric Shaded Pole Motor YJ62-30 for vacuum pump, air compressor nebulizer, ventilator
-
220V fan motor high rpm electric motor YJ62-30 for condenser fan, air cooler, nebulizer, ventilator fan, vacuum pump
-
Fan motor 230V Shaded Pole AC Electric Motor YJ62-30: air cooler motor, nebulizer motor, vacuum pump
-
Fan motor 230V Single Phase Shaded Pole Motor YJ62-30
-
110v 50/60 Hz high speed electric ac motor for oven airfryer YJ62-30 CE/UL/VDE certified
-
Oven fan motor 230V 50/60Hz Class H high quality: Shaded pole motor CE/UL/VDE certified
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-40 | |
| Type | Asynchronous Motor | Frequency | 50/60 | |
| Output Power | 5-100W | Phase | Single-phase | |
| Certification | CCC, ROHS, UL, VDE, Other, CCC, ROHS, UL, VDE, CUL | AC Voltage | Other, 100-240V | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Characteristics: Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenanceSingle Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, produceing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Application:
Ovens, Microwave ovens, Air-conditioners, Refrigerators, Washing machines, Fan heaters, Ventilators, Humidifiers, Water-pumps, Air-fresheners
Product General Performance Parameters:
Voltage-----------------------100-240VAC
Frequency-------------------50/60HZ
Power-------------------------5-100W
Insulation Class-------------A/E/B/F/H
Noise--------------------------less than 43Db (A
Life----------------------------5000-10000Hours
Core Thickness-------------12-40mm
Size----------------------------62.5*62.5mm
Shaft Diameter(mm)--------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35

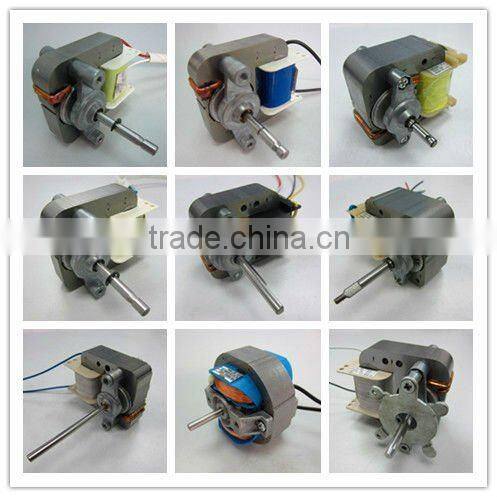

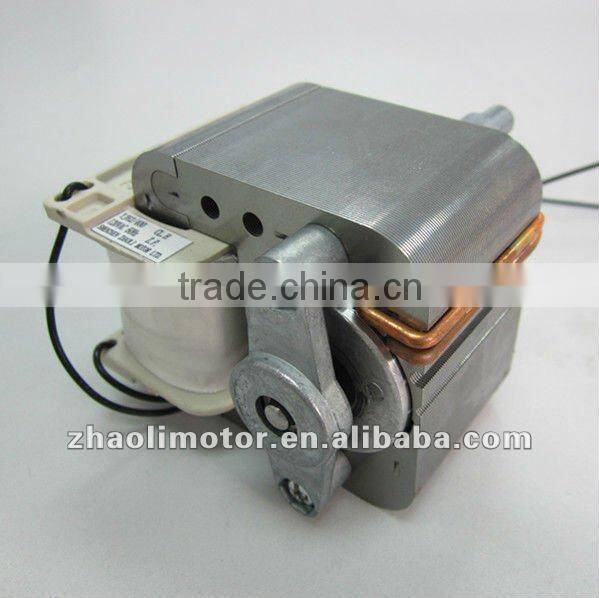

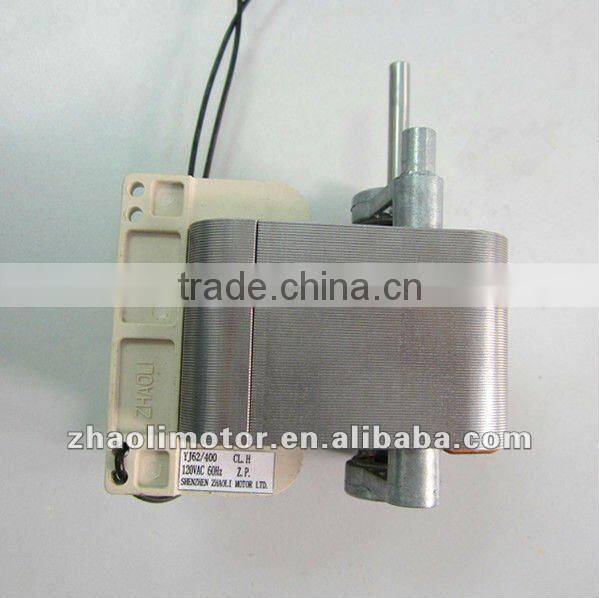

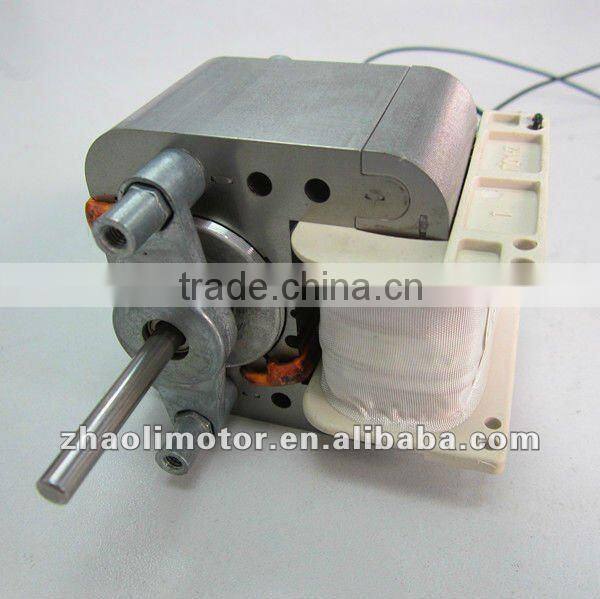

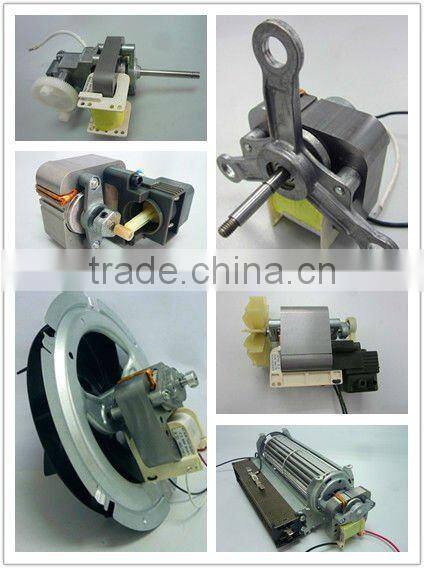

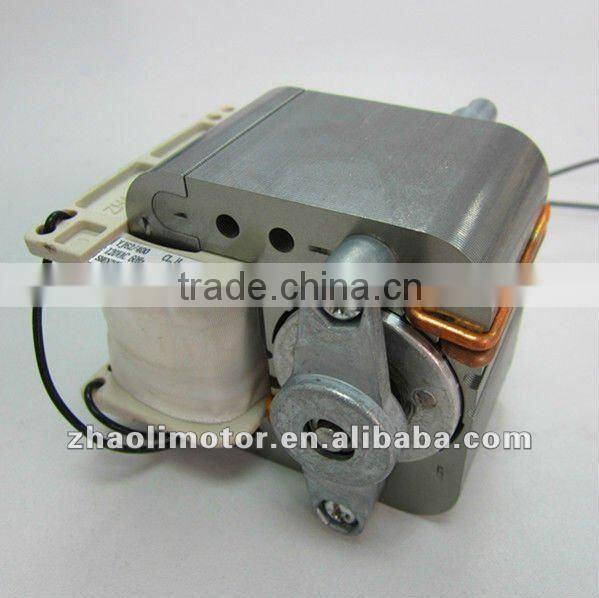

More Pictures:
YJ62-40

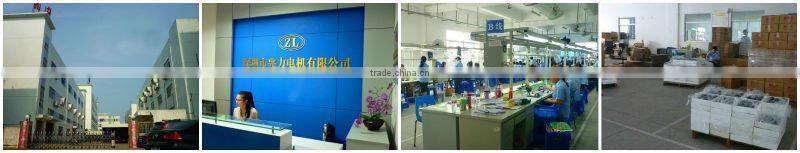

Welcome to contact us and visit our factory!
