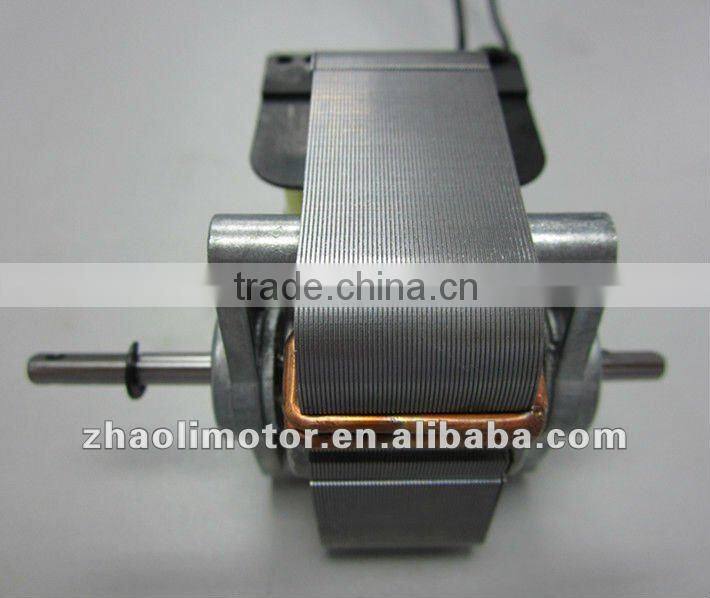

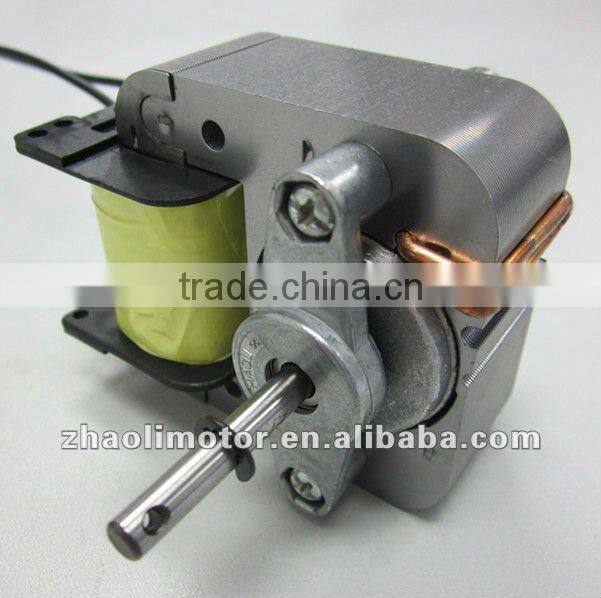

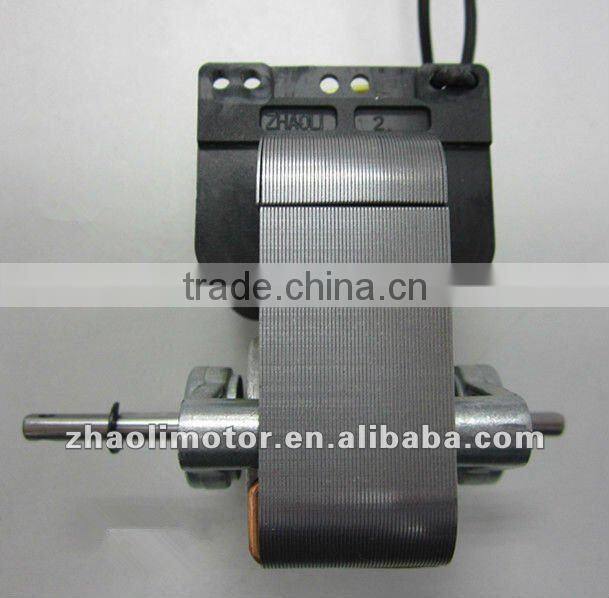

Help CenterFan Motor 230V Air Pump Motor Shaded Pole Motor YJ62-25: 3000rpm, Motor Manufacturer for Air Comperssor Nebulizer, Ventilating
Related Products
-
220V Fan Motor High Rpm ac Electric Motor Shaded Pole Motor YJ62-25: sp Motor, 220V, 50hzUS$ 2.5 - 4.7MOQ: 1000 Units -
Best Water Pump Motor Small Powerful Motors YJ62-30:50/60hz Electric MotorUS$ 3 - 6MOQ: 1000 Units
-
Electric Air Compressor Nebulizer Motor Shaded Pole Motor YJ62: High Rpm High Torque sp Motor, 220V, 50hzUS$ 3 - 6MOQ: 1000 Units
-
Air Compressor Nebulizer Motor Oxygen Concentrator Machine Motor Electric Motor ac Shaded Pole Motor YJ62-30: 120V,60hzUS$ 3 - 6MOQ: 1000 Units
-
Best Water Pumo Motor Small Powerful Motors YJ62-30:Single Phase 2800rpm Motor for Nebulizer,water Pump,oven,electric FanUS$ 3 - 6MOQ: 1000 Units
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm

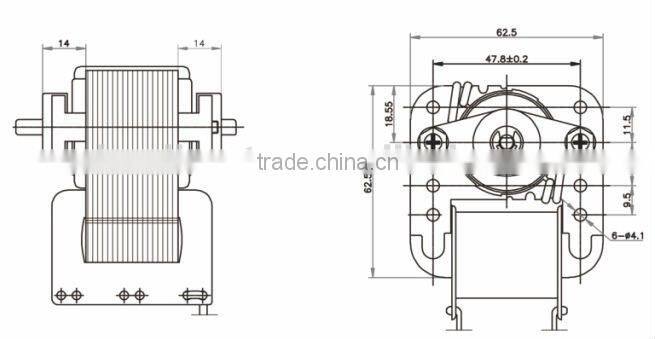

Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-25
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ventilator, Nebulizer, Vacuum pump, Air pump

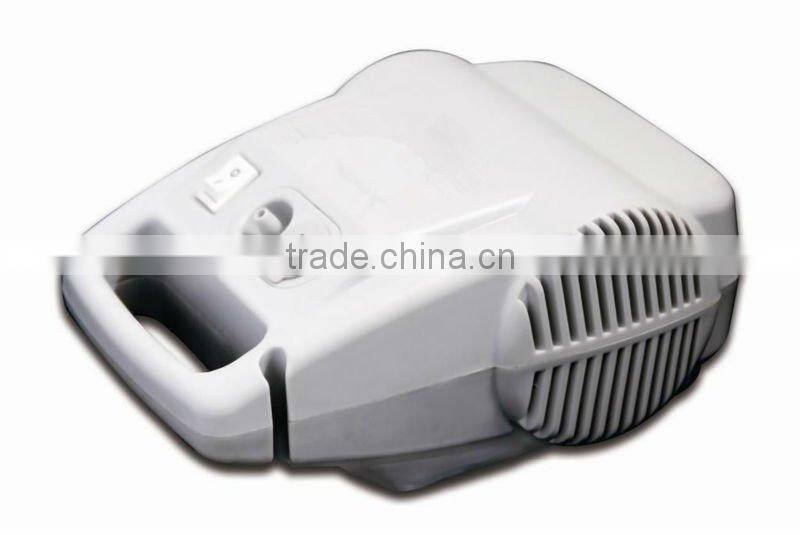

Motor with Pump assembly:
