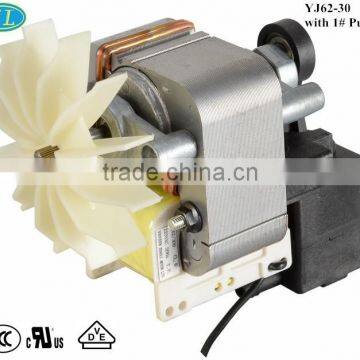

230VAC 50Hz shaded pole motor for medical device High pressure long life Air Compressor Nebulizer Motor

Name: 230VAC 50Hz shaded pole motor for medical device High pressure long life Air Compressor Nebulizer Motor
Brand: Zhaoli Motor
Availability: InStock

FOB Price

USD $5.5 - $6.5 / Piece

1000 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Zhaoli Motor	Model Number	YJ62-30
Type	Asynchronous Motor	Frequency	50/60
Output Power	5-100W	Phase	Single-phase
Certification	CCC, ROHS, UL, VDE, Other, CCC, ROHS, UL, VDE, CUL	AC Voltage	Other, 100-240V
Place of Origin	Guangdong, China

Product Description

Model: Air Compressor Nebulizer Motor

Specification:

Model	Shaded Pole Motor YJ62-30 with Compressor	Shaded Pole Motor YJ62-25 with Compressor
Voltage/ Frequency	AC 230V 50HZ	AC 230V 50HZ
Input Power	<70W	<60W
Insulation Class	CL.B	CL.B
Piston bearing	Ball bearing	Ball bearing
Stator	Silicone Steel 50W 1300	Silicone Steel 50W 1300
Shaft	S45C	S45C
Max Pressure	38-45PSI	30-38PSI
Operation Pressure	9-17PSI	8-16PSI
Air flow	4-8L/ min	4.5-9L/ min
Rated speed(on load)	2600RPM	2400RPM
Sound level	<70dB	<70dB
Working environment	0℃-- 40 ℃ RH 90% Max	0℃-- 40 ℃ RH 90% Max
Working hours	Motor only: 5000 hours	Motor only: 5000 hours
Working hours	Compressor with motor: continuously 1000 hours	Compressor with motor: continuously 1000 hours
Thermal protector	Recovery thermal protector 130℃	Recovery thermal protector 130℃
Dielectric strength	AC 1800V/1mA/1s	AC 1800V/1mA/1s

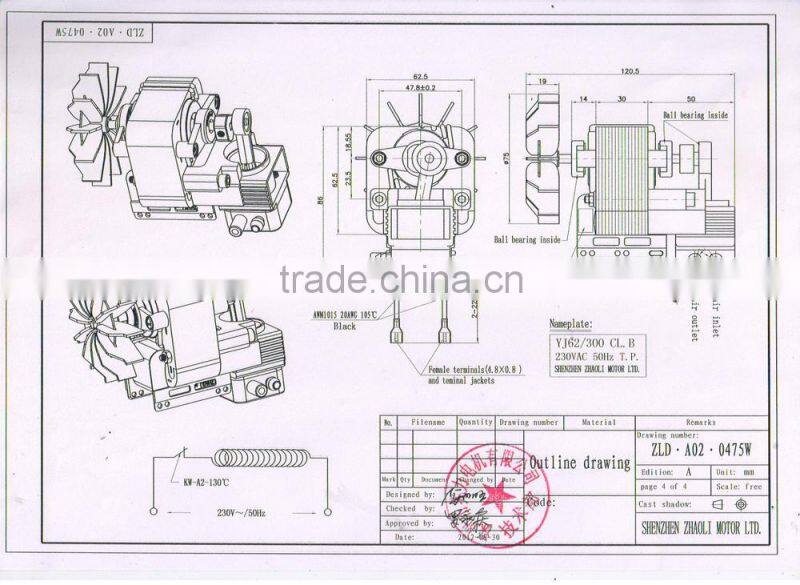

Product details:

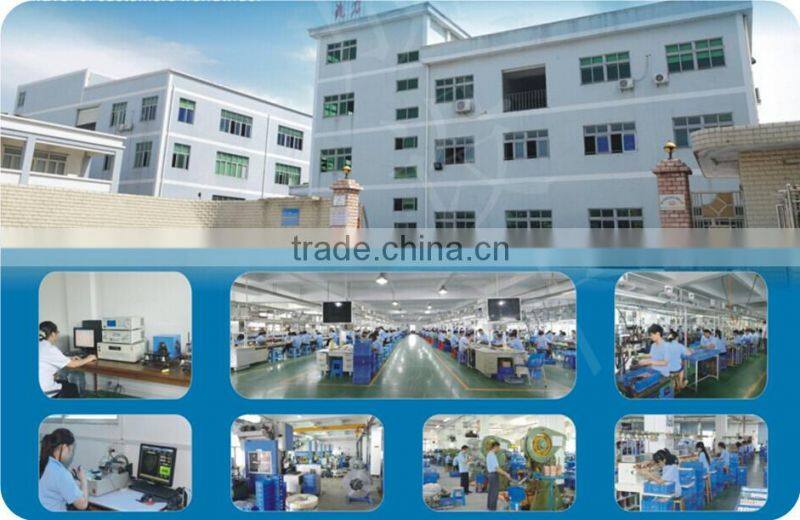

About us:

Shenzhen Zhaoli motor CO.,ltd is vendor of world famous companies like Vega, Electrolux, Lasko etc. We're getting rapid sustainable development since establishment in 2009.

In 2013 and 2014, Zhaoli reached annual output of 8 million pcs and

10 million pcs motors respectively. With 550 employees and 15 assembly lines,

we are confident to achieve better performance in coming time.

Welcome to contact us and visit our factory!
