IC Bank Kiosk CRT-288K Card Reader
- 500000 Piece / Pieces per Month
- Shenzhen/Hongkong/Guangzhou
- Credit Card
- Vending Machine Kiosk CRT-288C Manual Dip Card Reader
- IC/RFID/Meg ATM CRT-288B Card Reader
- RFID/IC/Meg ATM CRT-288B Manual Insert Card Reader
- Contactless RFID/IC Kiosk CRT-288B Dip Manual Card Reader
- Cashless Manual Insert Kiosk RFID/IC CRT-288B Card Reader
- Motor Hybrid IC/RFID/Magnetic Card Writer and Reader CRT-350
Product Details
Brand Name: | CREATOR | Model Number: | CRT-288K |
Product Description

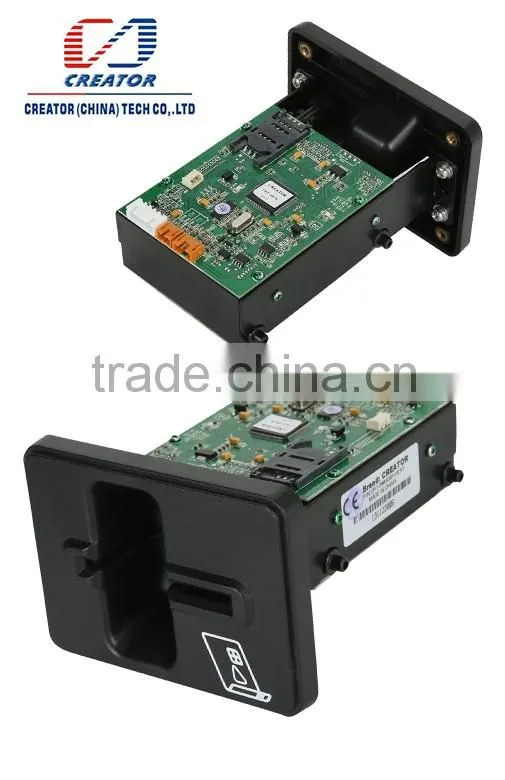

IC/RFID/Meg ATM CRT-288K Card Reader
CRT-288K series are dip card reader equipments for RFID/IC /magnetic stripe card operation
QUICK DETAIL:
1).IC&RF card reading&writing,magnectic stripe card read only.
2).Special baffle design protect reader from foreign objects.
3). Small dimension(78mm*35.1mm* 110.5mm), easy maintenance, cost efficient.
4).Customization services are avaiable.

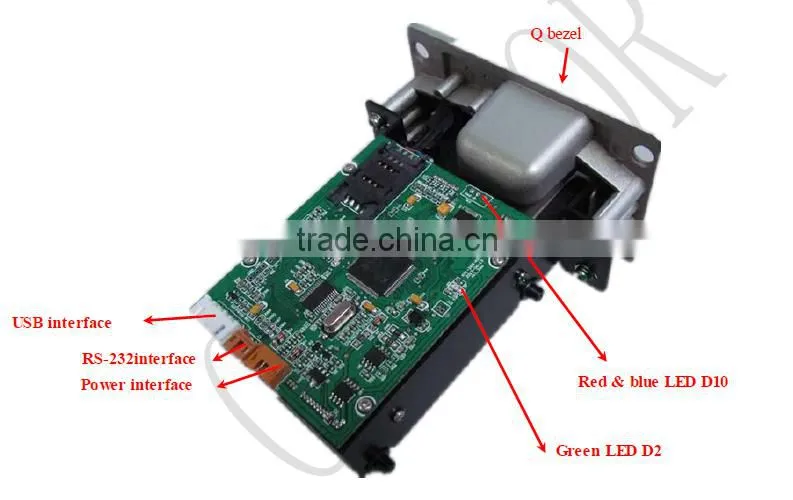

5).Optional interface : RS232&USB(automatically detect interface)
6).Optional multiple bezel and PSAM.
7).EMV certified.
With auto-lock/unlock function out of auto-latch structure,CRT-288K could be usded at:
Specification:
Item | Description |
Magnetic stripe | ISO 7810, 7811 |
Track 1,2,3 Hi-co/Lo-co read only | |
Contact smart card | ISO 7816-1,2,3,4 |
CPU card (T=0, T=1) | |
(Support)T=0,T=1 PSAM card | |
Contactless smart card (optional) | ISO 14443 type A & B, Mifare one, S50,S 70,ULMifare plus,and Desfire . |
Interface | RS232/USB |
Power | DC 5V±10% |
Life time | Micro switch: 500,000 times Min IC contact: 300,000 times Min |
Environment conditions | Operation: 0℃~50℃,0~90% RH (Non condensing) |
Storage: -25℃~80℃,0~95% RH (Non condensing) | |
Dimension | 78mm (W) * 35.1mm (H) * 110.5mm (L) |
Weight | Approx 200g |
