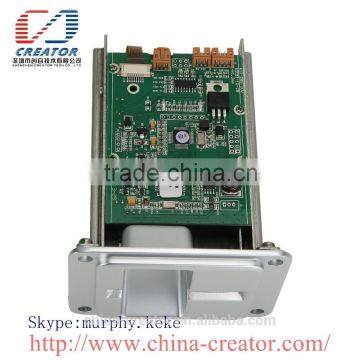

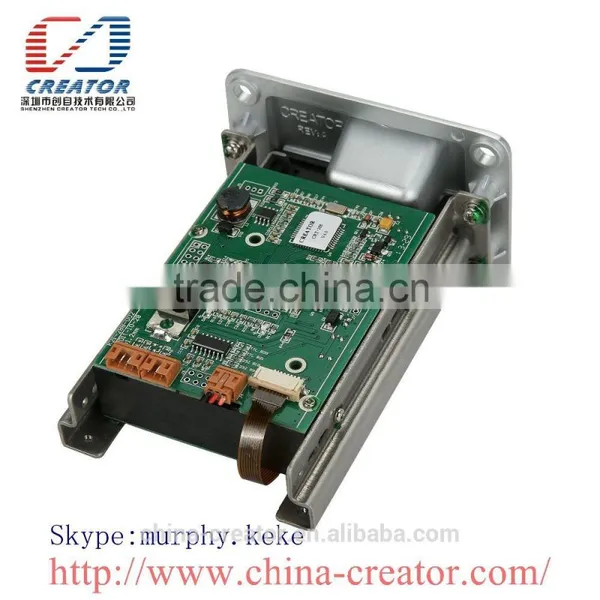

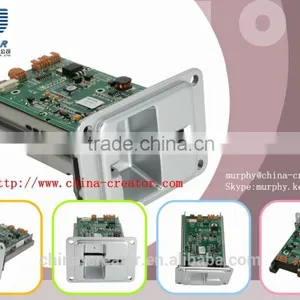

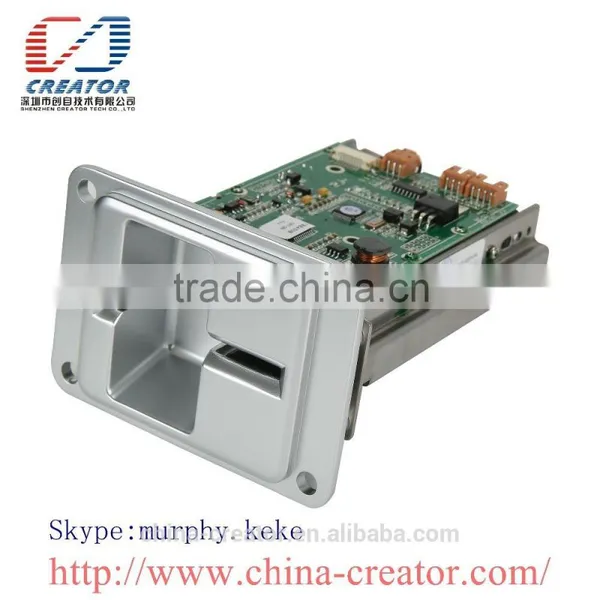

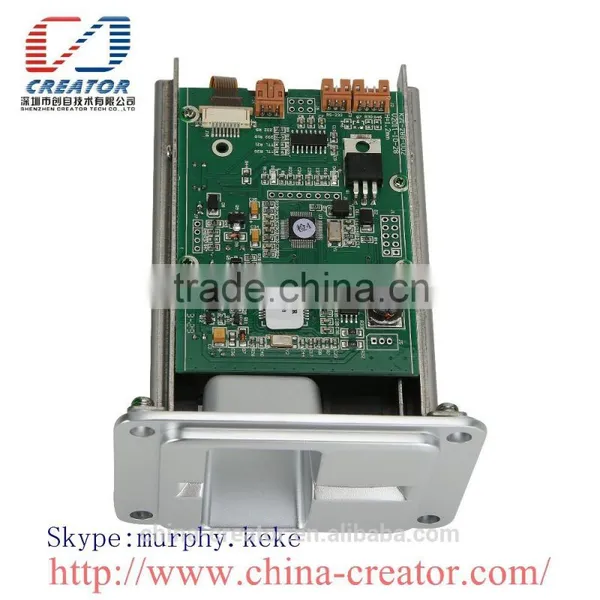

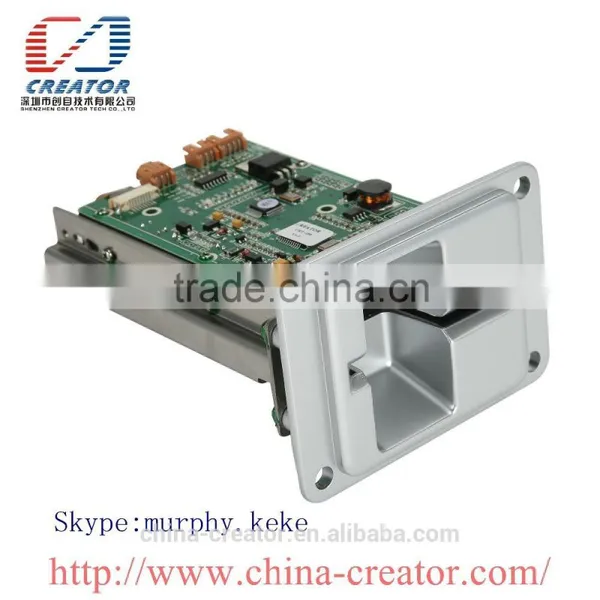

Chip Card RFID Gaming CRT-288 Card Reader
QUICK DETAIL:
- IC&RF card read &write
- RS232 interface
- DC12V ±5%
- Automatically lock the card,manual/auto card ejection
- Special design for protecting reader from foreign object
- Multiple bezel options(A,B,C,E,P5,check below)
- PSAM board for option
- Special baffle design for protecting reader from foreign object
- EMV certified

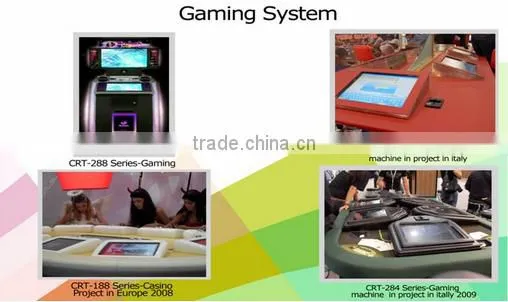

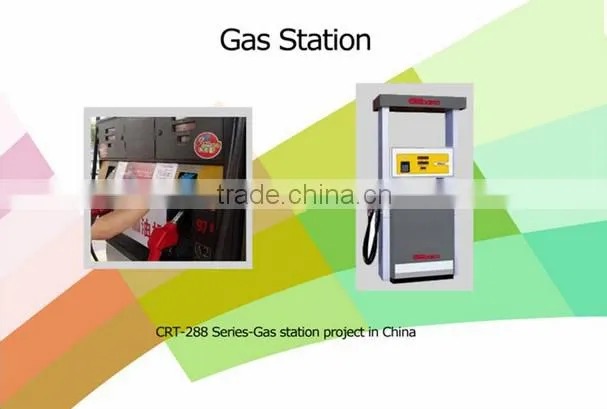

As a manual card reader surporting RFID/IC ,CRT-288 is widely used in:
| Item | Description |
| Magnetic stripe | ISO 7810, 7811 |
| Track 1,2,3 Hi-co/Lo-co read only | |
| Contact smart card | ISO 7816-1,2,3,4 |
| CPU card (T=0, T=1) | |
| (Support)T=0,T=1 PSAM card | |
| Contactless smart card (optional) |
ISO 14443 type A & B, Mifare one, S50,S 70,ULMifare plus, and Desfire . |
| Interface | RS232/USB |
| Power | DC 5V±10% |
| Life time | Micro switch: 500,000 times Min IC contact: 300,000 times Min |
| Environment conditions | Operation: 0℃~50℃,0~90% RH (Non condensing) |
| Storage: -25℃~80℃,0~95% RH (Non condensing) | |
| Dimension | 78mm (W) * 35.1mm (H) * 110.5mm (L) |
| Weight | Approx 200g |
Dip card reader CRT-288 has below main features:
- IC&RF card read &write
- RS232 interface
- DC12V ±5%
- Automatically lock the card,manual/auto card ejection
- Special design for protecting reader from foreign object
- Multiple bezel options
- PSAM board for option
- Special baffle design for protecting reader from foreign object
- EMV certified
