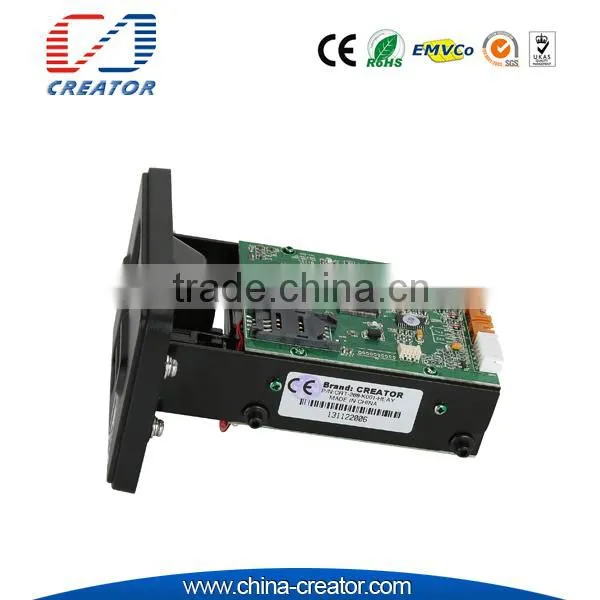

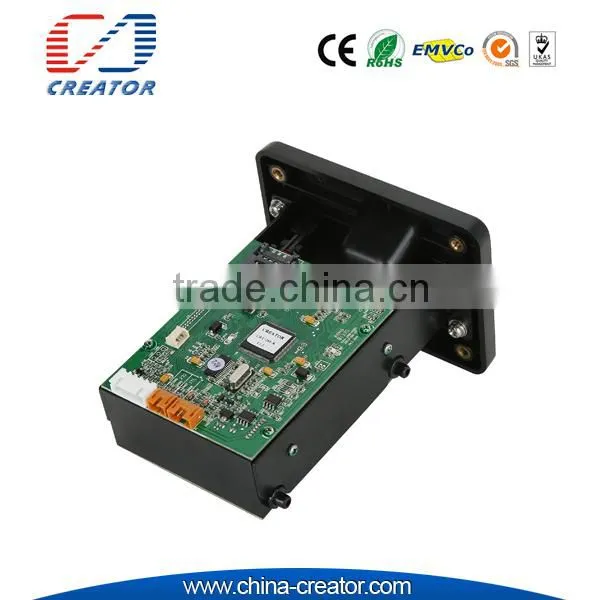

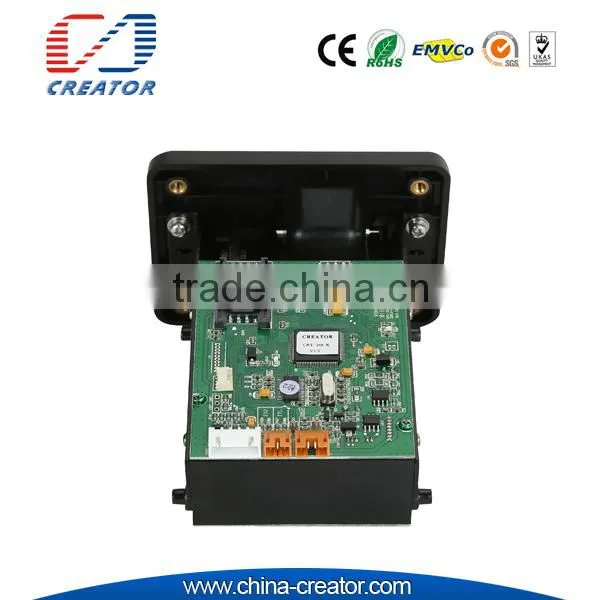

Dip Card Reader CRT-288K
Model: CRT-288K
Quick Details
CRT-288K series are dip card readerequipments for RFID/IC /magnetic stripe card operation, with the function of the automatic card latch for locking.
Features
Dip card reader CRT-288K has below main features:
- IC&RF card reading & writing, magnetic stripe card read only
- Special baffle design for protecting reader from foreign object
- Small dimensions, easy maintenance, cost efficient
- Customization services
- Two kinds of communication interface: USB&RS232
- EMV certified
Applications
- Self-service terminal
- Recharging machine
- Tanker
- Media inquiry machine
- Access control system
- Vending machine
- ATM
Specifications
Item |
Description |
Magnetic stripe |
ISO 7810, 7811 |
Track 1,2,3 Hi-co/Lo-co read only | |
Contact smart card |
ISO 7816-1,2,3,4 |
CPU card (T=0, T=1) | |
(Support)T=0,T=1 PSAM card | |
Contactless smart card (optional) |
ISO 14443 type A & B, Mifare one, S50,S 70,ULMifare plus, and Desfire . |
Interface |
RS232/USB |
Power |
DC 5V±10% |
Life time |
Micro switch: 500,000 times Min IC contact: 300,000 times Min
|
Environment conditions |
Operation: 0℃~50℃,0~90% RH (Non condensing) |
Storage: -25℃~80℃,0~95% RH (Non condensing) | |
Dimension |
78mm (W) * 35.1mm (H) * 110.5mm (L) |
Weight |
Approx 200g |
Competitive Advantages
- RFID/IC card read/write, magnetic stripe card read only.
- Electric card latch and release function. Card could be retrieved once latched if you pull by over 15 N of pulling force
- RS232/USB interface (automatically detect interface)
- Agile magnetic stripe reading type: Read when insert/withdraw and uploaded passively /actively
- Long Life time (500,000 times)
