Home > Products > Paper Plate Machine > New Type 2016 Paper Plate Making Machine Price Quality Choice

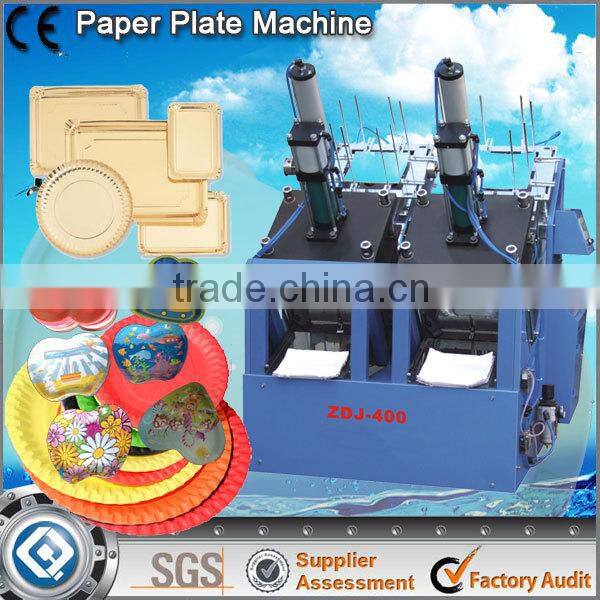

New Type 2016 Paper Plate Making Machine Price Quality Choice
- Ningbo
- T/T Money Gram
You May Like
-
ZDJ-400 Two Working Stations Disposable Paper Plate Forming Machine
-
ZDJ-40 Two Working Stations Paper Plate And Cup Making Machine
-
ZDJ-40 Two Working Stations Paper Plate Cutting Machine
-
2012 Good Quality Low Price Paper Plate Laminating Machine
-
ZDJ -40 Paper Plate Pulp Molding Machine
-
2012 Good Quality Low Price Automatic Paper Plate Machine
Product Details
| Condition | New | Product Type | Paper Plate Machine | |
| Processing Type | Other, paper plate making machine price | Place of Origin | Zhejiang, China | |
| Brand Name | QH | Model Number | ZDJ-400 | |
| Voltage | 220V 50HZ | Power(W) | 3kw | |
| Dimension(L*W*H) | 1430*1600*1900mm | Weight | 600kg | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Company Brief Introduction:
Our service
we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best and professional service from us.
Paper plate making machine price
Paper plate making machine price technical parameters:
Paper plate making machine price make any shape of paper plates.
Main technical parameters: | ||
Model | ZDJ-400 paper plate making machine price | |
Paper Plate Size | 4—11 inch (mold exchangeable) | |
Raw Material | Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other. | |
Suitable paper weight | 300-600 gsm (favorable weight: 350-450gsm) | |
Rated Productivity | 60--80 piece/minute (total two stations,so two moulds is included) | |
Power Source | 220V/380V 50Hz or other required | |
Total Power | 3KW | |
Total Weight | 600KG | |
Package Size (L x W x H) | 1430mm x 1600 mm x 1900 mm | |
Working Air Source | Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air compressor ) | |
If your plate is very large, and the paper is up 600gsm, we design a special machine for you | ||
Pressurizing Air Cylinder Technical Specification | Air flow volume | 0.8 cubic/min |
Air pressure | 0.6-0.8Mpa | |
Air cylinder stroke | 150mm | |
1:.Air source : Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air comprssor);
2:.If your plate is very large, and the paper is up 600gsm, we design a special machine for you.
Pressurizing Air Cylinder Technical Specification :
1. MPT-63-150-5T-10;
2. Air flow vlume :0.8 cubic/min;
3. Air pressure:0.6-0.8Mpa;
4.Air cylinder stroke:150mm;
Paper plate making machine price main features:
Model ZDJ-400 paper plate making machine price developed and researched in the market requirement.
It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster
working speed, higher safety-performance, safer operation and easier maintenance than the conventional
one.
Model ZDJ-400 paper plate making machine price adopts high efficientpressurizing air cylinder,
so that the Max. pressure can reach to 5T,compared with the oil pressure one, it has the advantages of high
speed, environment protection and humanism design.
Standard ZDJ-400 paper plate making machine price has two working stations, each station install
one set of mold and each station has separately PLC digital control and electric control. It is widely applied to
make paper plate (or aluminum foil laminated paper )in round (rectangle, square, circular,or irregular)shape.
Machine speed changes against the material (paper)thickness and the plate size.
Samples made by ZDJ-400 paper plate making machine price
packing:FCL: paper plate making machine price with wood tray and plastic film.
LCL: paper plate making machine price with wood box and plastic film.
We will Spraying oil in paper plate making machine price for keeping rust away
CE certificate & Exhibition
If you are interested in our ZDJ-400 paper plate making machine price , welcome to contact me.
