2013 Good Quality Low Price Paper Plate Machine Price
- 100 Set / Sets per Month
- Ningbo
- T/T
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Reciprocating small egg tray machine apple tray machine
- 3600mm Multi Wire Fluting Paper Machine Production Line Made Paper in 110-250gsm
- 300m/min 800 degree Micro Perforation Machine Hot Pin Roller Perforated punching machine
- 300m/min 800 degree Hot Needle Micro Perforation Machine Needle Roller Perforated punching machine
- Brass Steel aluminium Perforation roller with needles / Perforating Pin cylinder / Pinned sleeve segments for plastic film nonwoven fabric
Product Details
Condition: | New | Product Type: | Paper Plate Machine | Processing Type: | Other, Paper products processing |
Place of Origin: | Zhejiang, China | Brand Name: | QC | Model Number: | ZDJ-400 |
Voltage: | 220V 50Hz | Power(W): | 3 KW | Dimension(L*W*H): | 1430X1600X 1900 mm |
Weight: | 600kg | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Automatic fully dobule working station2.Good machine includes whole process
3.It' an ideal paper plate equipment
4.stable
Technical Specification: | ||

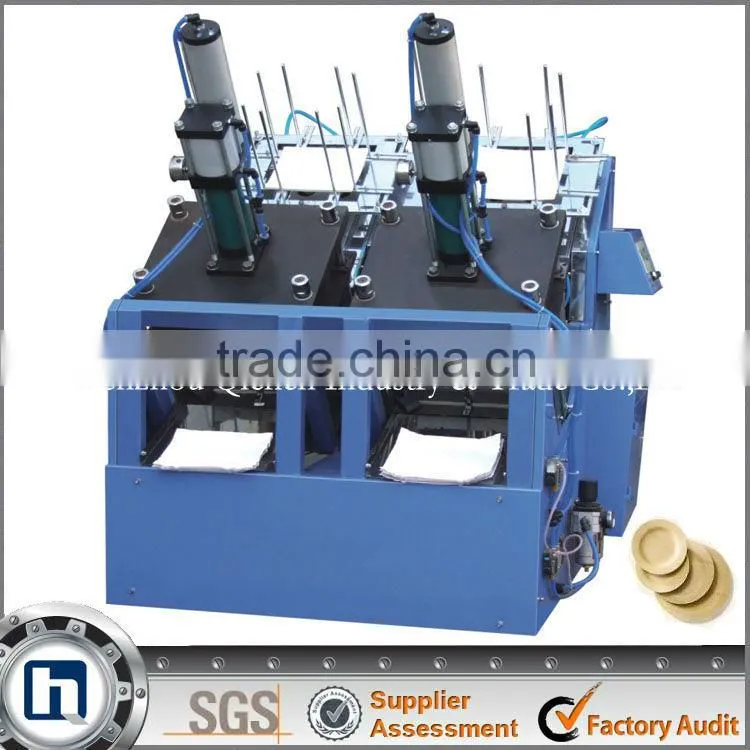

Model | ZDJ-400 Automatic Paper Plate Making Machine In India | |
Paper Plate Size | 4—11 inch (mold exchangeable); | |
Raw Material | Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other; | |
Suitable paper weight | 300-500 gsm (favorable weight: 350-450gsm) | |
Rated Productivity | 60-80 piece/minute (total two stations,so two mounds is included) | |
Power Source | 220V/380V 50Hz or other required | |
Total Power | 3 KW | |
Total Weight | 600KG | |
Package Size (L x W x H) | 1430mm x 1600 mm x 1900 mm | |
Working Air Source | Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air compressor); | |
If your plate is very large, and the paper is up 600gsm, we design a special machine for you | ||
Pressurizing Air Cylinder Technical Specification | ||
Air flow volume | 0.8 cubic/min | |
Air pressure | 0.6-0.8Mpa | |
Air cylinder stroke | 150mm |
Main features

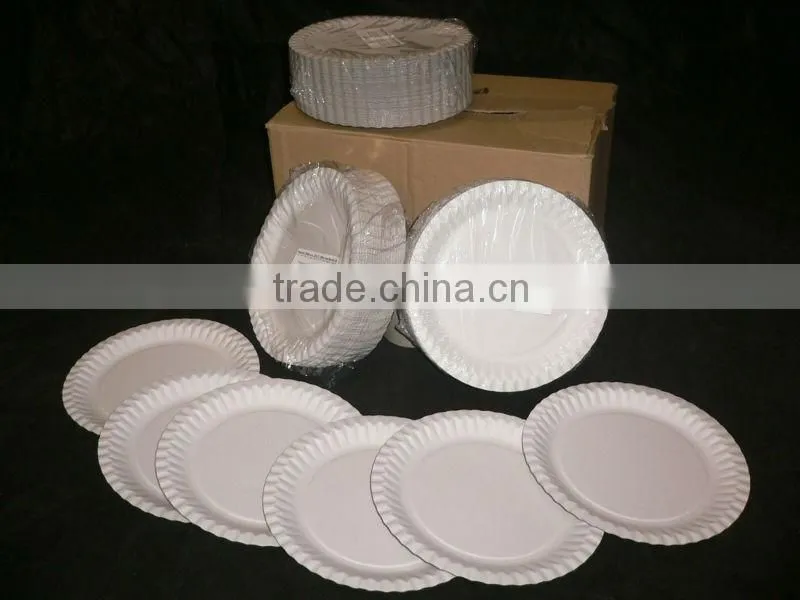

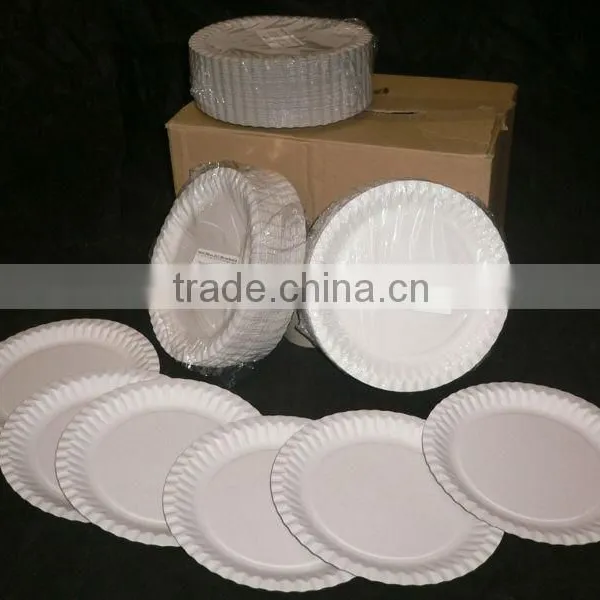

1.It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.
2Standard ZDJ-40 Paper plate machine has two working stations; each station install one set of mold and each station have separately PLC digital control and electric control.
3.Model ZDJ-40 paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. pressure can reach to 5T ,Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism design
4.The Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Believe we are your best choice
If you interest ,pls contact us freely!
My skype:wzqc001 QQ:1902685834
Paper Plate Machine Price Paper Plate Machine Price
