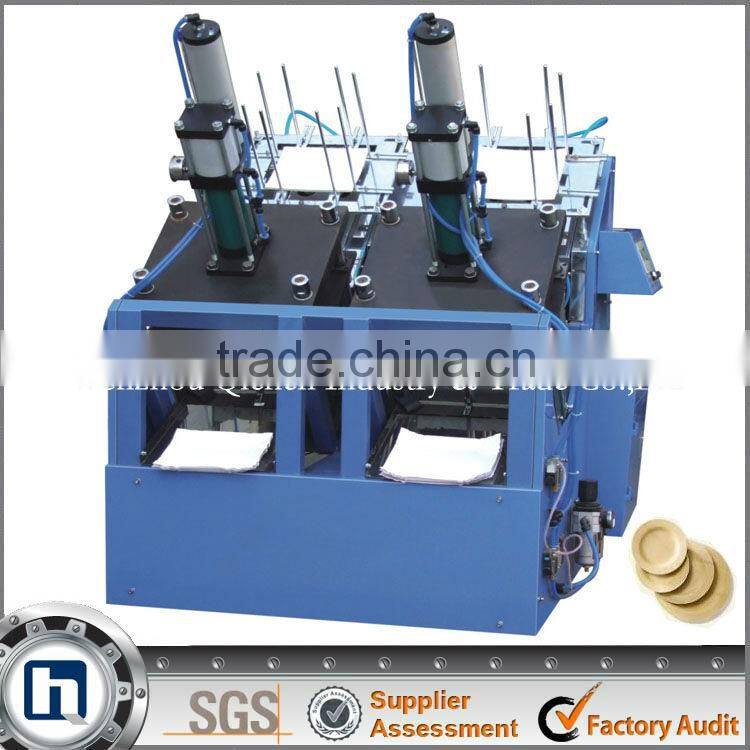

ZDJ-40 Profeesional New Design Two Working Stations Automatic Paper Plate Machine
- Ningbo
- T/T Money Gram Credit Card
You May Like
-
ZDJ-400 Automatic Paper Plate Forming Machine
-
2012 Good Quality Low Price Paper Plates Machine
-
2012 Good Quality Low Price Manual Paper Plate Machines
-
2013 Good Quality Low Price Paper Plate Machine Price
-
2012 Good Quality Low Price Paper Plate Machines
-
2012 Good Quality Low Price Hydraulic Paper Plate Making Machine
Product Details
| Product Type | Paper Plate Machine | Processing Type | Paper Folding Machine | |
| Place of Origin | Zhejiang, China | Brand Name | QC | |
| Model Number | ZDJ-40 | Voltage | 220V/380V 50Hz or other required | |
| Power(W) | 2KW | Dimension(L*W*H) | 1430mm x 1600 mmx 1900 mm | |
| Weight | 1000KGS | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Intelligent paper plate making machine.2.Two stations free with two moulds.
3.Low energy consumption good applicability
ZDJ-400 Paper Plate Machine Description:
Model ZDJ40 Automatic Paper Plate Forming Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Model ZDJ40 paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. pressure can reach to 5T ,Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism design .
Standard
ZDJ40 Paper plate machine has two working stations; each station install one set of mold and each station have separately PLC digital control and electric control.
It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.
Pressurizing Air Cylinder Technical Specification :
A. MPT-63-150-5T-10;
B. Air flow vlume :0.8 cubic/min;
C. Air pressure:0.6-0.8Mpa;
D. Air cylinder stroke:150mm;
Model | ZDJ-40 Automatic Paper Plate Forming Machine | |
Paper Plate Size | 4--9 inch (mold exchangeable); | |
Raw Material | Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other; | |
Suitable paper weight | 300-600 gsm (favorable weight: 350-450gsm) | |
Rated Productivity | 15--25 piece/minute (total two stations,so two moulds is included, you can make different sizes by changing moulds ); | |
Total Power | 2 KW | |
Power Source | 220V 50Hz or other required; | |
Total Weight | 1000 Kg |
|
Package Size | 1430mm x 1600 mmx 1900 mm | |
(L x W x H) | ||
Air source | Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air comprssor); | |
If your plate is very large, and the paper is up 600gsm, we design a special machine for you | ||
Pressurizing Air Cylinder Technical Specification | ||
Air flow vlume | 0.8 cubic/min | |
Air pressure | 0.6-0.8Mpa | |
Air cylinder stroke | 150mm | |
If you have any problem ,please contact !
