Best Quality Double Work StationPaper Plate Machine List
- 50 Set / Sets per Month
- Ningbo
- T/T
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Paper Plate Machine | Processing Type: | Other, paper plate machine list |
Place of Origin: | Zhejiang, China | Brand Name: | QC | Model Number: | ZDJ-400 paper plate machine list |
Voltage: | 220V/380V 50Hz | Power(W): | 3 KW | Dimension(L*W*H): | 1430mm x 1600 mm x 1900 mm |
Weight: | 600KG | Certification: | CE | Warranty: | 1 year warranty |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Company Brief Introduction:
Our service
we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best and professional service from us.
CE certificate & Exhibition

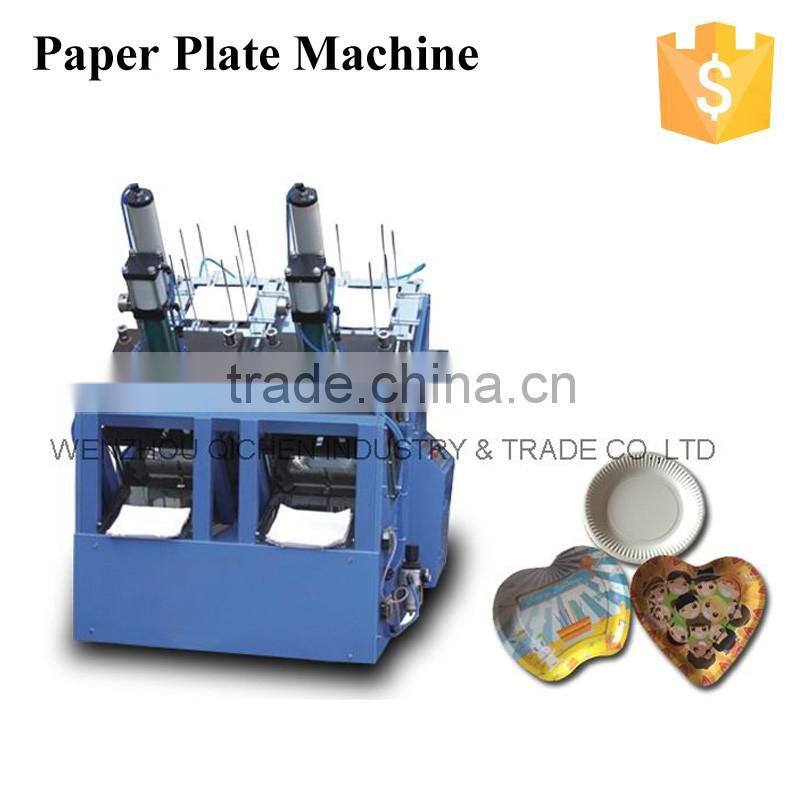

Paper plate machine list

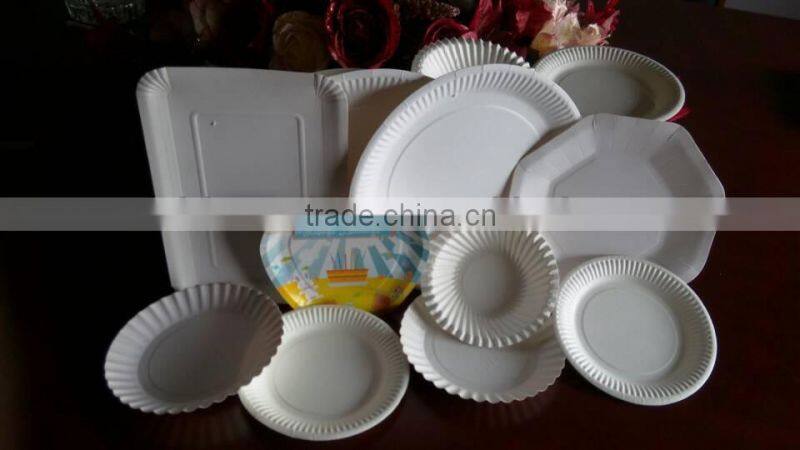

Samples made by ZDJ-400 paper plate machine list
Paper plate machine list technical parameters:
paper plate machine list make any shape of paper plates.
Main technical parameters: | ||
Model | ZDJ-400 paper plate machine list | |
Paper Plate Size | 4—11 inch (mold exchangeable) | |
Raw Material | Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other. | |
Suitable paper weight | 300-600 gsm (favorable weight: 350-450gsm) | |
Rated Productivity | 60--80 piece/minute (total two stations,so two moulds is included) | |
Power Source | 220V/380V 50Hz or other required | |
Total Power | 3KW | |
Total Weight | 600KG | |
Package Size (L x W x H) | 1430mm x 1600 mm x 1900 mm | |
Working Air Source | Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air compressor ) | |
If your plate is very large, and the paper is up 600gsm, we design a special machine for you | ||
Pressurizing Air Cylinder Technical Specification | Air flow volume | 0.8 cubic/min |
Air pressure | 0.6-0.8Mpa | |
Air cylinder stroke | 150mm |
1:.Air source : Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air comprssor);
2:.If your plate is very large, and the paper is up 600gsm, we design a special machine for you.
Pressurizing Air Cylinder Technical Specification :
1. MPT-63-150-5T-10;
2. Air flow vlume :0.8 cubic/min;
3. Air pressure:0.6-0.8Mpa;
4.Air cylinder stroke:150mm;
Paper plate machine list main features:
Model ZDJ-400 paper plate machine list developed and researched in the market requirement.
It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster
working speed, higher safety-performance, safer operation and easier maintenance than the conventional
one.
Model ZDJ-400 paper plate machine list adopts high efficientpressurizing air cylinder,
so that the Max. pressure can reach to 5T,compared with the oil pressure one, it has the advantages of high
speed, environment protection and humanism design.
Standard ZDJ-400 paper plate machine list has two working stations, each station install
one set of mold and each station has separately PLC digital control and electric control. It is widely applied to
make paper plate (or aluminum foil laminated paper )in round (rectangle, square, circular,or irregular)shape.
Machine speed changes against the material (paper)thickness and the plate size.
packing:FCL: paper plate machine list with wood tray and plastic film.
LCL: paper plate machine list with wood box and plastic film.
We will Spraying oil in paper plate machine list for keeping rust away
If you are interested in our ZDJ-400 paper plate machine list , welcome to contact me.
