1. Street poles production line equipment
This production line is the most economical configuration, with high efficiency and reliable quality, they can let users make raw materials to rough poles without cooperation.
Street poles production line equipment (in process) include:
- ZDW43J-6*1800 Simple decoiler machine
- ZQ11-6*2400*14000 Steel plates diagonally shearing machine
- WE67Y-200/7000 Tandem press brake machine
- HFH320*6-14000 Automatic welding machine
- W31Y-600*10 Steel tubes straightened machine
The above equipment can order according to your requirement and producing. Please consult to us if you don’t understand, we can be your best staff officer with sincere heart, ensure of your mistake buying. We will do our best to let your make the best use.
2. Processing flow
- Coil feeding & processing
- Steel plates diagonally shear to trapezoidal type
- Plates bending on press brake
- Transfer bended poles to submerged arc welding machine
- Straighten steel tube
- Manual welding flanges and door lights
- Sand blast
- Spraying galvanization (according to the request)
The area of workshop: it need about 60000*18000mm two or three plants without storage area and welding area. We can design the plant according to the users actual sizes, to ensure the operating production line. It need the power with about 100 kilowatt.

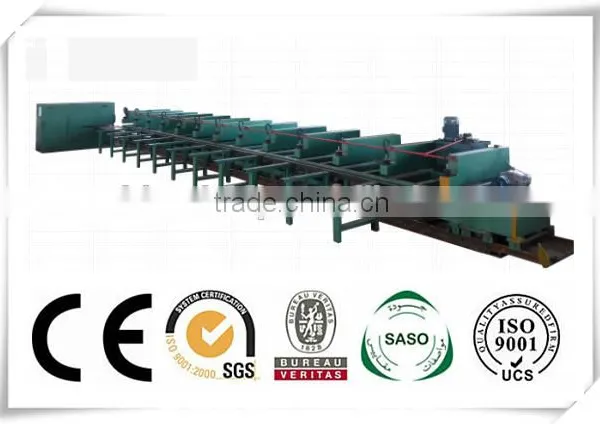

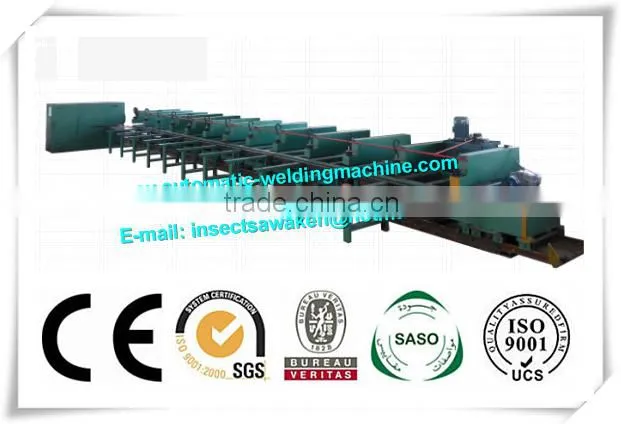

ZQ11-6*2400*14000 Steel plates diagonally shearing machine
(Video link: http://youtu.be/WJbKdts_GSk)
a. Technique parameters of machine
No. |
Item |
Specification |
|
1 |
Shearing length |
12000mm |
|
2 |
Maximum shearing thickness |
6mm |
|
3 |
Maximum shearing width |
2400mm |
|
4 |
Driven device speed |
25m/min |
|
5 |
Roller shear head motor |
Y-112M-4, 2*3kw |
|
6 |
Feeding device motor |
YCT200-4A, 4kw |
|
7 |
Oil pump motor |
Y160M-4, 11kw |
|
8 |
Laod feeder motor |
Y100l2-4, 3kw |
|
9 |
Oil pump |
25MCY14-1B, 25ml/r |
|
10 |
Gear pump |
CB-25B, 25ml/r |
|
11 |
Maximum pressure of system |
20Mpa |
|
|
12 |
Size |
L |
33000mm |
W |
3800mm |
||
H |
1600mm |
||
13 |
Weight |
18000kg |
|
b. Usage
This machine is suitable for the plate cutting and processing specially the long plate. It is easy to operating and processing the optional length of the plate, press the plate which needs to cut to the driven device through the hydraulic cylinder, and shear it by revolving cutter. It can also cuts taper plate according to the request inclination. Therefore, this machine widely used in the processing of light pole, vessel, metal structure, ships, building, hardware and so on.
