1. Street poles production line equipment
This production line is the most economical configuration, with high efficiency and reliable quality, they can let users make raw materials to rough poles without cooperation.
Street poles production line equipment (in process) include:
- ZDW43J-6*1800 Simple decoiler machine
- ZQ11-6*2400*14000 Steel plates diagonally shearing machine
- WE67Y-200/7000 Tandem press brake machine
- HFH320*6-14000 Automatic welding machine
- W31Y-600*10 Steel tubes straightened machine
The above equipment can order according to your requirement and producing. Please consult to us if you don’t understand, we can be your best staff officer with sincere heart, ensure of your mistake buying. We will do our best to let your make the best use.
2. Processing flow
- Coil feeding & processing
- Steel plates diagonally shear to trapezoidal type
- Plates bending on press brake
- Transfer bended poles to submerged arc welding machine
- Straighten steel tube
- Manual welding flanges and door lights
- Sand blast
- Spraying galvanization (according to the request)
The area of workshop: it need about 60000*18000mm two or three plants without storage area and welding area. We can design the plant according to the users actual sizes, to ensure the operating production line. It need the power with about 100 kilowatt.

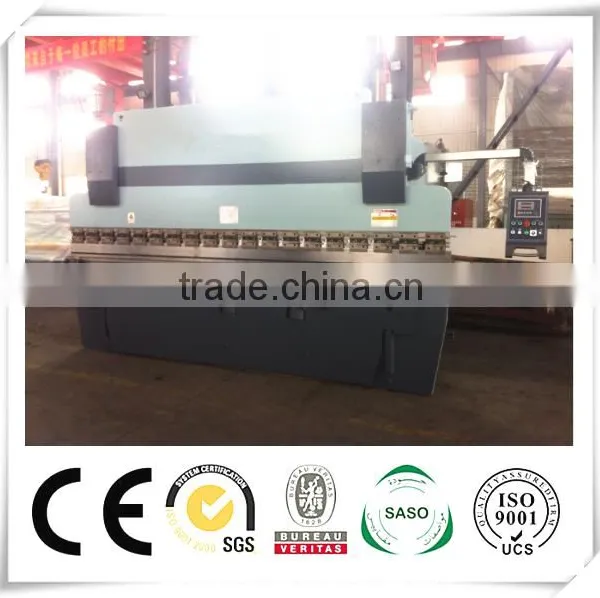

WE67Y-200/7000 Tandem press brake machine
a. Technique parameters
No. |
Item |
Specification |
|
1 |
Normal pressure |
2*2000KN |
|
2 |
Length of worktable |
2*6000mm |
|
3 |
Maximum slider stroke |
200mm |
|
4 |
Maximum open height |
260mm |
|
5 |
Throat depth |
400mm |
|
6 |
thickness of plate |
≤4mm |
|
7 |
power |
2*15kw |
|
8 |
Size |
L |
14000mm (tandem) |
W |
2525mm |
||
H |
4380mm |
||
9 |
Weight |
2*22t |
|
b. Description of machine

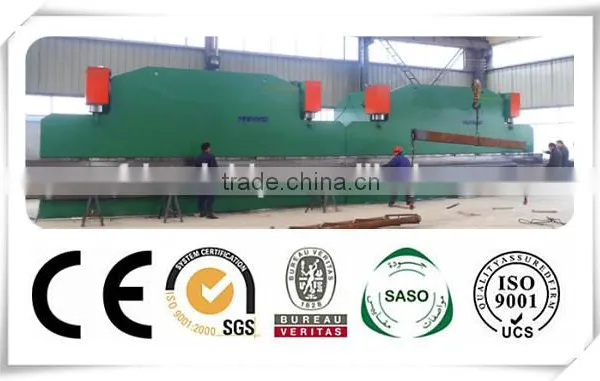

This machine was combined by two sets of 200 tons press brake. Tandem achieve synchronization working, single machine was combined by worktable ram and right and left wall board.wall board adopt assemble structure due to the transportation.the rack has enough rigidity, two cylinders install to the right and left wall board, under the effect of electric operation system, drive the slider running down. On slide there is upper dies, when upper and lower dies touch work-pieces, system raise pressure, form the work-pieces. Use different dies, under different bending, it can get the different types of work-pieces. The quality is reliable and stable.
