1. Street poles production line equipment
This production line is the most economical configuration, with high efficiency and reliable quality, they can let users make raw materials to rough poles without cooperation.
Street poles production line equipment (in process) include:
- ZDW43J-6*1800 Simple decoiler machine
- ZQ11-6*2400*14000 Steel plates diagonally shearing machine
- WE67Y-200/7000 Tandem press brake machine
- HFH320*6-14000 Automatic welding machine
- W31Y-600*10 Steel tubes straightened machine
The above equipment can order according to your requirement and producing. Please consult to us if you don’t understand, we can be your best staff officer with sincere heart, ensure of your mistake buying. We will do our best to let your make the best use.
2. Processing flow
- Coil feeding & processing
- Steel plates diagonally shear to trapezoidal type
- Plates bending on press brake
- Transfer bended poles to submerged arc welding machine
- Straighten steel tube
- Manual welding flanges and door lights
- Sand blast
- Spraying galvanization (according to the request)
The area of workshop: it need about 60000*18000mm two or three plants without storage area and welding area. We can design the plant according to the users actual sizes, to ensure the operating production line. It need the power with about 100 kilowatt.

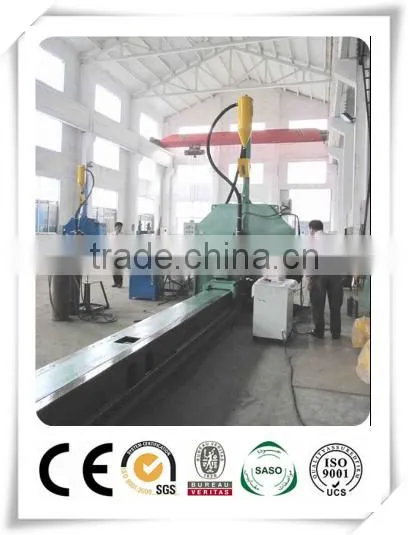

HFH320*6-14000 Automatic welding machine
(Video Link: http://youtu.be/91nWqDEtadk)
a. Main technology parameter
No. |
Item |
Specification |
|
1 |
Welding seam length |
≤12000mm |
|
2 |
Maximum material thickness |
6mm |
|
3 |
Main header size |
1500*480*1645mm |
|
4 |
Worktable size |
15500*400*480mm |
|
5 |
Maximum steel tube diameter |
φ320mm |
|
6 |
Maximum steel tube diameter |
φ60mm |
|
7 |
Welding current |
630A |
|
8 |
Driven motor |
YCT160-4B, 3kw |
|
9 |
Oil pump motor |
Y2100Ll2-4, 3kw |
|
10 |
Recovery motor |
Y90L-2, 2.2kw |
|
11 |
Gear pump |
CBN-E306, 25ml/r |
|
12 |
Maximum pressure system |
20Mpa |
|
13 |
System working pressure |
≤5Mpa |
|
|
14 |
Size |
L |
33000mm |
W |
1600mm |
||
H |
1650mm |
||
15 |
Weight |
5500kg |
|
b. Simple introduction
This machine composed by main machine head, tractive body and feeding shelf. Tractive body was moved by collet in small vehicle nipping the steel pole’s collet. When the small vehicle moved,drived steel pole, from small collet to big collet, regularity moved.the big side of the steel pole was hold by feeding vehicle, force automatic sewing from head of machine to steerable wheel. At one time, the welding machine starts welding, this machine adopt multiple wire submerged arc welding, solder was reclaimed automatic. Welding line was symmetrical and slinky. It has strong filter, forming one time, and be with high welding efficiency. The speed of welding achieve 2 to 3 meters per minutes, it is about 3 times of the gas welding. The cost of the welding is lower than gas weldong, it is with speedy welding, high efficiency ,and lowest price in china light poles industry now.
