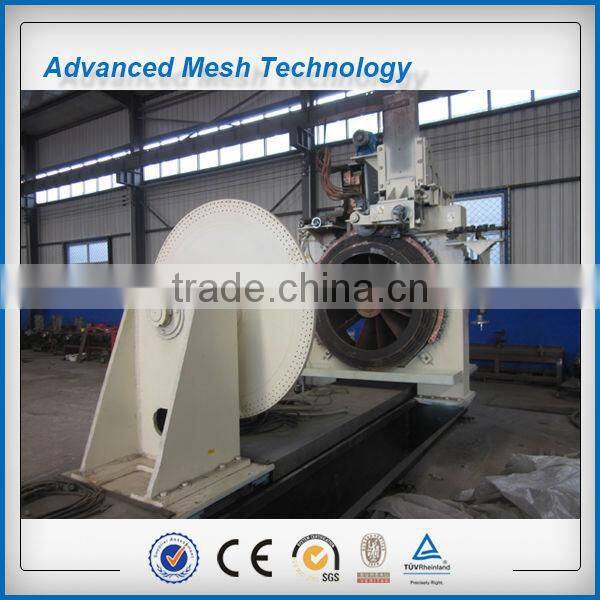

filter mesh welding equipment
Features:
Our CNC Water Well Screen Mesh Welding Machine have the strongpoint of low noise, low enery consumption and stable function. The electrical control system is famous GUANGSHU lathe system, main axis and feeding axis are both adopt Panasonic Brand AC power servo motor and drivers. Slot size adopt NC servo motor to drive ball guide screw, ball guide screw and dragline wire plate are attached to linear guideway, glide according instructions, slot size could be adjusted randomly.
Machine parameters’ adjusted and displayed visual and convenient, simple and easy to do. Ball guide screw and Linear guidewayboth adopt import famous brand product.
Usage: welding wire warpped screen pipe, water filtration mesh, water well screen mesh
Machine function and parameters:
Machine’s work mode: Automatic and Adjustable
a.In automatic mode, input correct variable value then the machine can work automatic cycle.
b.In adjustable mode, every parts movement of machine could be adjustable, like a manual mode.
Main parameters:
Model |
φ50-200mm |
φ100-400mm |
φ400-1200mm |
Power |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
Rated capacity |
100 KVA |
100 KVA |
100 KVA |
Slot distance |
≥0.1mm |
≥0.2mm |
≥0.25mm |
Canister length |
≤6000mm |
≤6000mm |
≤4000mm |
Weld material |
Stainless Steel Wire & Low Carbon Steel Wire |
||
V-wire size |
1.8-5.0mm |
1.8-5.0mm |
1.8-5.0mm |
Support rod size |
1.8-5.0mm |
1.8-5.0mm |
1.8-5.0mm |
Overall dimension |
13000*1500*3300mm |
13000*1600*3400mm |
11000*2100*3800mm |
Weight |
10000KGS |
11000KGS |
13000KGS |
Contact me, i will reply you soon.
Jeff Yang
Skype: jeffyang1125
Mob./whatsapp: +86-13831875295
