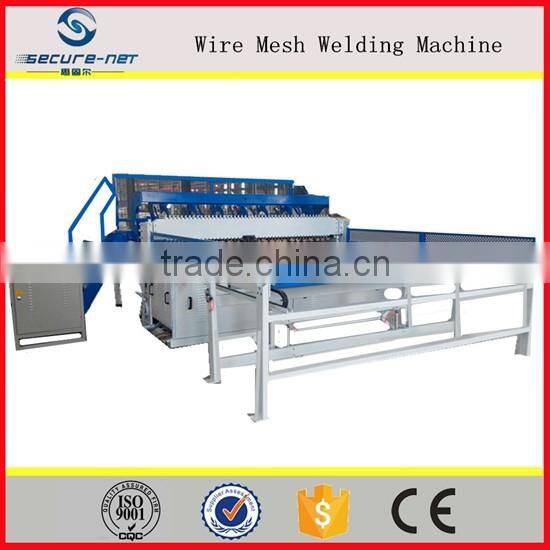

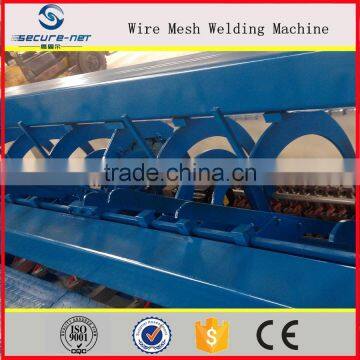

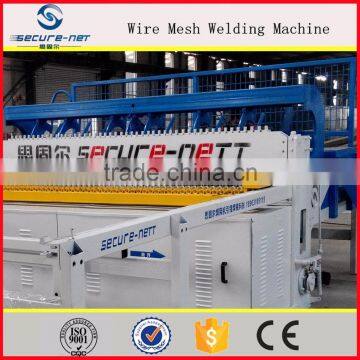

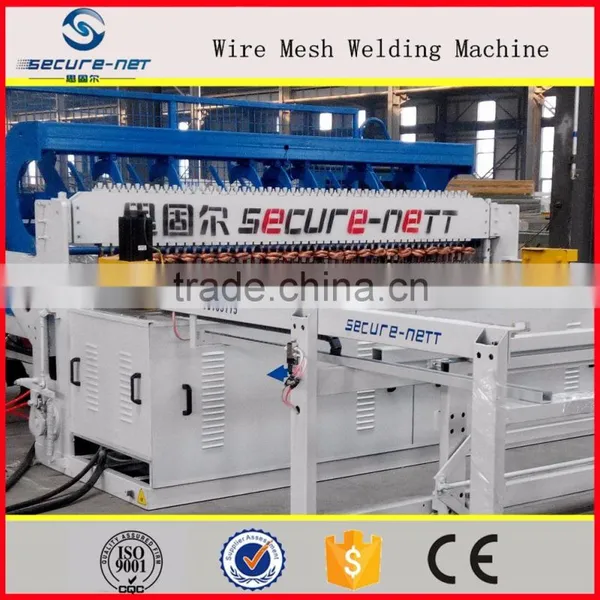

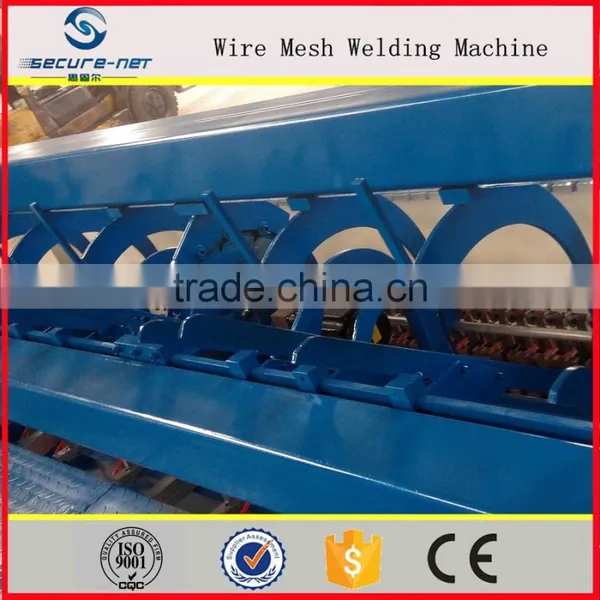

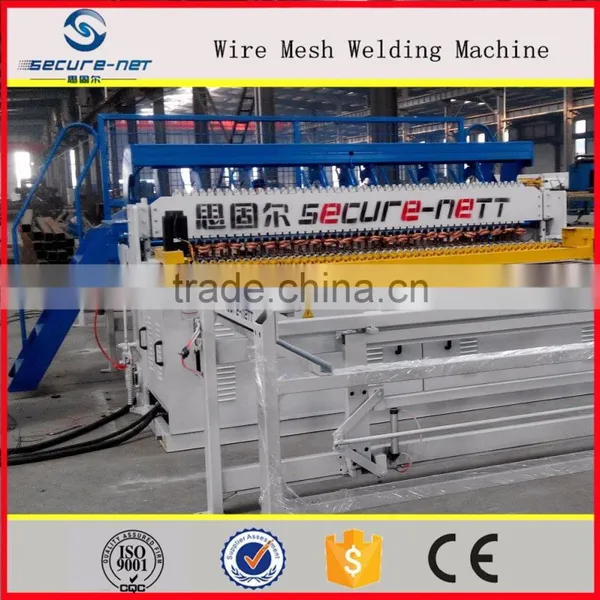

Automatic welding machine
Automatic welding machine performence characteristics:
Automatic welding machine adopts synchronous control technique, welding time and sub-control welding is composed of PLC digital programming system, touch screen and keyboard input panel two forms, so automatic welding machine operation more intelligent , rationalization. the control of the biggest advantage is: more than 30kinds of diffrent mesh size canbe welded on the same panel.Automatic welding machine using new high efficiency welding transformer, expand the scope of welding wire diameter.Easy operation, high flexibility, production is several times of artificial single spot welding machine.
Automatic welding machine main parameter:
Wire diameter:2.5-5mm
Welding aperture:50*50-300*300mm
Welding width:2500mm
Welding electrodes:48
Welding speed:0-60times/min
Rated voltage:AC380V50HZ
Power:800KVA
Weight:4.5T
Overall dimension:12*3.3*1.9(m)
Automatic welding machine main usage:

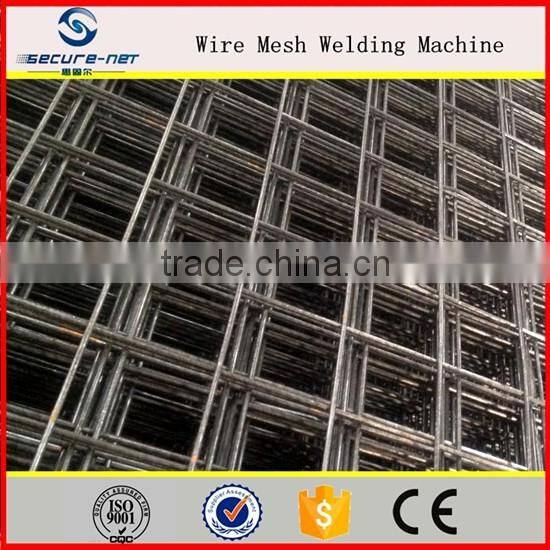

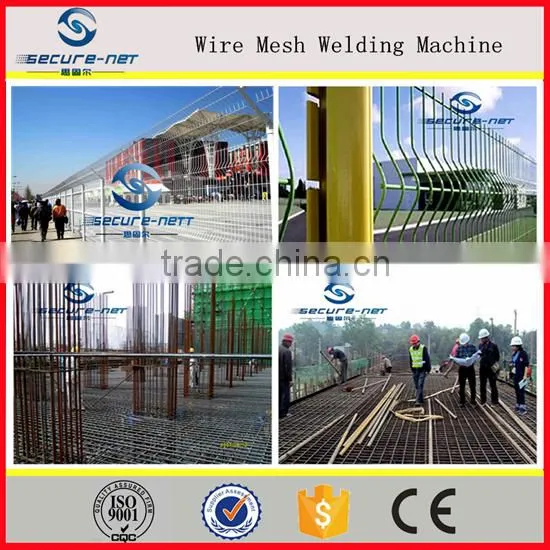

Automatic welding machine for railway,highway,maintain,building meshes for bridge,road and storey and mine supporting meshes.
Automatic welding machine auxiliary machine:

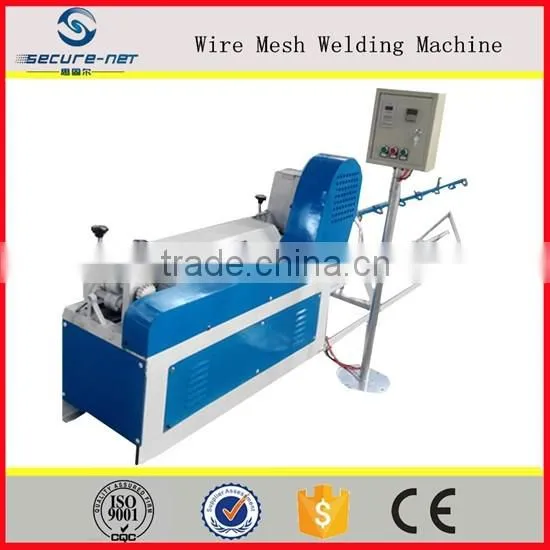

1.wire straightening and cutting machine
2.wire tray

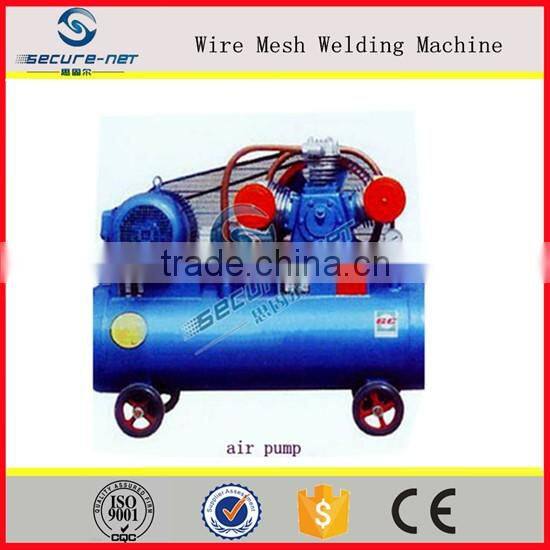

3.air pump
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
Automatic welding machine
1.We are professional wire mesh machine manufacture with 15 years experiences in china.
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.
2.Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, construction mesh welding machine, Automatic welding machine, Reinforcing mesh welding machine,Razor barbed wire machine,fence mesh welding machine and related accessories.
Pictures show:
Our office
Our factory
Work shop
Certificate
Welcome to visit our office and factory .
If you have any problem ,let me know,will help you try my best.
