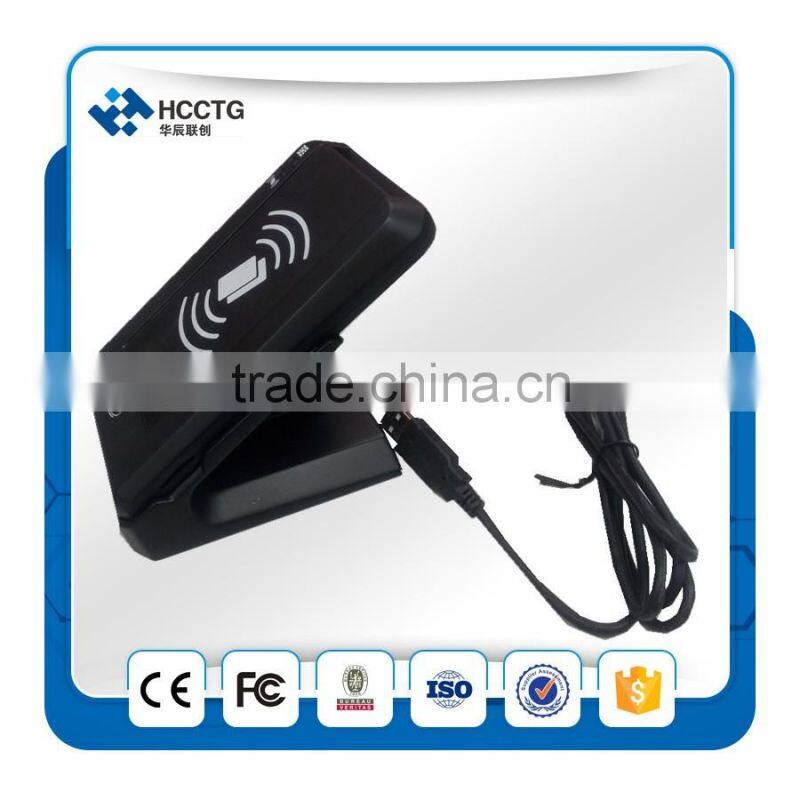

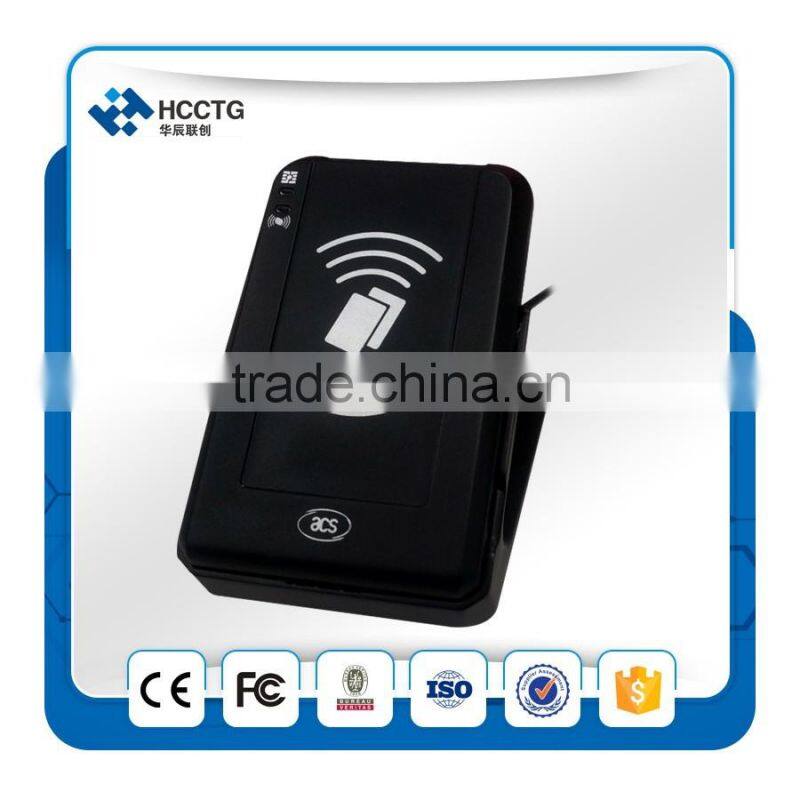

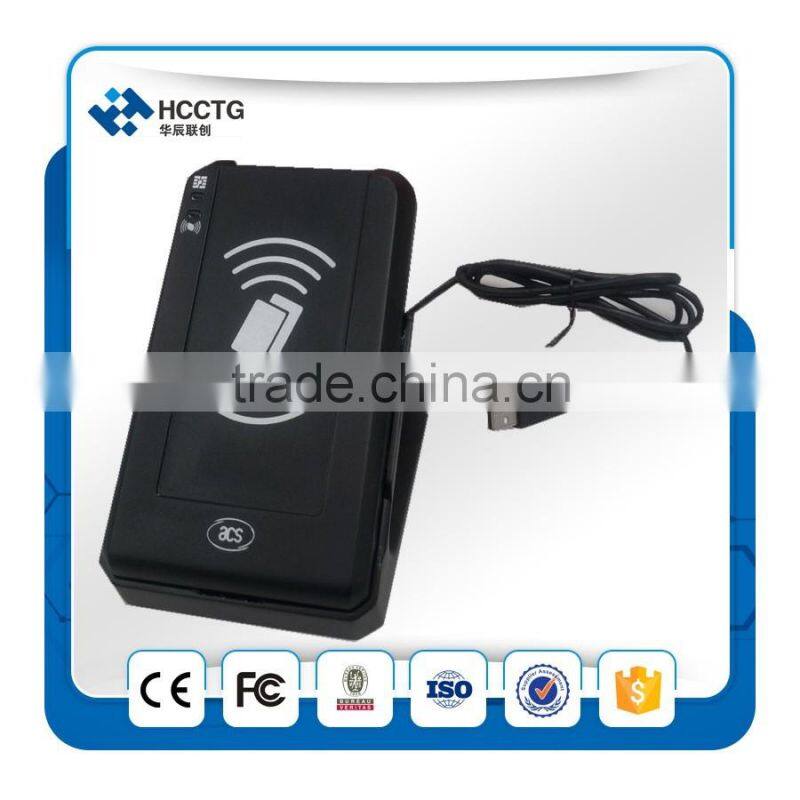

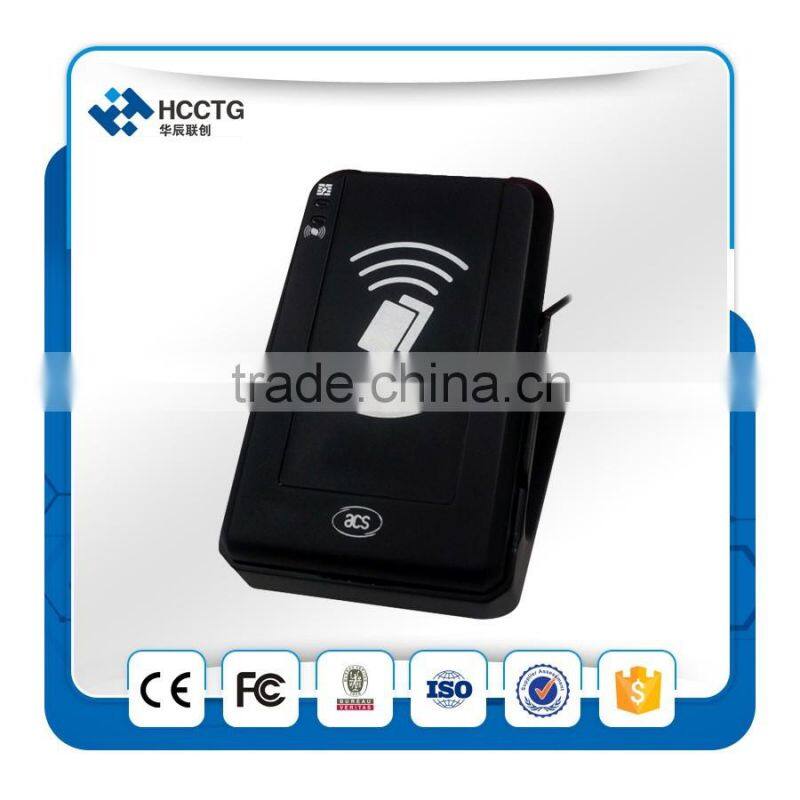

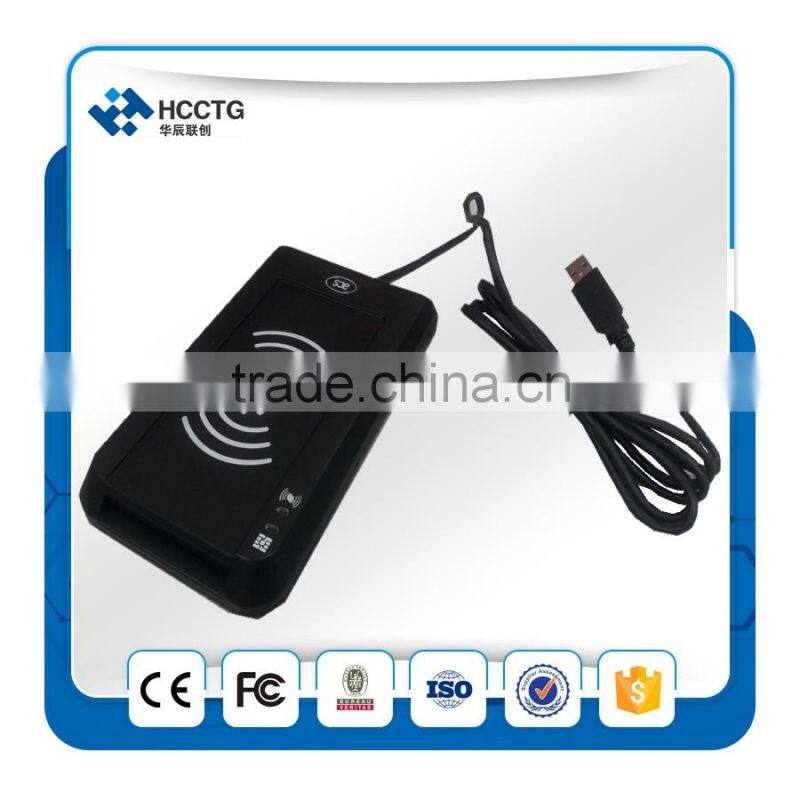

HOT!common Access/emv Chip Smart Card Reader and Writer Best Buy-ACR1281-K1

Universal Serial Bus Interface

Source

From USB

Speed

12 Mbps (full speed)

Supply Voltage

Regulated 5V DC

Supply current

200mA

Contactless Smart Card Interface

Standard

ISO 14443 A & B Parts 1-4

Protocol

ISO 14443 T=CL for ISO 14443-4 compliant cards and T=CL Emulation for Mifare series

Smart card read/ write speed

106 kbps,212 kbps,424kbps,848kbps

Operation frequency

13.56 MHZ

Operating distance

Up to 50mm(depends on card type)

Antenna size

76mm X 76mm

Contact Smart Card Interface

Standard

ISO 7816 1/2/3 ,Class A,B,C(5V,3V,1.8V),T=0 and T=1

Supply current

Max.60 mA

Smart card read/write speed

9.6-344bps

Short circuit protection

+5V/GND on all pins

CLK frequency

4.80 MHz

Card connector

Landing

Card insertion cycles

Min.200,000

SAM Card Interface

Standard

ISO 7816

Protocol

T=0 and T=1 protocol

Bulti-in Peripherals

Buzzer

Monotone

LEDS

Red and Green

Casing

Dimensions

145.0mm(L)X90.0mm(W)X20.5mm(H)

Weight

300

Color

Black

Connecting line length

2.0m(USB)

Operation Conditions

Temperature

0-50^°C

Humidity

10%-90%

Compliance/Certifications

ISO 14443, ISO 7816 ,CE, FCC, PC/SC,CCID, CE FCC,RoHS,USB full speed

MicrosoftRWHQL Windows Vista,7,8

Application Programming Interface

Application Programming Interface

PC/SC

OS Support

Windows 2000, XP,Vista,7,8,Server 2003, Server 2008, Server 2008R2,Linux, Mac,Android^TM3.1
