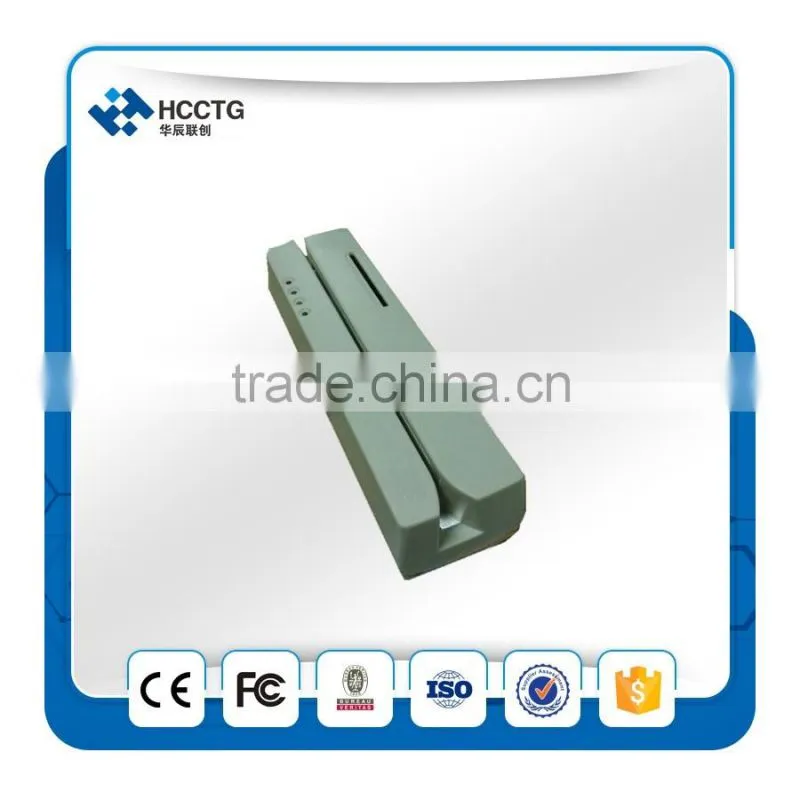

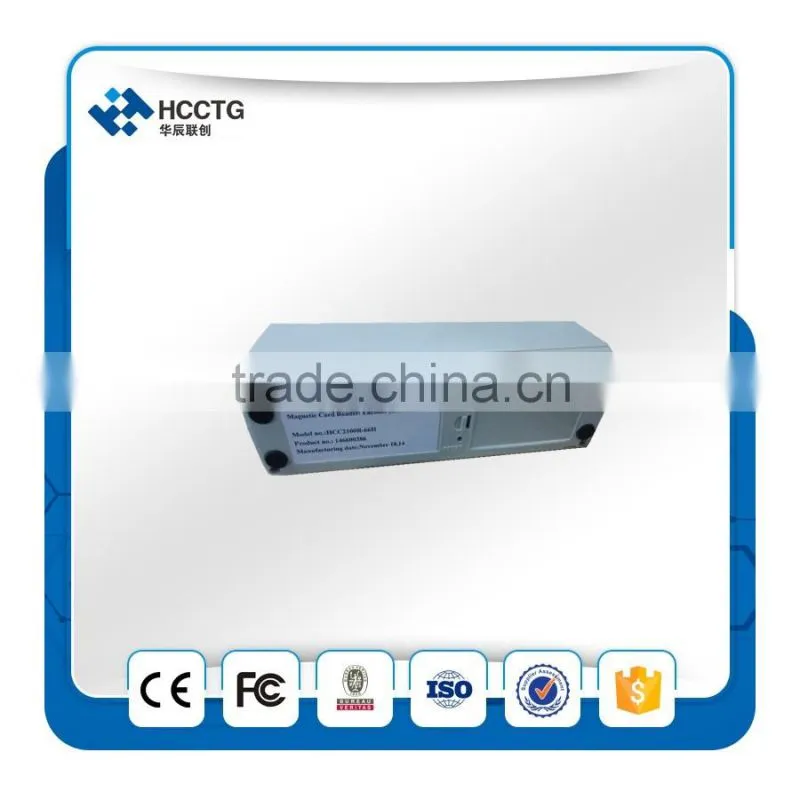

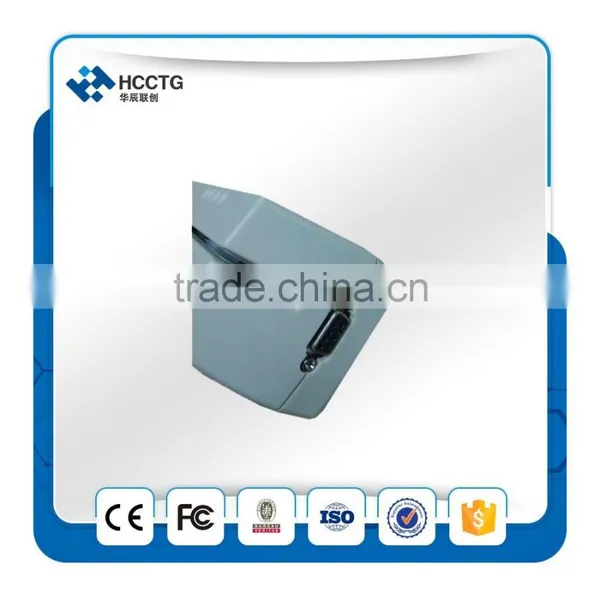

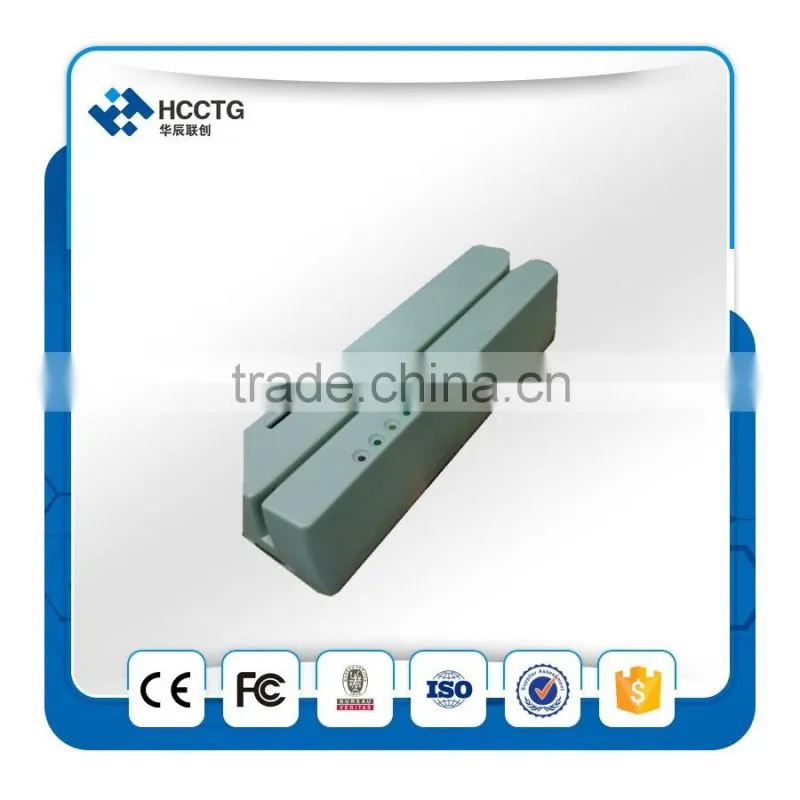

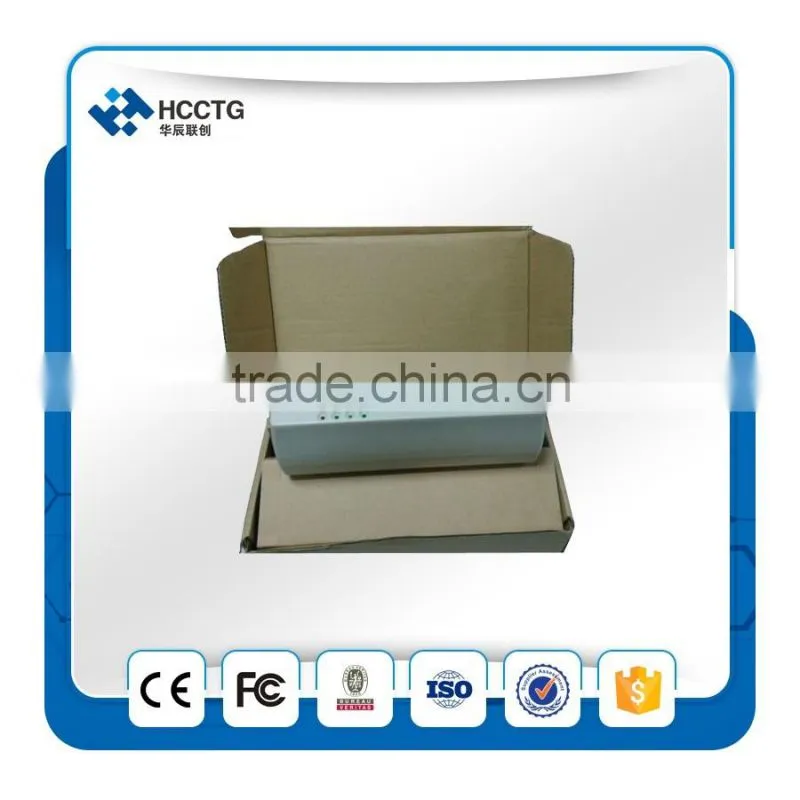

RS232 software/smallest sdk magnetic strip card reader writer- HCC2100-66H
HCC2100 Magnetic Stripe Reader/Writer provides reliable magnetic stripe reading/writing and Smart card reader/writer solution for business, retail, security and other related systems, it offer user a card reader/writer solution that will complement many applications.
Features
l Compact size
l Manual swipe to read/write data with a single pass
l Read/write magnetic stripe card or passbook in both ISO & IBM format _ Read/write up to triple tracks (track 1&2 or track 2&3 or 1&2&3)
IC card module at option
l Tri-color LED & beeper for power on/read/write operations
PIN pad port & two extra serial port expander available
l Well designed software/hardware and imported key components ensure the whole excellent
performance
l Module structure technology applied to ensure high efficiency and reliability
Specifications
Card standards |
IBM, ISO, DIN, ANSI |
Manual feeding speed |
20~120mm/sec |
Writing density |
1st track: 210 BPI (max 76 characters) |
2nd track: 75 BPI/210 BPI (max 36/104 characters) | |
3rd track: 210 BPI (max 104 characters) | |
Smart card reader module(Main/Sub) |
Asynchronous Protocol for kinds of memory logic cards |
Synchronous Protocol for various of smart cards | |
Interface |
RS232, 2400/4800/9600 bps at option |
Reliability |
MTBF > 20000H, MTTR < 30 MIN |
Magnetic head |
Min. 300,000 swipes |
Lifetime |
IC card: min100,000 insertions |
SAM card: min 5,000 times | |
Power supply |
DC+9V 750mA / +5V 320mA by host computer |
Working conditions |
0~40℃ 15%~85% RH non-condensing |
Dimensions (L ·W ·H) |
210mm ·60mm ·60mm |
Cable length |
2m |
Weight |
1.4Kg |
Housing |
Plastic PC, Ivory color |
