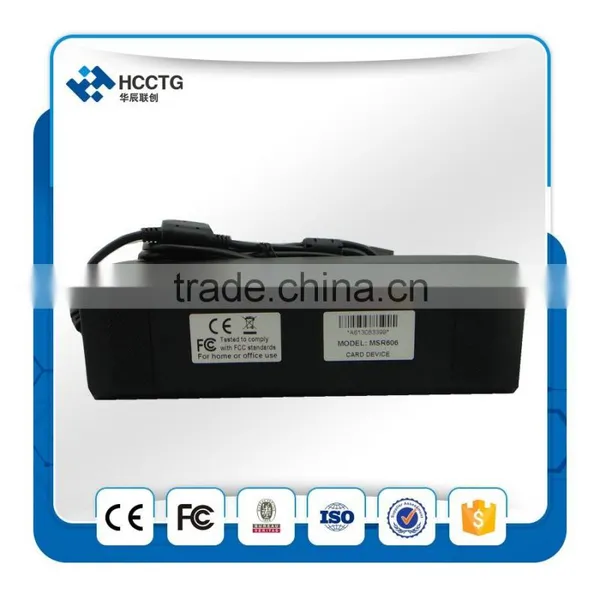

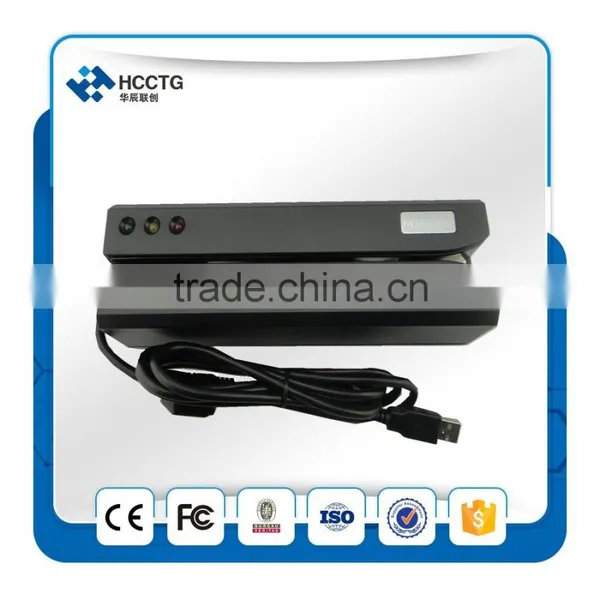

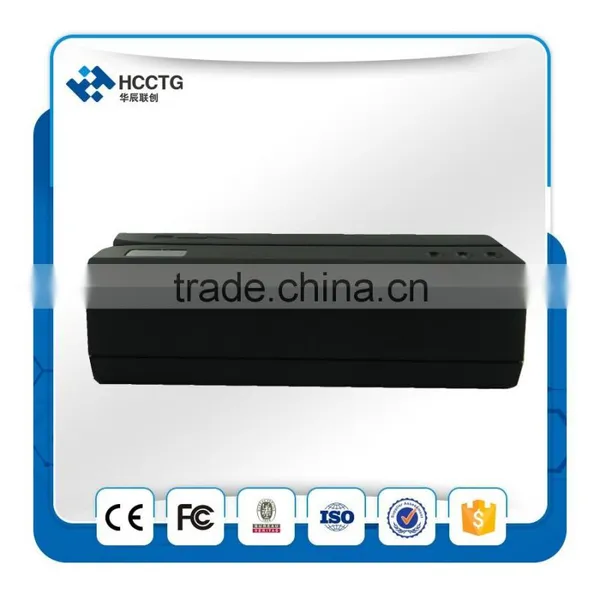

manual MSR magnetic insert card reader sdk/writer software--MS606
General
It is ideal for access control, time keeping, banking, ID recognition & verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR606 reader/writer.
The MSR606 is designed to offer a reading and writing solution for high and/or low coercivity cards that will attractively complement an existing system.
Feature
Ÿ Read/Write magnetic stripe card complied with ISO formats
Ÿ Read/Write Drivers Licenses
Ÿ Read/Write High & Low Coercivity (300~4000 Oe)
Ÿ LED provides operational status
Ÿ Writes any track combinations of 210 and/or 75 bpi data density
Ÿ Program software for Windows 98/Me/XP /Vista
Specification
Power Reference | |||
Power requirements |
+24VDC +/- 5% |
||
Consumption |
Typical 350mA Max. 600mA plus for each writing track |
||

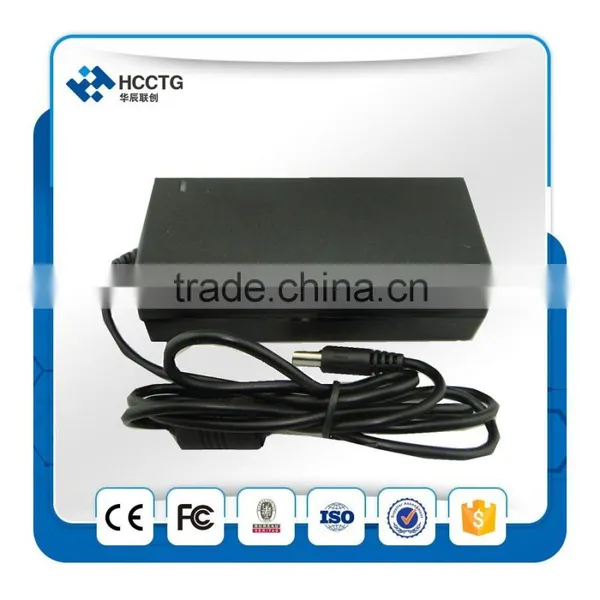

Power supply |
External switching power 24V/2.5A |
||
Interface |
Serial interface or USB |
||
Ripple |
50mVp-p or less |
||
Dielectric strength |
500 VDC for 1 minute |
||
Performance | |||
Read card |
Track1 |
Track2 |
Track3 |
Bit per density |
210 bpi |
75/210bpi |
210 bpi |
Coercive force |
Read/write 300-4000 oe Mag.card |
||
Card thickness |
0.76-1.2mm |
||
Read speed |
STD card |
Jitter +/-15% |
Amp. 60% |
|
5-55ips |
5-50ips |
5-50ips |
Write speed |
5-30ips |
||
Write jitter |
Interval < +/- 10%, Sub-interval < +/- 12% |
||
Error rate |
Read < 0.5% |
||
|
Write < 0.8% |
||
Head life |
Min. 1000K swipes for both read/write head |
||
Physics | |||
Body material |
ABS 94V-0 |
||
Weight |
Approx. 1.4kg |
||
Dimension |
212L x 64W x 63H mm |
||
Swipe |
Manual, single direction |
||
Environment | |||
Operation |
-10 to 55oC, 10 to 85% humidity |
||
Storage |
-30 to 70oC, 10 to 90% humidity |
||
Safety Approval | |||
Certificate |
FCC , CE , UL, cUL,ROHS |
||
