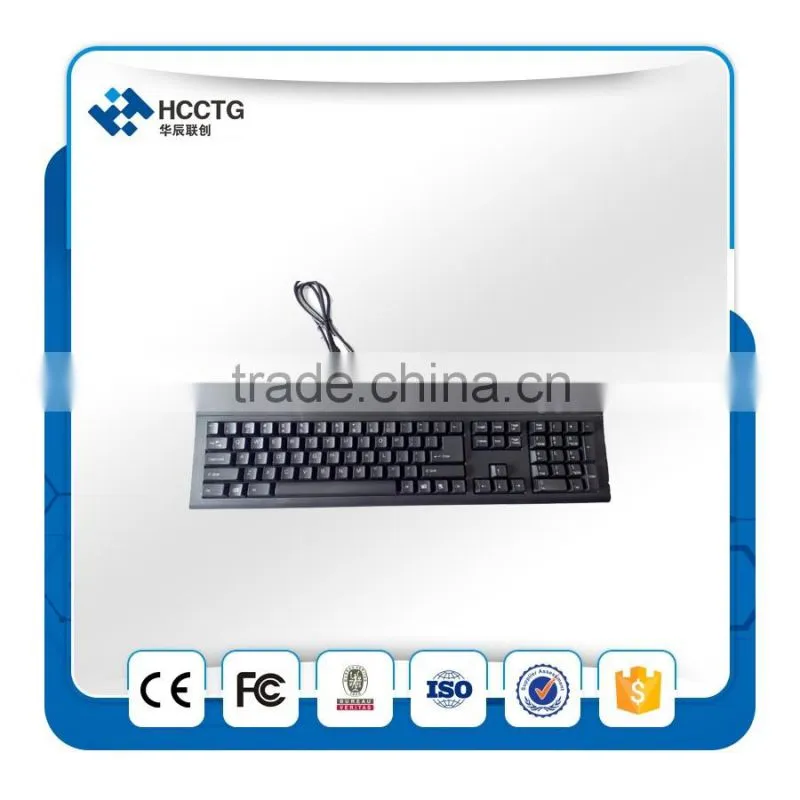

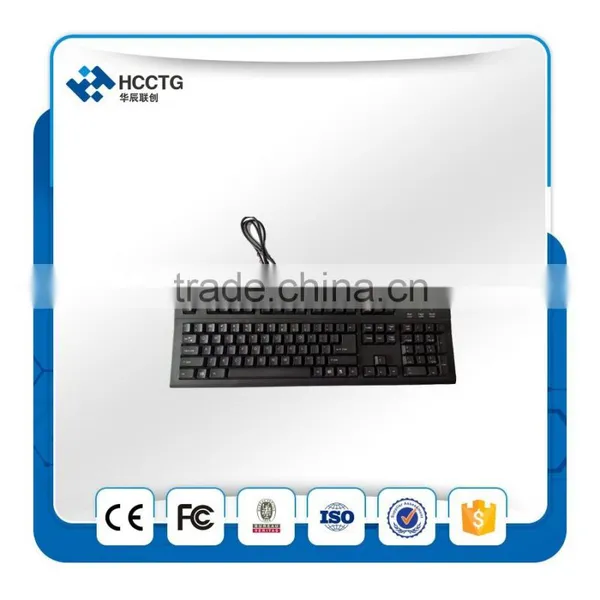

mechanical mini keyboard for smartphone/with smart card reader-HCC150
Keyboard Feature
Ÿ With 104 keys based on Gold Cross point technology and tactile feeling
Ÿ Two different key actions (soft contact and key click)
Ÿ Laser-engraved keycap symbols or high quality UV silk screen printed keycap symbols
Ÿ Operating life cycle of individual keys:
Soft contact mode: 50 million strokes
Key click mode: 20 million strokes
Ÿ Damaged keys can be easily replaced and hence save the replacement cost
Ÿ With internal metal plate for key fixation, the protection against ESD is increased
Ÿ Can be upgraded to programmable version
Ÿ USB, PS/2 interfaces are available
Magnetic Card Reader Feature
Ÿ Comply with ISO 7812, IBM standards, American Driving License
Ÿ Support multi-country code settings
Ÿ Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence
Ÿ Track 1: 210BPI with max 76 characters
Ÿ Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters
Ÿ Track 3: 210BPI with max 107 characters
Ÿ Card swipe speed: 10 to 100 cm/s
Ÿ 500,000 swipe cycles
Ÿ Available Configuration
n Dual Track: Track 1 & 2 or Track 2 & 3
n Three Track: Track 1, 2 & 3
Smart Card Reader Feature
Ÿ T=1, T=0 protocol support; Memory card support through SCM MCARD API
Ÿ Communication speed up to 344,105 bps (PPS, FI parameter)
Ÿ Frequency up to 12 MHz (PPS, DI parameter)
Ÿ Support ISO 7816 Class A and AB smart card
Ÿ Sliding contact connector; Certified for 200,000 insertions
Ÿ Support PC/SC, CT-API (thru wrapper on top of PC/SC); OCF upon request
Ÿ Full speed USB (12Mbps); Bus powered device; CCID compliant
Dimension
470(L)* 190(H) * 45(W) mm
Model
150x1-x2x3x4
Type |
X1 |
Interface |
X2 |
Magnetic Tracks |
X3 |
IC card module |
X4 |
Programmable |
|
150 (Keyboard, with MSR) |
U |
USB port |
4 |
1&2 tracks |
0 |
N |
0 |
N |
K |
PS/2 port |
5 |
2&3 tracks |
1 |
Y |
1 |
Y |
|
|
|
6 |
1&2&3 tracks |
|
|
|
|
|
|
|
|
|
|
|
|
|
