atm pinpad shield/kiosk/make payment device/paypal/bill payment model-HCC950
Security Pinpad-HCC950 General
HCC 950 security pin pad delivers fully reliable and highly secure debit transaction,
connects easily with various terminals, also provides additional functions such as voice-hint module,LCD module and DES encryption module, serve as professional PIN input device for POS, banks, retail and securities markets.
Security Pinpad-HCC950 Feature
Ÿ Equipped with highly secure PIN shield
Ÿ Support DUKPT or Master/Session key management
Ÿ Comply with international security standards and payment scheme specifications
Ÿ Compatible with kindred products such as IBM4778
Ÿ Applicable to many operating systems: UNIX, WINDOWS, NT and OS/2,etc.
Ÿ Easy-to-read LCD display
Ÿ Small table-top footprint to save counter space
Ÿ High-quality conductive rubber button
Ÿ Support different security key entry software
Ÿ Provide audio and visual key entry response
Ÿ Simple user-friendly operation
Ÿ Vandal resistant: self-destroyed against violence
Ÿ Can be further user-customized
Security Pinpad-HCC950 Specification
Display |
2-line/16 characters alphanumeric or graphical LCD display |
Keypad |
15 keys, ergonomically designed, |
Communication interface |
RS232, standard keyboard, TTL connection, 300~19,200 bps at option, 1200BPS default, asynchronous |
Power supply |
DC 6-14V, 30mA maximum |
Connector |

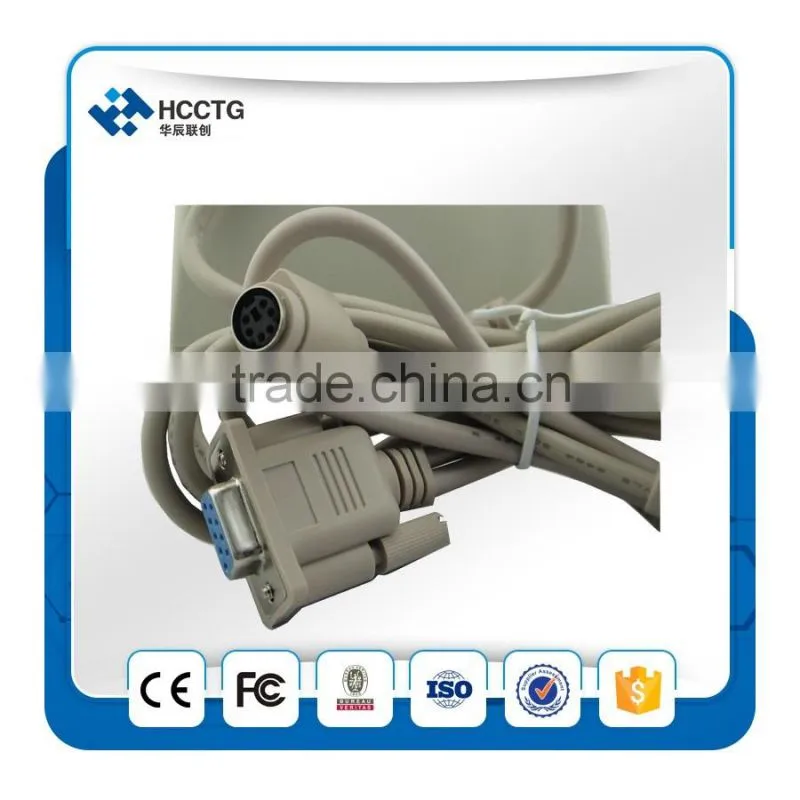

DB9 or customize |
Security |
Software controlled DES & DUKPT key management |
Reliability |
> 5 x 106 times input (per each key) |
Working temperature |
0~40℃ |
Humidity |
15%~85% RH non-condensing |
Dimensions (L*W*H) |
152mm*102*93mm |
Weight |
350g (include wiring) |
Housing |
Plastic PC, Ivory color |
Model Description 950x1-x2-x3-x4
Type |
X1 |
Interface |
X2 |
DES/3DES Module |
X3 |
LCD Module |
X4 |
Sound Module |
|
950 Pin Pad, with Conductive Rubber key |
R |
RS232 Series port |
0 |
No |
0 |
No |
0 |
No |
B |
PS/2 |
1 |
Yes |
1 |
Yes |
1 |
Yes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 8 |
IBM 4778 Compatible |
|||||||
For example
HCC950 R 111 – Conductive Rubber key Pin pad, with RS232 series interface, DES/3DES encryption module, LCD module, Sound module. HCC950-78 – IBM 4778 Compatible
