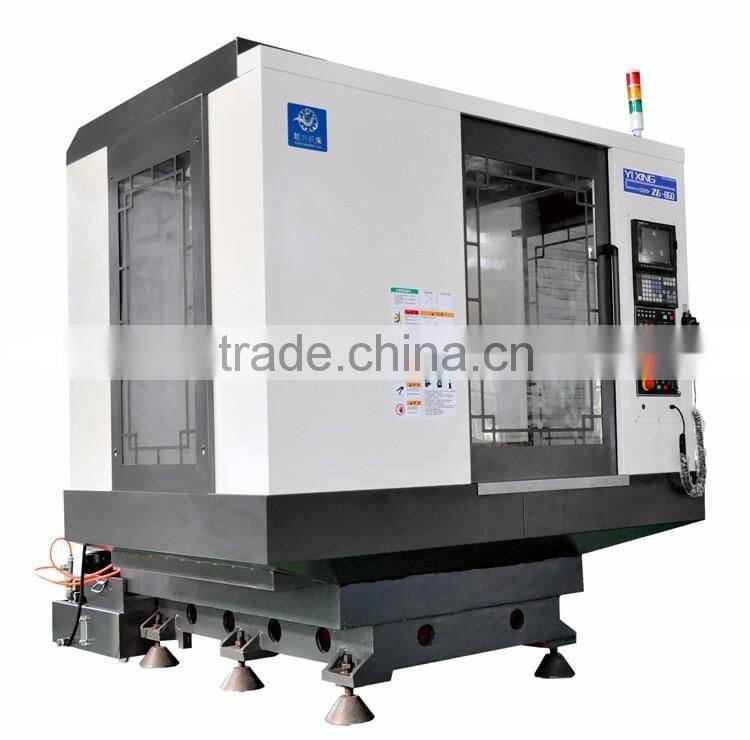

Max Movement 800/500/500 High Quality 5 Axis Vertical CNC Turning Center For Aluminum Alloy
US$ 48,000 - 53,000
/ Set
1 Set(Min. Order)
- shanghai Shenzhen Hubei Ningbo
- T/T Credit Card
You May Like
-
Cheapest Price High Speed 50m/min Linkage Small VMC850 CNC Machining Price
-
Hot Sales Mitsubishi M70v Control System Vmc-850 CNC Machining Center With High Quality
-
China Hot Sales VCM540 Vertical Machining Center
-
Most Popular CNC Machining Center CNC Lathe Taiwan Type Vertical Machining Center Vmc-850
-
High Quality Cnc Machine Center VMC540 Precision High Spindles Speed Small Vertical CNC Machining Center
-
5-axis BS205 Vertical Cnc Lathe Cnc Lathe Machine Specification
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Shanghai, China | Brand Name | yixing | |
| Model Number | VCM850 | Voltage | 220V/380V | |
| Power(W) | 7.5KW | Dimension(L*W*H) | 2450*2230*2612 | |
| Weight | 3000kg | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Max Movement 800/500/500 High Quality 5 Axis Vertical CNC Turning Center For Aluminum Alloy
1, CNC turning center adopting the high-speed&high-precision spindle(12000/24000RPM),
2, CNC turning center ZG850 Machine Center is suit for processing auto parts and communication aluminium alloy cavity.
3, CNC turning center drilling and tapping is ultra high-speed/high performance/high-precision.
4, CNC turning center tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 50M/MIN.
5, CNC turning center long traverse length,satisfies different processing needs on a large scale.
| Model ZG850 CNC turning center Specifications | |||
| Parts | items | unit | drilling and tapping center-ZG850 |
| Workbench | Size(L*W) | mm | 500*900 |
| Workbench load | kg | 350kg(even load) | |
| Spindle end to workbench face | mm | 150-650 | |
| Spindle | Spindle speed | r/min | 12000/24000 |
| Spindle motor | kW | 5.5/7.5kW | |
| Hole conical degree | ISO | #30(BT30) | |
| Traverse | Travel X/Y/Z | mm | 800/500/500 |
| Rapid traverse speed X/Y/Z | m/min | 50/50/50 | |
| Cutting feed speed X/Y/Z | m/min | 20/20/20 | |
| Precision | Positioning accuracy | mm | 0.005/300 |
| Repeated positioning accuracy | mm | ±0.003 | |
| ATC | tool capacity | ea | 21 |
| Max.tool Length | mm | 170 | |
| Max.tool dia | mm | 80 | |
| Max tools weight | kg | 3 | |
| Tool to tool(T-T) | sec | 1 | |
| Power source | Power supply | kVA | 16 |
| Air source pressure | kgf/cm²(MPa) | 6(0.6) | |
| Motor | Dimension(L*W) | mm | L2200*W2700 |
| Dimension(H) | mm | 3000 | |
| Net weight | kg | 4000 | |
| Cooling | Tank volume | L | 220 |
| Cooling pump flow | L/min | 60 | |
| Congtrol panel | Spec | MITSUBISHI/M70VB | |
| Screen | 8.4"Color TFT LCD | ||
| Storage of programme | KB | 500 | |
Max Movement 800/500/500 High Quality 5 Axis Vertical CNC Turning Center For Aluminum Alloy
1, CNC turning center ZG850 using the original disc magazine, tool change time of just one second, reducing non-cutting time, improve the processing efficiency .
2. CNC turning center by Renishaw laser interferometer, ballbar correction, so that precise positioning of the machine, repeat positioning accuracy for optimum stability.
3. CNC turning center this model is particularly suitable for aluminum, copper alloy, resin and other materials as well as drilling and tapping cool cutting, face milling processes .
4. CNC turning center operating system has high reliability, high-speed mobile all axes of 24m / min or more, the unique structure of the collet opening and closing, freely overlap processing, improve processing efficiency, reduce business costs .
CNC TURNING CENTER GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province –Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
